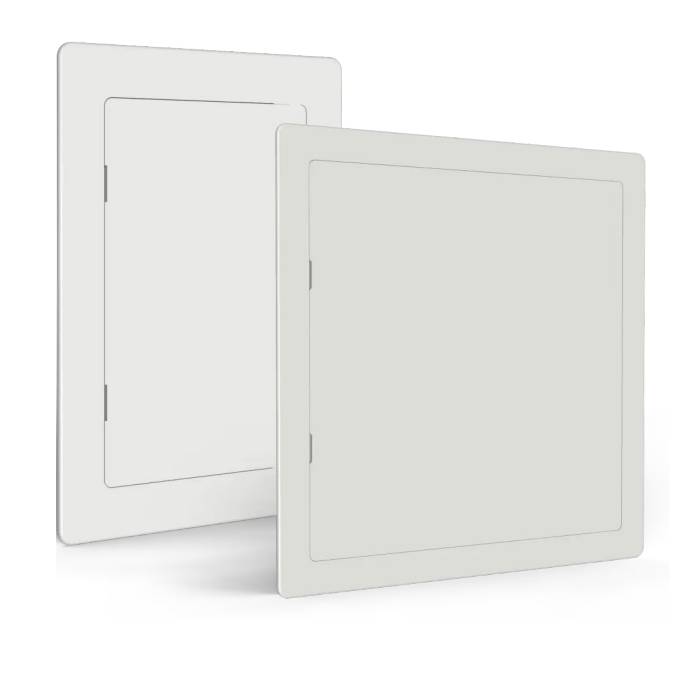

Plastic Access Panels
Verified by manufacturer 20 hours ago
Low-cost, multi-functional plastic access panels for concealed building services in domestic or residential construction.
Application
Used to gain access to concealed building services such as stop cock valves, plumbing, electrical, HVAC, or duct systems. Suitable for domestic or residential construction, new-build applications, retrofitting after remedial work, repair panels to cover holes for stop tap access, visible designed detail for rodding eye points, and concealed flue access.
Description
A simple to fit, low-cost solution for access to concealed building services including stop cock valves, plumbing, electrical and general inspection for HVAC or duct systems.
Features and benefits:
Features and benefits:
- Economic, plastic access panels.
- Simple and easy fitting.
- Fitted using proprietary building adhesives or screws.
- Lightweight.
- Hinged and clip fit door.
- Removable door for improved access.
- Shallow picture frame design for clean edges.
- Door easily opened with a flat head screwdriver.
- Lightly textured surface for painting if required.
General information
Color | White |
Finish | Textured |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle Square |
Length | 150 mm 200 mm 230 mm 300 mm 450 mm |
Width | 100 mm 150 mm 200 mm 300 mm 450 mm |
Height | 20 mm |
Uniclass | |
CAWS | K10/30 Metal stud K10/57 Encasement on timber framing K10/55 Encasement system (metal framing) K10/41 Wall lining system (metal furrings) K10/25 Ceiling lining on timber K10/15 Lining on timber K10/35 Wall lining system (metal framing) K10/45 Wall lining system (adhesive) K10/430 Access panels |
Specification data - Access panels
Classification data | |
Position | Ceiling-mounted. Wall-mounted. |
Size | 100 x 150 mm. Guidance for specification option:
150 x 230 mm. Guidance for specification option:
200 x 200 mm. Guidance for specification option:
300 x 300 mm. Guidance for specification option:
450 x 450 mm. Guidance for specification option:
550 x 550 mm. Guidance for specification option:
Manufacturer guidanceDepth: 20 mm. |
Frame | Exposed picture frame type. |
Panel | |
Material | ABS. |
Integral finish | Textured. |
Latch or lock type | Pivot hinge (opened with flat head screwdriver). |
Operation | Swing-down. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Literature

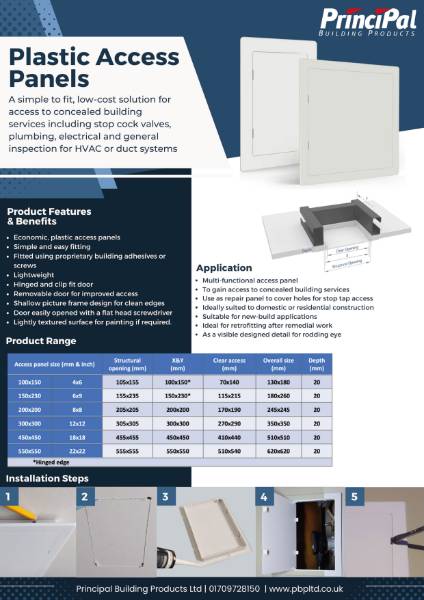

Plastic Access Panels - Data Sheet
