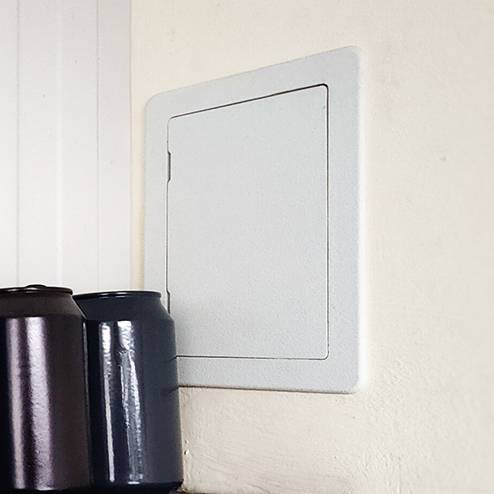

Narrow 17.5 mm profile access panel for all types of wall or ceiling constructions.

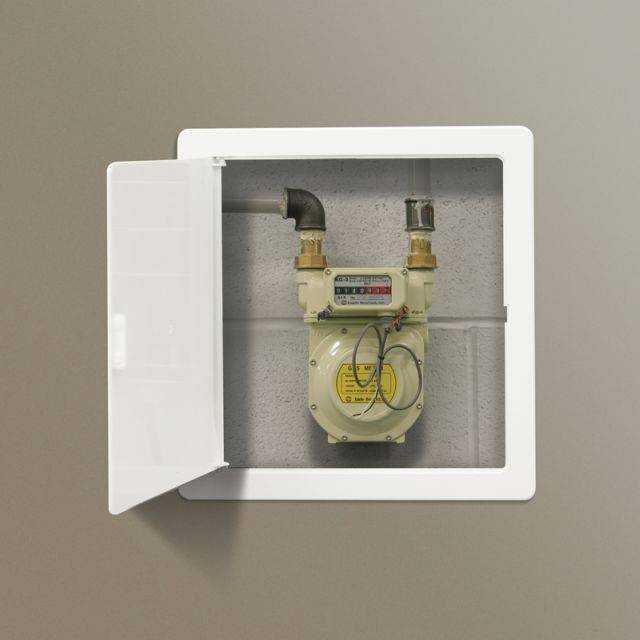

Primarily used in domestic situations for access to rodding eyes and stop cocks. Used in all types of wall or ceiling construction.
Provide a high quality low cost solution for access to building services in ceilings and walls.
Features and benefits:
Color | White Other |
Finish | Textured |
Material | Plastic |
Shape | Square Rectangle |
Length | 160 mm 230 mm 200 mm 300 mm |
Width | 110 mm 150 mm 200 mm 300 mm |
Height | 17.5 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K10/115 Metal stud partition system K10/125 Metal stud partition system K10/15 Lining on timber K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/245 Ceiling lining on timber K10/25 Ceiling lining on timber K10/30 Metal stud K10/430 Access panels K10/50 Suspended ceiling system on metal framing K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/135 Board-suspended ceiling system K40/280 Access units L20/630 Hatches |
Position | Ceiling mounted.Wall mounted. |
Size | 110 x 160 mm.150 x 150 mm.150 x 230 mm.200 x 200 mm.300 x 300 mm. |
Frame | 25 mm wide picture frame.Guidance for specification option: (to cover the cut edge of the aperture.) |
Panel | |
Material | PlasticGuidance for specification option: Moulded from UV stabilized ABS plastic. |
Integral finish | Powder coated.Guidance for specification option: Colour approximates to matt white RAL 9010 20% gloss. Consult with manufacturer for additional colour options; insert RAL colour code. |
Latch or lock type | Moulded clip shut friction lock.Guidance for specification option: With integral pivot hinge locating into grooves in the frame. |
Operation | Guidance for specification option: Use a coin or flat head screwdriver in the slot provided to prise open the door. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
