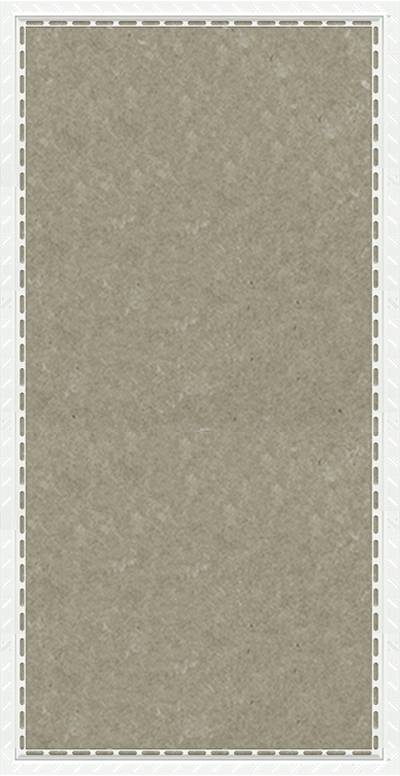

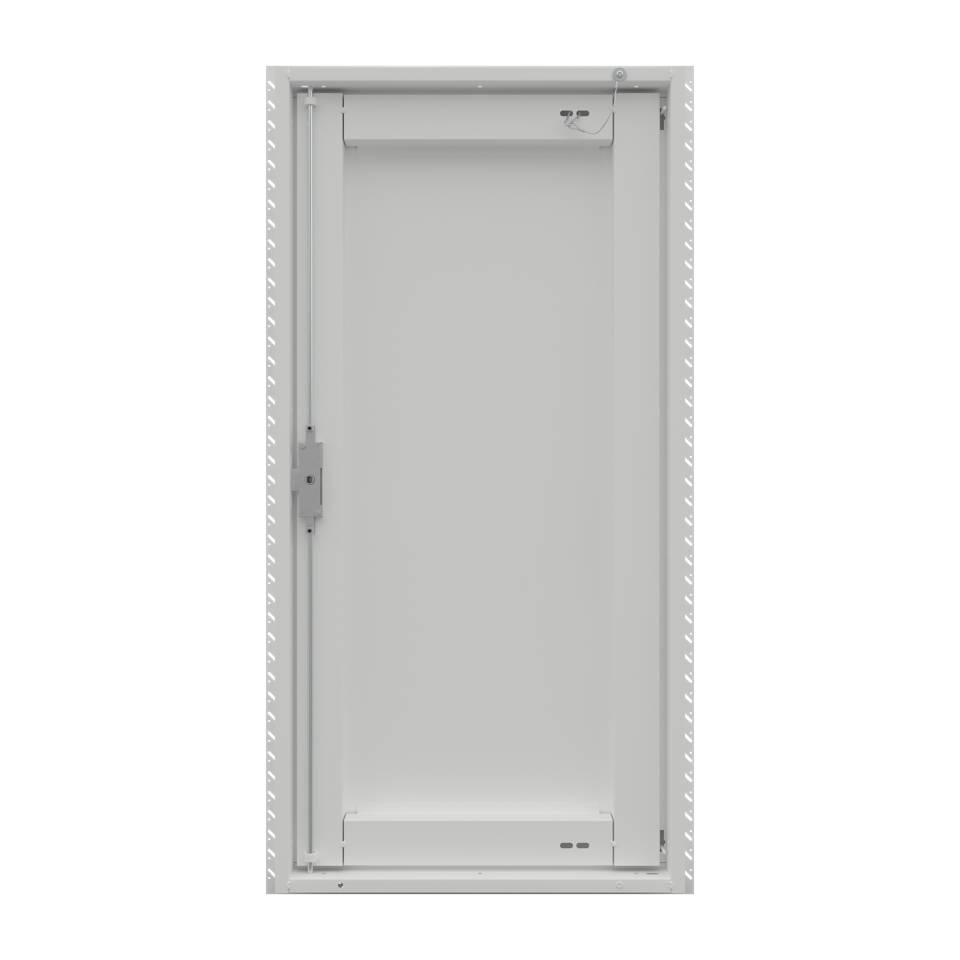

Plasterboard Riser Door with Beaded Frame - Access Panels Riser Doors

Name: Plasterboard Riser Door with Beaded Frame - Access Panels Riser Doors
Brand: Rapid Access Ltd
SKU: mXGJsA9dQB4L5E8Rzdmey8

Verified by manufacturer 19 hours ago

Riser Door Metal Door Non-Fire Rated

Rapid Access Ltd

Product certifications:

Warringtonfire
Certificate type
Warringtonfire
Certificate type
Warringtonfire
Certificate type

Pre-hung, high-performance plaster-in wall riser doorset RapidFit® Hinge System. Zintec Steel frame and door leaf.

Jump to:

BOS

+44 (0)24 7632 8811 Website

Application

Used to provide discreet access to building services and utilities concealed within wall cavities or riser shafts.

Description

R53 Range - Plasterboard faced wall access panel, supplied with the Rapid Fit hinge system, plasterboard door, beaded frame, 3 Point Locking System, single door unit, powder coated RAL 9010 30% gloss. Available non-fire rated and two hour fire rated. Available 37 dB acoustic rated. Available airtight.

Features and benefits:

RapidFit® Quick Fitting Hinge System.
One person installation.
Fire resistance available of up to two hour.
Airtight and acoustic properties.
Beaded frame as standard.
3 way lock as standard. (Other locks can be used).

Acoustic and airtight properties:

Air Pressure tested to Class 2 when tested at 300 Pa, tested in accordance with BS EN 1026: 2016.
Acoustic Rated up to 30 dB tested in accordance with BS EN ISO 10140-2:2010.
Smoke tested in accordance with BS EN 1634-3: 2004.

General information

Color	White Guidance for specification option: RAL 9010 Other Guidance for specification option: Any RAL colour.
Finish	Powder-coated
Material	Zintec steel
Shape	Rectangle Square
Length	Bespoke Guidance for specification option: Minimum and maximum size depends on the Riser Door panel type and application.
Width	Bespoke Guidance for specification option: Minimum and maximum size depends on the Riser Door panel type and application.
Height	Bespoke Guidance for specification option: Minimum and maximum size depends on the Riser Door panel type and application.
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K10/430 Access panels

SKU Code	R53-PD-BF

Specification data - Access panels

Fire performance	-
Fire resistance	None.
Position	Wall-mounted.
Size	- Manufacturer guidance Minimum Size - 300 x 300 mm Maximum Size Single Door - 2800 x 900 mm Maximum Size Double Door - 2400 x 1800 mm
Frame	Beaded frame.
Panel	-
Material	Steel.
Integral finish	Powder-coated. RAL 9010 (30% gloss).
Latch or lock type	3 Way Lock. 3 Point Euro Lock. 5 mm Bit. Key Retaining Lock. Touch Catch. Chrome Handle. Lockable Chrome Handle.
Operation	Concealed steel hinges, outward opening.

Sustainability data

Country of product manufacture	United Kingdom
Manufacturing plant location	Nuneaton, UK
Material	Zintec steel
Recyclability	Fully Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	22 %
Expected Life	Ten year
