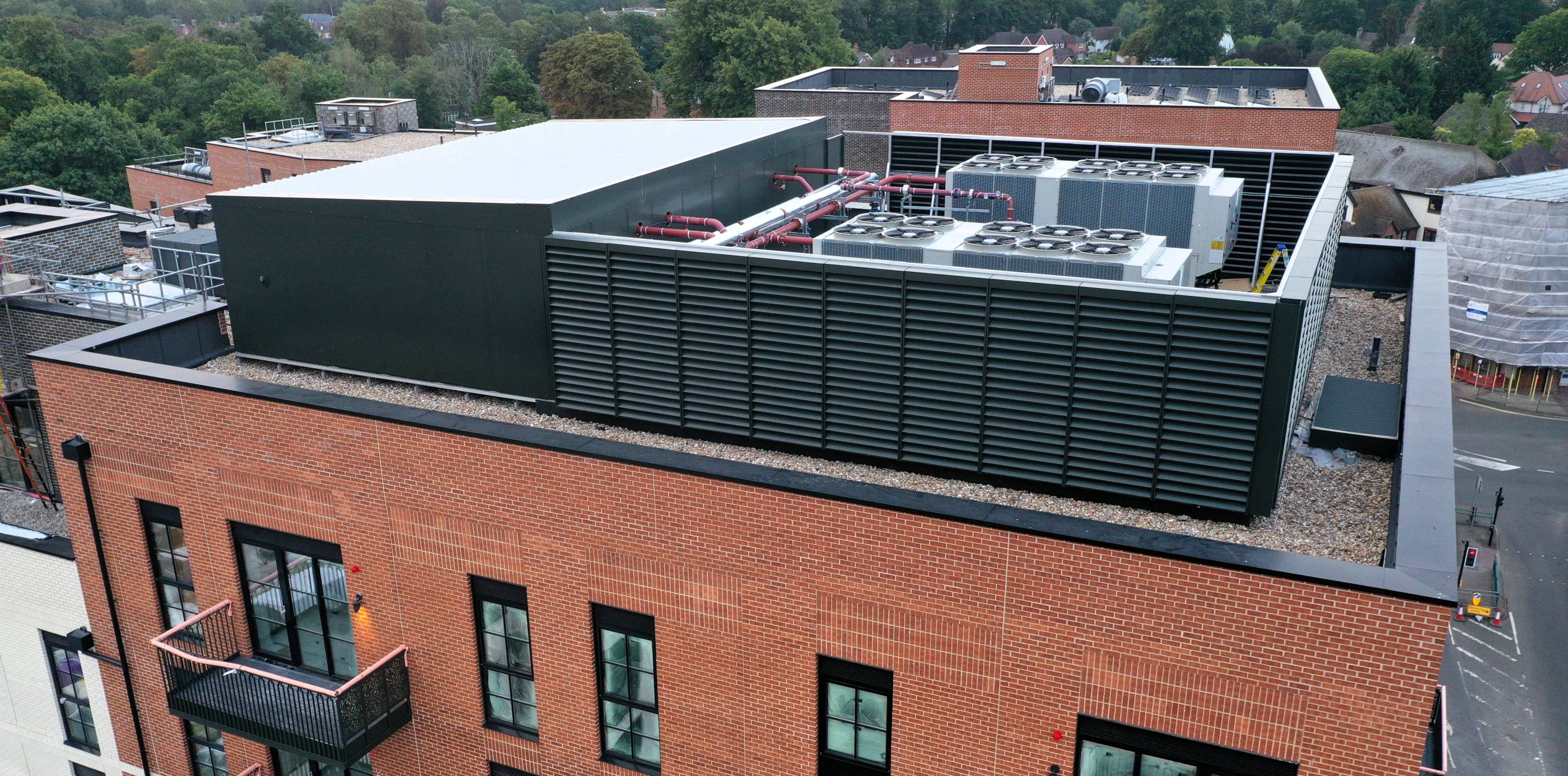

Plantroom
Verified by manufacturer 1 month ago

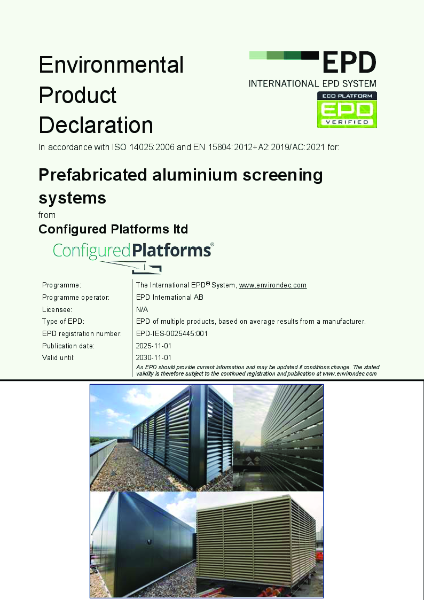

EPD
Certificate type
Plantroom for Series 1, 2, 3 Platforms, Flatscreen, Standard screen, Louvre100 and Peaceflow300.
Application
Fully enclosed weatherproof plant enclosures to mount and protect sensitive equipment from weather.
Description
Fully enclosed weatherproof plant enclosures to mount and protect weather sensitive equipment.
Features and benefits:
– Sleek, low profile design.
– Unique load-sharing design distributes the load evenly, minimising point loads.
– All aluminium components with stainless steel fixings.
– Penetration free making placement and position on the roof flexible.
– Configurable in 600mm increment sizes in width and length to suit your requirements.
– Pitch is configurable to suit the roof requirement.
– The lightweight aluminium design makes it easy for carrying, craning and assembly.
– Modular, pre-engineered system allows for fast turnaround design, manufacture & installation
– Kit form allows Plantroom to be assembled by a trade already on site with our easy to follow installation manual.
– Plantroom seamlessly integrates with our all our screen surrounds and acoustics products.
General information
Color | Grey Other |
Finish | Mill Guidance for specification option: Frame. Powder-coated Guidance for specification option: Wall and roof sections. |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. |
Shape | Square Rectangle Other Manufacturer guidanceGenerally square or rectangular, but other shapes and step-ins can be accommodated. |
Length | Bespoke Guidance for specification option: Any 600 mm increment length around the perimeter. |
Height | Bespoke Guidance for specification option: Height in 400 mm increments. |
Warranty description | 20 year |
Uniclass | |
CAWS | L35/360 Working platforms |
Specification data - Plant enclosure and platform systems
Classification data | |
System manufacturer | Configured Platforms. |
System reference | Plantroom. |
System components | |
Platform | Series 1/ 2/ 3 Platform (specified separately). |
Vertical cladding or screening | |
Vertical framing | Extruded aluminium. |
Cladding or screening | Standard Screen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface. SoundShield system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or a double door. Height options in 400 mm increment sizes above the walking surface - Rw 28. PeaceMaker system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - NRC 1. Acoustic+ system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increment sizes above the walking surface - Rw 33. Flatscreen system. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increments - Rw 31. Peaceflow300. Guidance for specification option: Can be configured to any of the perimeter sides with an option for a door or double door. Height options in 400 mm increments - Rw 11. |
Openings | Not required. Self-closing door. Double doors. |
Roof or canopy | |
Roof framing | Aluminium, mill finish. |
Roof cladding | Flatscreen. |
Ancillary components | Stainless steel bolted and screwed construction. |
Size (l x w x d) | Manufacturer guidanceAny size in 600 mm increments in length around the perimeter and 400 mm increments in height. Insert requirements or refer to a drawing. |
Finish/ Colour | Mill finish frame, powder-coated wall and roof sections. Guidance for specification option: Powder-coated to suit project requirement - available in any RAL colour. Insert requirements. |
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 10 (kg CO₂ eq/kg) Declared unit : 10 | |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % Guidance for specification option: Aluminium up to 95%. |
Product certifications
Product certifications
Literature
Series3 with Acoustic+ Croft Avenue West Wickham
Case studies
West Byfleet Main Roof
Croft Avenue, West Wickam
