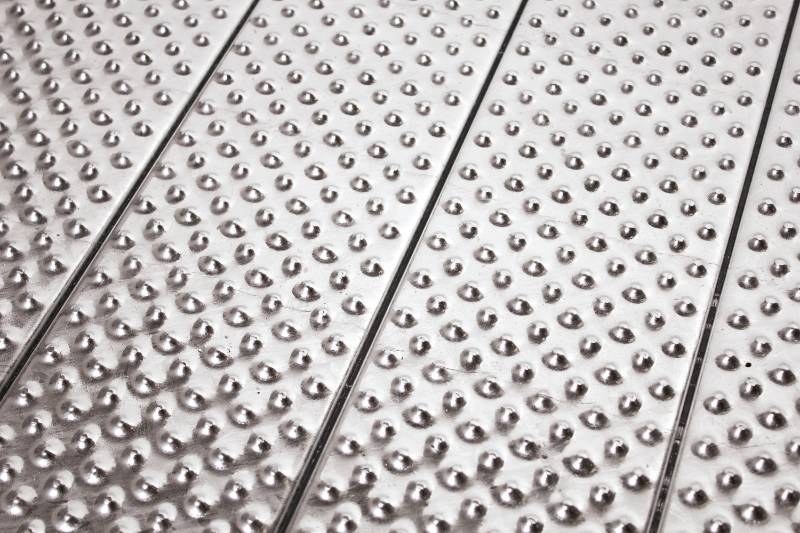

Plank Grating D - Perforated Metal Plank

Verified by manufacturer 3 months ago

Elefant Gratings T/A PcP Gratings Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Environmental Product Declaration

    Certificate type

Safety gratings.

Jump to:
BOS
+44 (0)1902 797110 Website

Application

  • Public access.
  • Rail gantries
  • Vehicular..
  • Access walkways and maintenance platforms.

Description

Safety gratings Type D is characterized by raised surface without holes. Type D is applied where closed surface is required and is a strong alternative to deck plating.

General information

Finish

Unfinished

Material

Steel

Length

Bespoke

Width

Bespoke

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary

CAWS

Q10/312 Footway gratings

L30/460 Walkways

L30/45 Ramps/ walkways

Specification data - Footway gratings

Size

-

Manufacturer guidance

Insert requirement, contact manufacturer for information.

Grating type

Solid grating.

Material

Steel.

Pattern

Raised without holes.

Fixing type

Fixing Clip - Lower Part O2.

Pendulum test value

36+ Low Slip Potential (to BS 7976).

Guidance for specification option:

Dry: 86 multi-directional; wet: 60 multi-directional.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.33 kg CO₂ eq/kg

Manufacturer guidance

Carbon Steel Hot Dip Galvanised 2.6kg CO2e/kg


Recyclability

100%

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

UKAS

UKAS

Type D slip test - PTV

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Environmental Product Declaration

Environmental Product Declaration

Verified EPD Certificate - punched hole gratings

Literature

OPTIMO Plank Grating D

OPTIMO Plank Grating D
