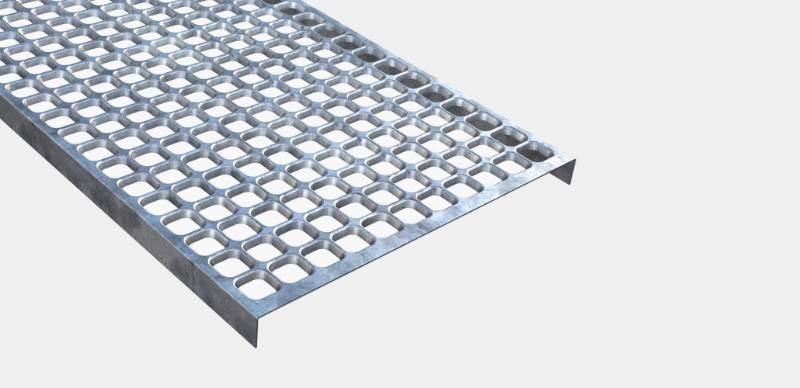

Plank Grating B-CUBE Plain - Perforated Metal Plank

Verified by manufacturer 2 months ago

Elefant Gratings T/A PcP Gratings Ltd Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Environmental Product Declaration

    Certificate type

Safety gratings.

Jump to:
BOS
+44 (0)1902 797110 Website

Application

  • Internal & external anti slip maintenance walkways
  • Access walkways and maintenance platforms
  • Landings


Description

Punched hole mesh gratings B-CUBE® has a high strength-to-weight ratio which means that strength is maintained while weight is reduced. The greater the span, the lower is the weight – in relation to pressure-locked mesh gratings. The B-CUBE® grating can be produced in three design variants depending on how much slip resistance is needed. B-CUBE® mesh gratings are recommended in most constructions and industries where high air- or liquid flow are required.

General information

Finish

Unfinished

Material

Steel

Length

Bespoke

Width

Bespoke

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary

CAWS

Q10/312 Footway gratings

L30/460 Walkways

L30/45 Ramps/ walkways

Specification data - Footway gratings

Size

-

Manufacturer guidance

Insert requirement, contact manufacturer for information.

Grating type

Perforated plank.

Material

Stainless steel.

Steel.

Guidance for specification option:

240 YP, hot-dip galvanized to EN 1461.

Pattern

34 x 34 mm downward drainage holes.

Guidance for specification option:

50–56% free area. 35 mm ball proof (to BS 4592). 43.5 x 43 .5 mm C-C grid.

Fixing type

Fixing Clip - Lower Part.

Fixing Clip - Upper Part MA44/Cube.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.33 kg CO₂ eq/kg

Manufacturer guidance

Carbon Steel Hot Dip Galvanised 2.6kg CO2e/kg


Recyclability

100%

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Environmental Product Declaration

Environmental Product Declaration

Verified EPD Certificate - punched hole gratings

Literature

B-CUBE Plain

B-CUBE Plain

CUBE loading chart & m2 weights

CUBE loading chart & m2 weights

Case studies

New Air BP Jet Fuel Station - plank gratings

New Air BP Jet Fuel Station - plank gratings
