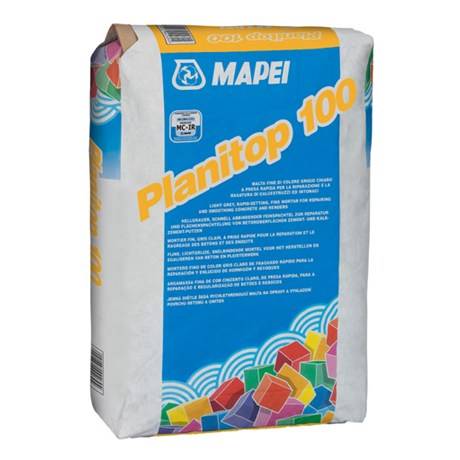

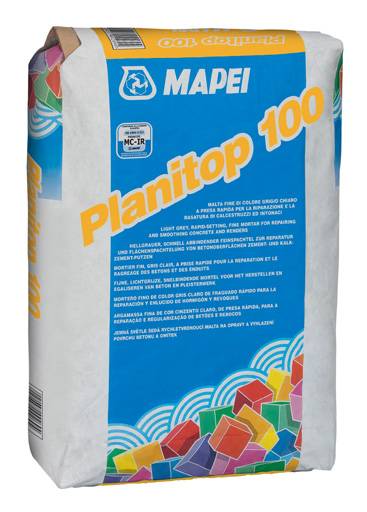

Planitop 100
Verified by manufacturer 9 months ago
Quick-setting, light-grey coloured fine mortar for repairing and smoothing concrete and render.
Application
Used for localized repairs of precast concrete elements damaged by movement and for adjusting superficial defects such as honeycombs and macro-porosity.
Description
Light grey, rapid setting, fine mortar for repairing and smoothing concrete and renders. Meets the requirements of BS EN 1504-2, for concrete protection.
General information
Color | Grey |
Material | Aggregates Cement binders polymers |
Uniclass | |
CAWS | M20/160 Proprietary cement gauged render M20/19 Proprietary cement gauged render |
Specification data - Concrete repair mortars
Mortar type | Cement based lightweight polymer modified. |
Product Reference | Planitop 100 |
Thickness | 3 mm per coat (maximum). Guidance for specification option: For thicknesses greater than 5 mm the addition of 30% sand graded between 1–2 mm is recommended. |
Application temperature | 5–35°C. |
Application thickness | 1–30 mm. |
Bond strength | ≥2.0 N/mm². |
CompressiveStrength | >15.0 N/mm². |
Form | One-component, thixotropic (when mixed with water). |
Density | 1650 kg/m³. |
Mortar type | Cement-based polymer modified. |
Drying time | 60–90 minutes. |
Flexural strength | >5.0 N/mm². |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2015 | 3 |
Literature
Sustainability Brochure
