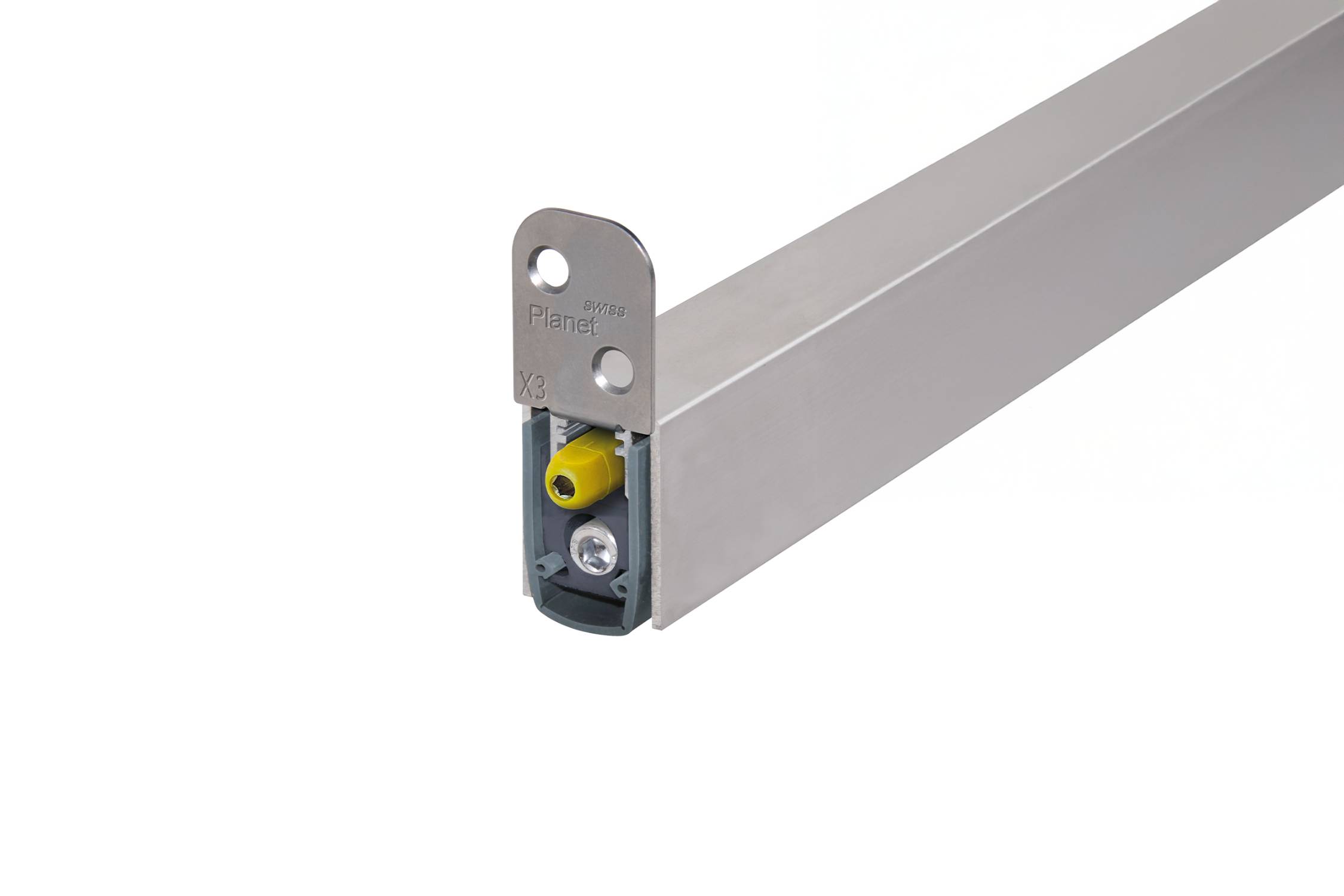

Planet X3 Drop Seal

Name: Planet X3 Drop Seal
Brand: Lorient
SKU: bJoN2kLjVe96P1wWudwoeS

Verified by manufacturer 3 days ago

A mortised automatic drop seal designed for exterior doors made of timber, metal, or PVC. Engineered for high-performance weather protection, it is driving rain-proof (7A/9A, ift certified).

Jump to:

+44 (0)1626 834252 Website

Application

Suitable for use on metal, timber and PVC doors.
Single swing doors, double swing doors, sliding doors and folding doors.
Minimum door thickness 68 mm.

Description

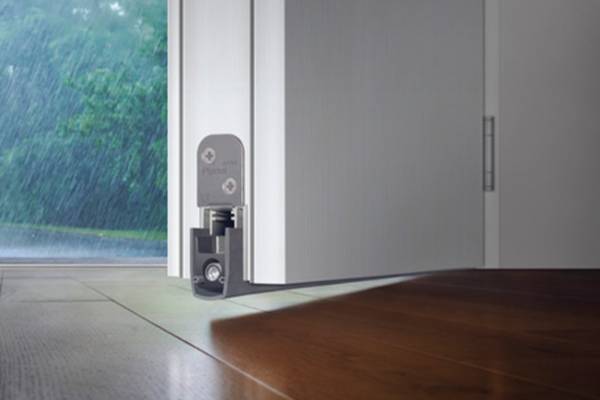

A mortised automatic drop seal designed for exterior doors made of timber, metal, or PVC. Engineered for high-performance weather protection, it is driving rain-proof (7A/9A, ift certified) without requiring a drainage channel. Featuring a high-efficiency mechanism with hinge-side triggering, it provides three sealing movements—downwards, to the left, and to the right—each individually adjustable.

Features and benefits:

High-quality silicone gasket.
Three sealing movements simultaneously.
Barrier free.
Can be shortened to the next smaller stock length.
Driving rain proof (7A/9A, ift certified), no drainage channel required.
Drop height adjustable between 5–12 mm, with a side lift of 2–6 mm.
Durable silicone lip for reliable sealing.
Sound absorption level up to 50 dB (at ground air 7 mm).

General information

Color	Silver
Finish	Other
Material	Aluminium Silicon
Shape	Rectangle
Length	835 mm 960 mm 1085 mm 1210 mm 1335 mm 1460 mm Show more Manufacturer guidance Note: Each length can be cut back by 125mm. Sizes up to 6m are available to special order.
Width	22 mm
Height	30 mm

Uniclass	Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

Specification data - Door and window weatherstrips and seals

Classification data
Functions	Weather seals.
Seal type	Motorised automatic drop seal.
Size	22 x 30 mm. Guidance for specification option: Groove size (width x depth): 22.5 x 30–32 mm. Maximum drop height: 5–12 mm (height), 2–6 mm (side lift). Manufacturer guidance Profile size.
Materials	-
Seals	Silicone.
Carriers	Aluminium.
Colour	Silver.
Acoustic performance	Sound absorption level up to 50 dB.
Length	835 mm. 960 mm. 1085 mm. 1210 mm. 1335 mm. 1460 mm. Other. Guidance for specification option: Lengths up to 6 m are available to special order - insert requirements. Manufacturer guidance Note: Each length can be cut back by 125 mm. Sizes up to 6 m are available to special order.
Fixing	Mounting bracket and self-tapping screws on the side.
Integral accessories	Durable silicone lip.
