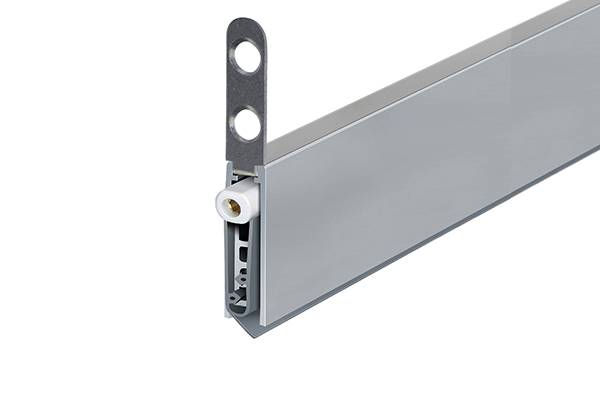

Planet US Drop Seal

Name: Planet US Drop Seal
Brand: Lorient
SKU: cg9GfC9GzCeWwt6vQKDj6b

Verified by manufacturer 1 day ago

A slimline, mortised automatic drop seal designed for timber, metal, and PVC doors. Its ultra-narrow 8 mm profile makes it particularly suitable for minimalistic applications.

Jump to:

+44 (0)1626 834252 Website

Application

Suitable for use on timber, metal and PVC doors.

Description

A slimline, mortised automatic drop seal designed for timber, metal, and PVC doors. Its ultra-narrow 8 mm profile makes it particularly suitable for minimalistic applications and allows installation alongside the Planet KR flush bolt. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering and automatic compensation for sloping floors.

Features and benefits:

Ultra-narrow 8 mm profile.
Suitable for fire and smoke-shielding doors, with a seal height of up to 20 mm.
An optional bevel lip is available for uneven floors, accommodating gaps of up to 24 mm.
Unilateral and silent actuation.
No scraping/ trailing on the floor, thanks to parallel drop.
High-quality silicone gasket, lateral protrusion adjustable.
Can be shortened to the next smaller stock length.
Deeper recess allows for protection of the silicone lip.
Sound absorption level up to 48 dB.

General information

Color	Silver
Finish	Other
Material	Aluminium
Shape	Rectangle
Length	460 mm 585 mm 710 mm 835 mm 960 mm 1085 mm 1210 mm 1335 mm 1460 mm 1585 mm Show more Manufacturer guidance Each length can be cut back by 125mm. Sizes up to 6m are available to special order.
Width	8 mm
Height	30 mm

Uniclass	Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary
CAWS	L20/540 Sliding folding doors L20/520 Sliding doors L20/280 Doors L20/270 Wood doors L20/430 Wood doorsets L20/420 Wood doorsets L20/30 Wood doors L20/480 Doorsets L20/25 Wood panelled doors L20/20 Wood flush doors L20/410 Wood doorsets L20/250 Wood panelled doors L20/230 Wood flush doors L20/55 Doorsets

Specification data - Door and window weatherstrips and seals

Classification data
Functions	Smoke and acoustic seals.
Seal type	Motorised drop seal.
Size	8 x 30 mm. Guidance for specification option: Groove size (width x depth): 8.3 x 30.5–40 mm. Maximum drop height: 20 mm. Manufacturer guidance Profile size.
Materials	-
Seals	Silicone.
Carriers	Aluminium. Guidance for specification option: Standard. Aluminium, anti-corrosion finish. Guidance for specification option: Special order.
Colour	Silver non-anodized.
Acoustic performance	Sound absorption level up to 44 dB.
Length	460 mm. 585 mm. 710 mm. 835 mm. 960 mm. 1085 mm. 1210 mm. 1335 mm. 1460 mm. 1585 mm. Other. Guidance for specification option: Lengths up to 6 m are available to special order - insert requirements. Manufacturer guidance Note: Each length can be cut back by 125 mm. Sizes up to 6 m are available to special order.
Fixing	Fixing screws and pre-drilled end plates.
Integral accessories	Not required. Bevel lip, left-handed. Bevel lip, right-handed.
