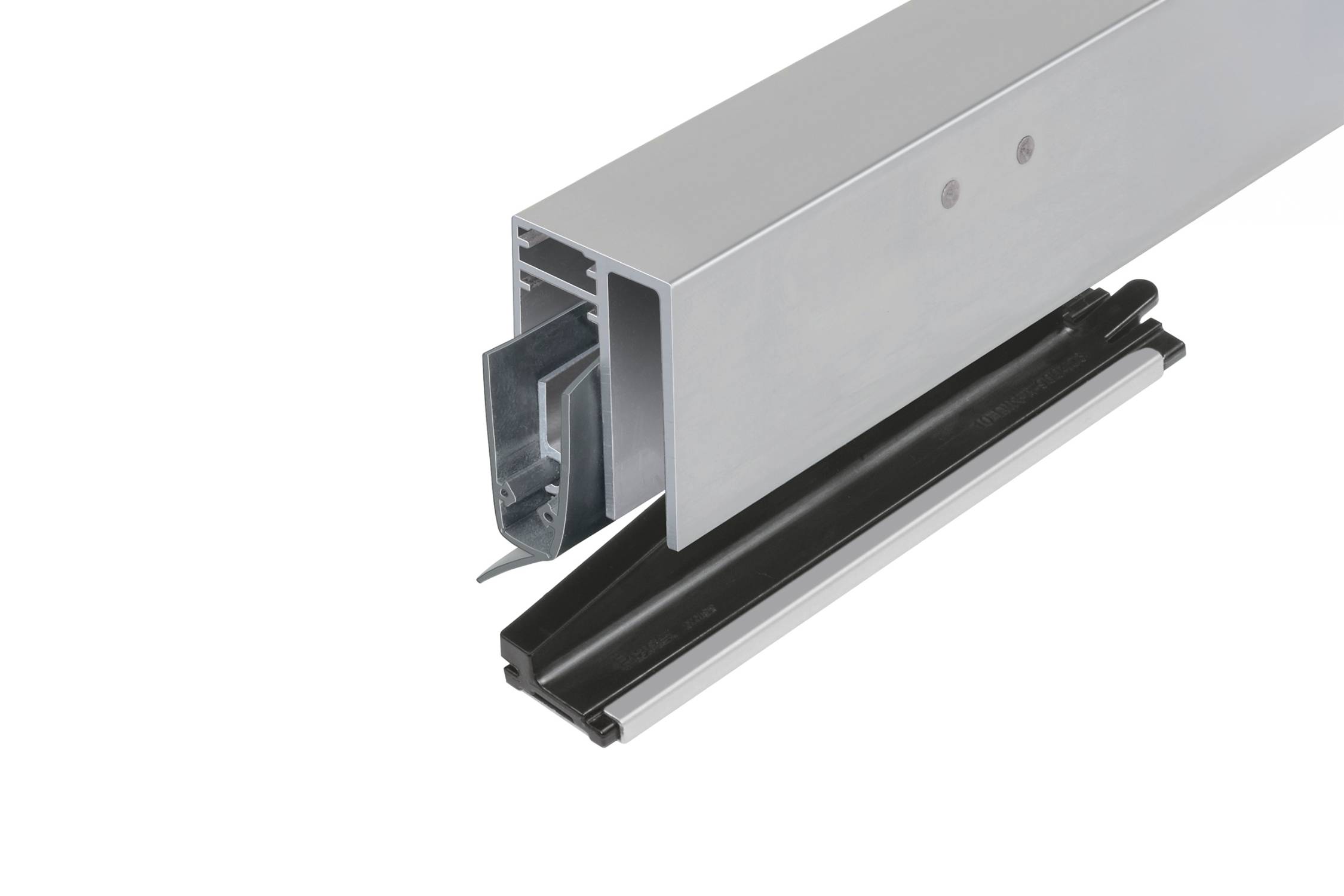

Planet SN Drop Seal

Name: Planet SN Drop Seal
Brand: Lorient
SKU: 9UCHSf5q4feYJSuPHE3UpB

Verified by manufacturer 3 days ago

A complete sealing solution for sliding doors. Designed for smooth, zero-force release, it eliminates the need for a lock/ holding device. Its compact, space-saving design ensures seamless operation.

Jump to:

+44 (0)1626 834252 Website

Application

Suitable for sliding doors.

Description

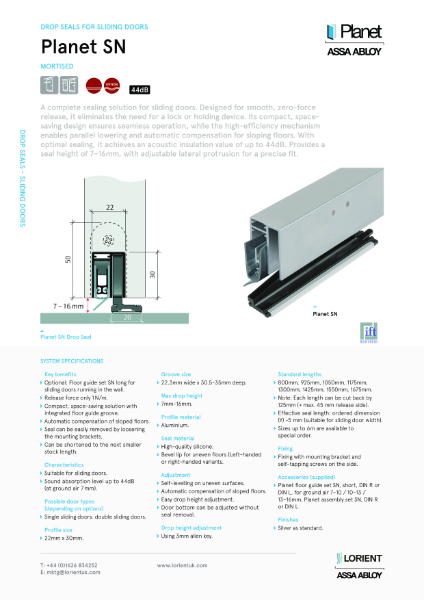

A complete sealing solution for sliding doors. Designed for smooth, zero-force release, it eliminates the need for a lock or holding device. Its compact, space-saving design ensures seamless operation, while the high-efficiency mechanism enables parallel lowering and automatic compensation for sloping floors. With optimal sealing, it achieves an acoustic insulation value of up to 44 dB. Provides a seal height of 7–16mm, with adjustable lateral protrusion for a precise fit.

Features and benefits:

Compact, space-saving solution with integrated floor guide groove.
Automatic compensation of sloped floors.
Seal can be easily removed by loosening the mounting brackets.
Can be shortened to the next smaller stock length.

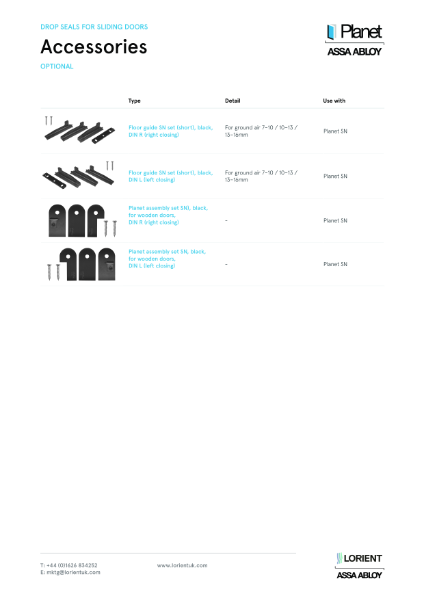

Optional: Floor guide set SN long for sliding doors running in the wall.
Release force only 1 N/m.
Sound absorption level up to 44 dB (at ground air 7 mm).

General information

Color	Silver
Finish	Other
Material	Aluminium
Shape	Rectangle
Length	800 mm 925 mm 1050 mm 1175 mm 1300 mm 1425 mm 1550 mm 1675 mm Show more Manufacturer guidance Each length can be cut back by 125mm (+ max. 45 mm release side). Effective seal length: ordered dimension (Y) -5 mm (suitable for sliding door width). Sizes up to 6m are available to special order.
Width	22 mm
Height	30 mm

Uniclass	Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary
CAWS	L20/60 Doors L20/540 Sliding folding doors L20/525 Sliding pocket doors L20/520 Sliding doors

Specification data - Door and window weatherstrips and seals

Classification data
Functions	Acoustic seals.
Seal type	Motorised drop seal.
Size	22 x 30 mm. Guidance for specification option: Groove size (width x depth): 22.3 x 30.5–35 mm. Maximum drop height: 7–16 mm. Manufacturer guidance Profile size.
Materials	-
Seals	Silicone.
Carriers	Aluminium.
Colour	Silver.
Acoustic performance	Sound absorption level up to 44 dB.
Length	800 mm. 925 mm. 1050 mm. 1175 mm. 1300 mm. 1425 mm. 1550 mm. 1675 mm. Other. Guidance for specification option: Lengths up to 6 m are available to special order - insert requirements. Manufacturer guidance Note: each length can be cut back by 125 mm (+ max. 45 mm release side). Effective seal length: ordered dimension (Y) -5 mm (suitable for sliding door width). Sizes up to 6 m are available to special order.

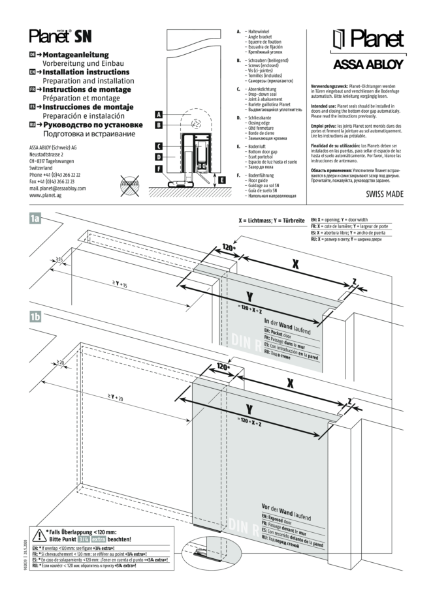

Fixing	Mounting bracket and self-tapping screws.
Integral accessories	Not required. Bevel lip, left-handed. Bevel lip, right-handed.
