Planeo Shower Trays (Acrylic) UDA1480PLA2V
Verified by manufacturer 9 months ago
UDA1480PLA2V-01
UDA1480PLA2V-01

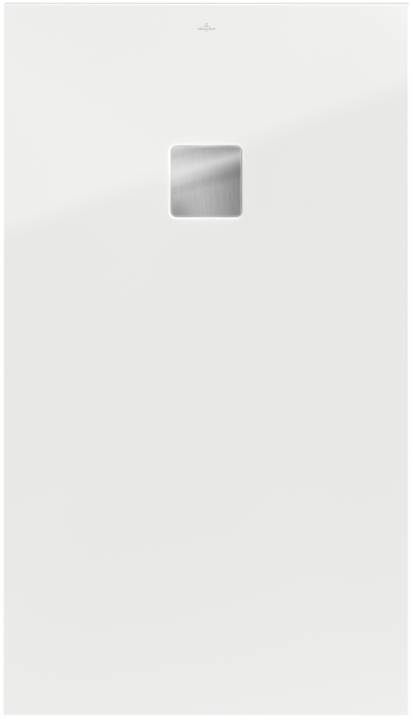

Rectangular shower tray.
Application
- Suitable for flush fitting.
- All shower trays are supplied without support/ base.
Description
Rectangular shower tray.
Features and benefits:
- Can be cut to size on site.
- Outlet cover "Pure Metal" in brushed stainless steel.
- Waste diameter: 90 mm.
General information
Color | Beige Brown Cream Grey White |
Finish | Anti-slip Guidance for specification option: Class A. |
Material | Acrylic |
Shape | Rectangle |
Length | 1600 mm |
Width | 800 mm |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower trays
Form | Rectangular. |
Materials | |
Body | Acrylic. |
Finish and colour | White Alpin. |
Size | 1600 x 800 mm. |
Waste hole | 90 mm, off centre. |
Integral accessories | Brushed stainless outlet cover. |
Colour | Anthracite. Brown. Crème. Grey. Nature Anthracite. |
Drainage capacity | 51 L/min. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 SketchUp | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
 Revit | - | 1 |
 3Ds Max | - | 1 |
