Plana P

Verified by manufacturer over a year ago

Plana P Talc

Mapei (UK) Ltd Variant:

Polyester based polymer modified torch-on cap sheet.

Jump to:
BOS
+44 (0)121 508 6970 Website

Application

Plana P torch-on can be used as the cap sheet onto suitable pour and roll or torch-on underlays as part of a built-up system or as refurbishment overlay to existing asphalt or selected compatible surfaced membranes. When installing a fully torched system, suitable underlays include Plana V2 Torch Underlay.

Description

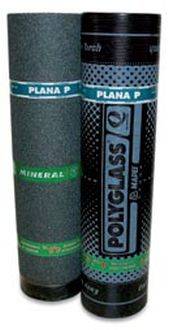

A range of polyester based torch-on cap sheets, coated with a high quality polymer modified APP bitumen coating. The underside of Plana P and Mineral Plana P is protected by Polyflam, a special polyethylene film which melts upon torching. In the mineral version, the top surface is protected by a uniform layer of slate chippings and has a lateral selvedge for overlapping making application fast and secure.

Plana P torch-on membranes provide reliable and effective flat roof waterproofing, combining the qualities of excellent performance, good handling characteristics and economy. The membranes exhibit excellent dimensional and mechanical stability making them suitable as part of a built-up system, or as a refurbishment overlay to existing asphalt or selected surface bitumen membranes.


Features and benefits:

  • Torch-on application.
  • Strong non-woven polyester fabric.
  • Durable APP polymer modified bitumen.
  • Low temperature flexibility.
  • Cost effective performance.
  • Ten year product warranty.

General information

Color

Black

Grey

Finish

Polyflam film

Slate

Material

APP modified bitumen

Non-woven polyester

Warranty description

Ten year

Uniclass

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/405 Single-layer reinforced bitumen waterproof covering

Specification data - Reinforced bitumen roofing sheets

Material

-

Bitumen modification

APP modified bitumen.

Thickness (minimum)

4 mm.

Weight (minimum)

4 kg/m².

Surface finish

-

Top

Plana P Mineral: Slate upper face.

Plana P Talc: Polyflam film lower face.

Underside

Plana P Mineral: Polyflam film lower face.

Plana P Talc: Polyflam film lower face.

Colour

Not applicable.

Guidance for specification option:

For Plana P Talc.

Black.

Grey.

Product Reference

Plana P Mineral

Guidance for specification option:

4.5 mm thickness, 4.5 kg/m².

Plana P Talc

Guidance for specification option:

4 mm thickness, 4 kg/m².

Materials

Non-woven polyester base coated with APP modified bitumen.

Roll size

1 x 8 m.

TensileStrength

Tensile strength (to BS EN 12311): MD: 700 N/50mm; TD: 500 N/50mm.

Elongation

Elongation (to BS EN 12311): 40%.

Flexibility at low temperature

Low temperature flex (to BS EN 1109): -10°C.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
