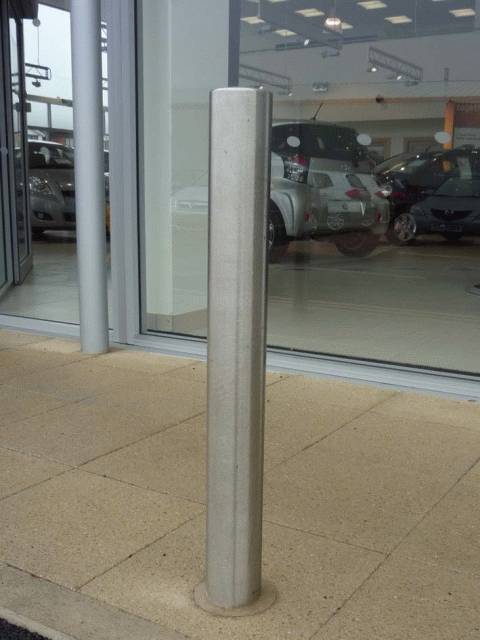

Plain Stainless Steel Bollards
Description

Contemporary and practical – stainless steel bollards will enhance any location. Stainless steel looks elegant and clean, with the added benefit of being easy to maintain. Bollards supplied with welded fixing spikes to ensure firm ground anchorage.

Features:

  • Standard finish is grade 304 stainless steel, brushed/ satin finish.
  • Square bollards come with flat caps as standard. Mitre top also available.
  • 1000 mm above ground as standard.
  • Round bollards come with slightly domed welded caps.
  • Reinforced option available, not available removable or flanged.
  • Other sizes are available on request.

General information
Material

Manufacturer's standard

Stainless steel, grade 304 (1.4301), brushed finish.

Stainless steel, grade 316 (1.4301)

Optional.

Features

Standard finish is grade 304 stainless steel, brushed/ satin finish

Square bollards come with flat caps as standard. Mitre top also available

1000 mm above ground as standard

Round bollards come with slightly domed welded caps

Reinforced option available, not available removable or flanged

Other sizes are available on request

Uniclass 2015
Pr_20_76_08_82 Stainless steel bollardsPrimary
CAWS

Q50/190 Bollards

Q50/192 Collapsible/ Telescopic bollards

Q50/30 Street furniture

Specification data - Stainless steel bollards
Product Reference

Plain Stainless Steel Bollards

Diameter/ Section

60 mm (138125061)

Round bollard. Gross weight: 4.4 kg.

76 mm (138125076)

Round bollard. Gross weight: 5.6 kg.

89 mm (138125089)

Round bollard. Gross weight: 6.5 kg.

101 mm (138125101)

Round bollard. Gross weight: 7.3 kg.

114 mm (138125114)

Round bollard. Gross weight: 8.3 kg.

129 mm (138125129)

Round bollard. Gross weight: 9.4 kg.

139 mm (138125139)

Round bollard. Gross weight: 10.0 kg.

154 mm (138125154)

Round bollard. Gross weight: 11.3 kg.

168 mm (138125168)

Round bollard. Gross weight: 12.5 kg.

204 mm (138125204)

Round bollard. Gross weight: 15.0 kg.

80 x 80 mm (138125080)

Square bollard, specify flat or mitred top. Gross weight: 7.2 kg.

100 x 100 mm (138125100)

Square bollard, specify flat or mitred top. Gross weight: 9.0 kg.

Material

Manufacturer's standard

Stainless steel, grade 304 (1.4301), brushed finish.

Stainless steel, grade 316 (1.4301)

Optional.

Flange

Not required

Required

Reinforcement

Not required

Required

Standard product features

Height:

  • Above ground: 1000 mm.
  • Below ground: 400 mm.

Wall thickness:

2 mm.

Product Options

Flange:

Consult manufacturer's literature for further details relating to flange shapes and dimensions.

Reinforcement:

The internal galvanized steel core (extra cost) will increase the root depth to 500 mm or 600 mm below ground. The steel core can be filled with concrete during installation for additional reinforcement.
