Application

Can be used for any modern, residential and non-fire rated commercial applications.

Description

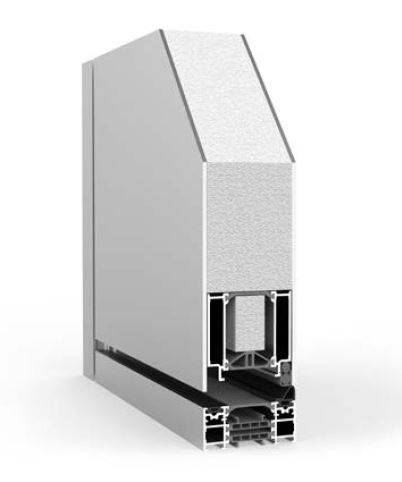

Contemporary door system with a 75 mm insulated panel construction and pivot opening style.

Features and benefits:

  • The door panel is flush both internally and externally.
  • Can be combined with sidelights and fanlights to create an aesthetic entrance with a minimal frame design, which is also suitable for oversized door openings.
  • Mechanical and glued corners ensure a high performance construction and longer life expectancy.
  • Supplied with a marine-grade, powder-coated finish, which makes the profile suitable for use in all locations.
  • 75 mm laminated, triple glazed security glass is supplied as standard to provide maximum security.
  • Manufactured to suit project requirements, with a choice of different internal and external colours.
  • The low level threshold provides disability access compliance.
  • Double gasket sealing system is included for high weather performance.
  • The pivot point is movable, which allows for maximum clear door opening.
  • Includes a hidden fixing system with cover trims to the frame and door sash for minimal maintenance and a clean appearance.
  • Secured by Design and PAS 24 certified.

Applications:

Can be used for any modern, residential and non-fire rated commercial applications.

General information
Material

Aluminium

WarrantyDescription

10 year limited

Uniclass 2015 Doorset systems (Ss_25_30_20_25)
Specification data
Product Reference

Pivot

Type

Double door

Single door

Size -
Height

3000 mm (maximum). Insert requirement.

Width

1100–1800 mm (per door). Insert requirement.

Opening

Inward

Standard.

Outward

On request.

Locking

Manufacturer's standard

Motorized

For use with finger scan locking systems and home smart properties.

Frame

Flush square

Colour/ Finish -
Internal

Dual finish

Available on request.

Elite, ceramic finish

See 'Options' below and insert requirement.

Elite, metal finish

See 'Options' below and insert requirement.

Finestructure finish

No surcharge.

Matt finish

Standard.

Metallic

Available on request.

RAL

See 'Options' below and insert requirement.

Timber finish

External

Dual finish

Insert requirement.

Elite, ceramic finish

See 'Options' below and insert requirement.

Elite, metal finish

See 'Options' below and insert requirement.

Finestructure finish

Matt finish

Metallic

RAL

See 'Options' below and insert requirement.

Timber finish

Accessories/ Other requirements

Not required

25 mm high projecting cills

For ease of installation.

Frame extensions

Glass etching

Consult manufacturer for details.

Glass fanlights

Available 2000 mm high maximum, insert requirement.

Glass sidelights

Available 2000 mm wide maximum, insert requirement.

Opening sidelights

Standard product features

Frame depth:

75 mm.

Handles and fittings:

Grade 316 (1.4401) stainless steel.

Visible frame:

  • Single door: 40–65 mm.
  • Single door with sidelight or fanlight: 65 mm.

Technical characteristics:

  • Water tightness: Class 5A.
  • Wind load resistance: Class C2.
  • Air permeability: Class 3.
  • Thermal transmittance (U-Value): 0.72 W/m²K.
  • Sound insulation: 42 dB.

Product Options

Size:

Indicated measurements include the frame.

Colour/ Finish:

- Elite, ceramic finish:

  • Filo Pece.
  • Ossido Bruno.
  • Ossido Nero.
  • Oxide Moro.
  • Oxide Nero.
  • Tredi Carbonio.

- Elite, metal finish:

  • Antique bronze.
  • Antique copper.
  • Bronze textured.
  • Copper textured.
  • Corten steel.
  • Rustic steel.

- RAL:

Available in 16 standard RAL colours, as well as some non-standard colours. Consult manufacturer for details and insert requirements.

Accessories/ Other requirements:

Custom designs are available on request - consult manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
