Pitched Stainless Steel Sheet Roof on Timber Trussed Rafters

Pitched Stainless Steel Sheet Roof on Timber Trussed Rafters

NBS

Pitched roof construction comprising: Metal profiled sheet covering system, timber frame roof structure system.

Jump to:
+44 (0)345 4569594 theNBS.com
Description

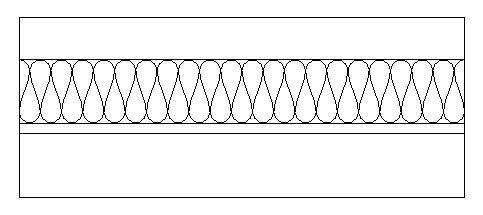

Pitched roof construction comprising:

Metal profile sheet covering system:

  • 100 mm Stainless steel profiled sheet
  • Plastics sheet roofing underlay
  • 150 mm Mineral wool insulation

Timber framed roof structure system:

  • 25 mm Structural veneer plywood
  • 150 mm Trussed rafters

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.0
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
