Pitched Interlocking Clay Tile Roofing on Light Steel Rafters

Verified by manufacturer 27 days ago

NBS

Pitched roof construction comprising: Interlocking tile roof covering system, light steel framed roof structure system.

Jump to:
BOS
+44 (0)345 4569594 Website

Description

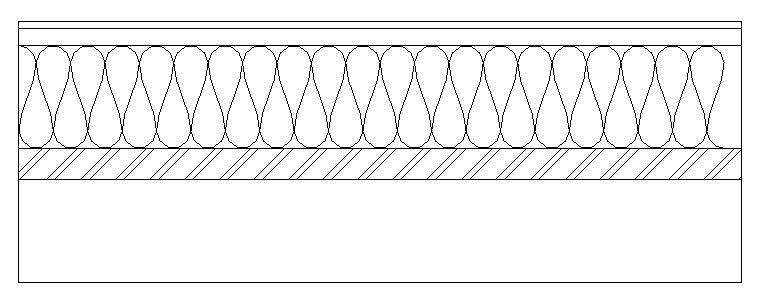

Pitched roof construction comprising:

Interlocking tile roof covering system:

  • 10 mm Concrete interlocking tiles
  • 25 mm Timber battens
  • Plastics sheet roofing underlay
  • 150 mm Mineral wool insulation

Light steel framed roof structure system:

  • 45 mm Steel inner lining
  • 150 mm Cold-formed galvanized section

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

2

IFC
-

2
