Pipe Collars/ Dektite Flatseal™ Rubber Roof Flashing
Verified by manufacturer 4 days ago
Multi-purpose pipe collars.
Application
- Pipe Collars: Flat roofing pipework.
- Flatseal™: Suitable for most flat and low-pitched roof applications. Applications when bonding to EPDM membranes using traditional EPDM to EPDM fixing methods (Primers and Adhesives.
Description

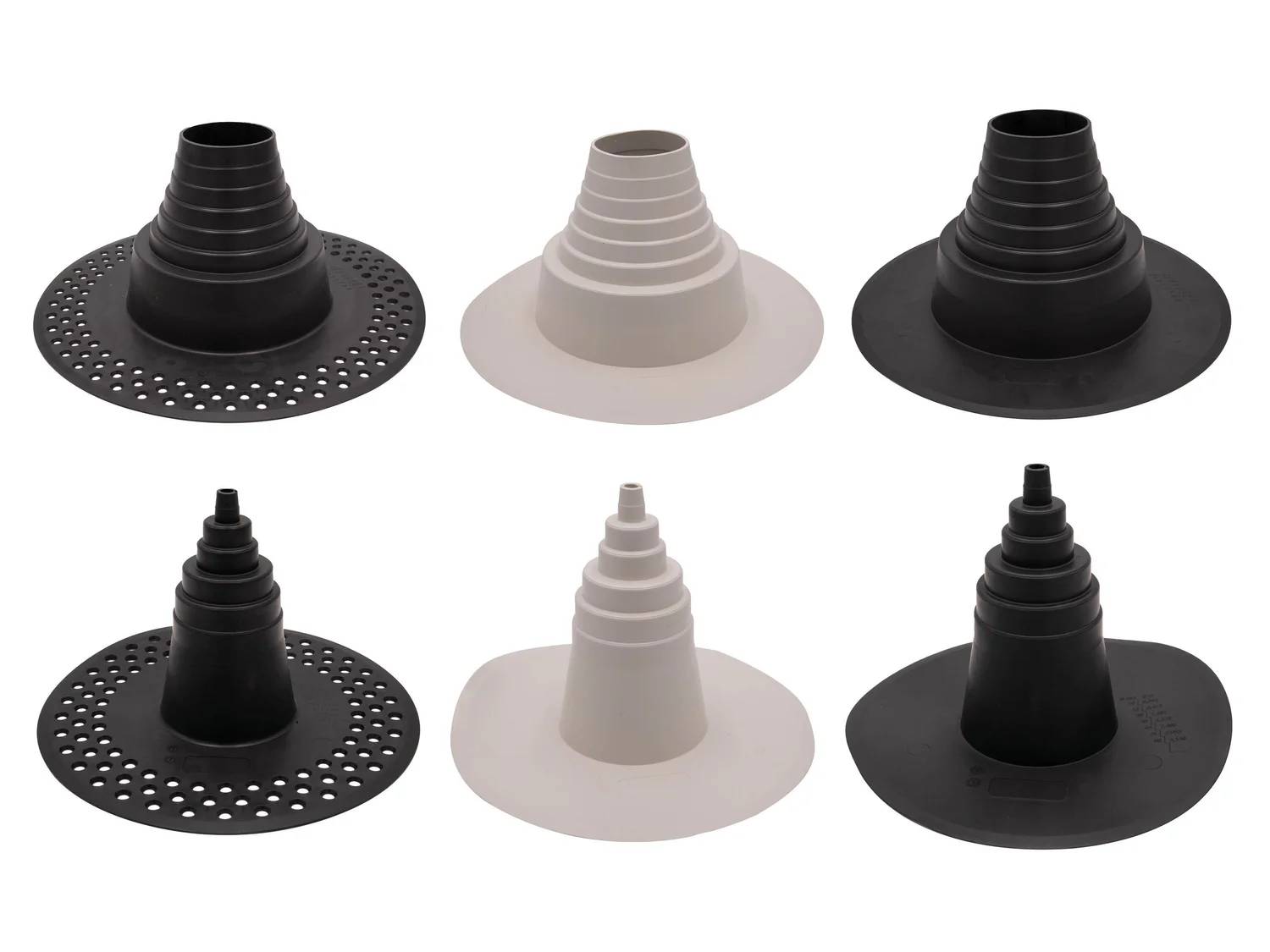

Pipe Collars have the function of connecting synthetic membranes with any penetrating through pipes.
They are equipped with a wide, smooth flange for optimal bonding with synthetic membranes, and a wider perforated flange for better bond and adhesion with bituminous membranes. The cone shape allows a varied sealing range covering diameters from 10–80 mm for the CM10 and from 90–200 mm for the CM90, with only two products they simply cut to diameter required for the pipe size see table for reference. They provide excellent resilience to deterioration caused by the sun, ozone and other weather agents or chemicals normally found in the atmosphere. The elasticity of materials allows for excellent flexibility even at low temperatures, which ensures mechanical and physical properties are maintained over time.

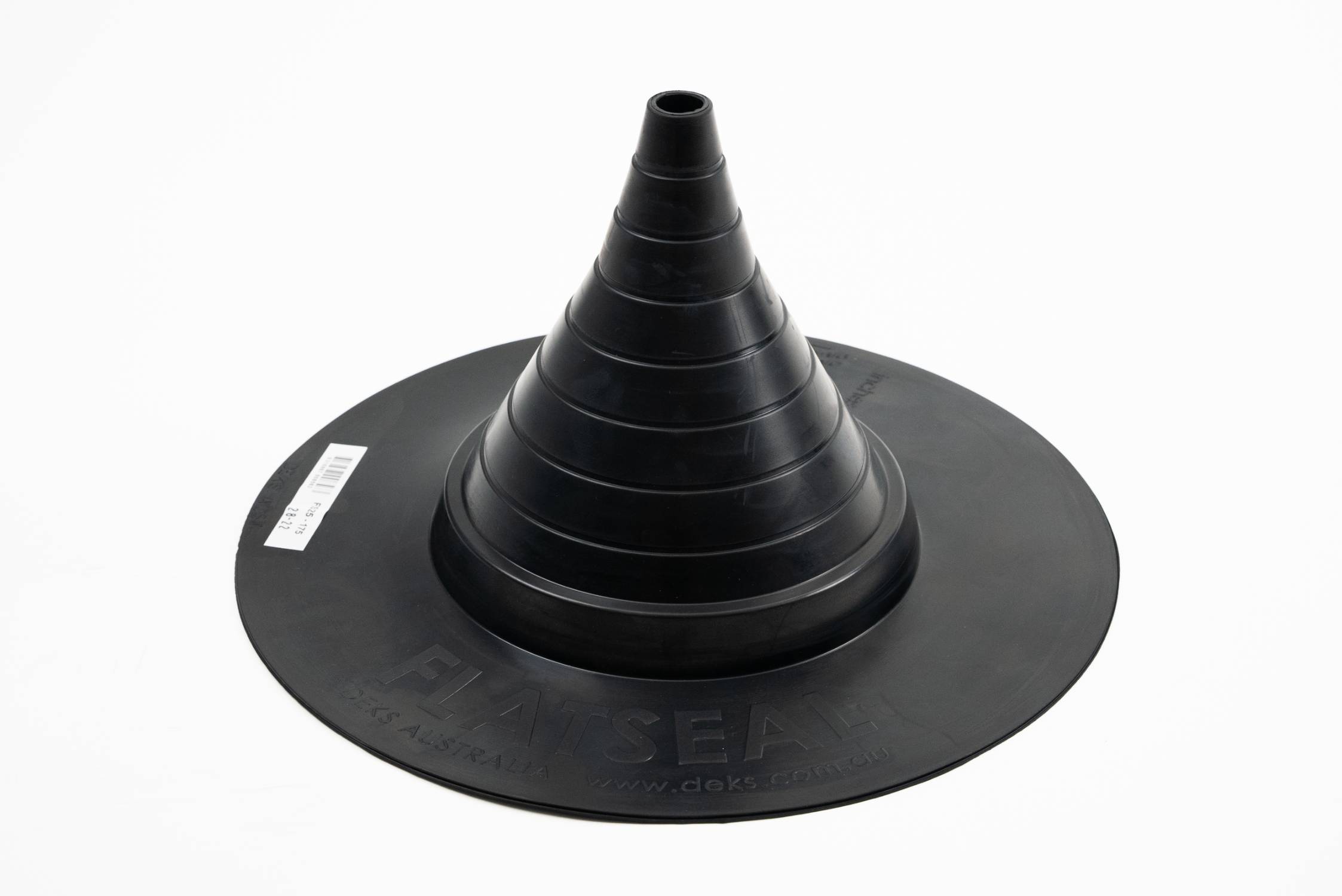

Dektite Flatseal™ Rubber Roof Flashing:
FLATSEAL™ - EPDM
Designed to provide a strong bond with a snap tight seal around the surface of a smooth walled pipe, no clamp bands required. Choose to bond it yourself (FS25 -175) or use the FS25-175BUE for a self-adhesive seal. When a pipe flashing is needed for sealing a penetration through a flat roof, the Dektite® FlatSeal™ offers the solution. Catering for pipe diameters from 25–175 mm, simply cut the Dektite® to size using the size guide moulded into the flashing cone.
FLATSEAL™ BUTYL
Universal applications provide a layer of high strength waterproof self-adhesive which does not harden or crack, simply just peel off the backing paper and bond to virtually all 'non-bituminous' membrane or applied surfaces including EPDM
General information
Color | Black Grey White |
Finish | Smooth |
Material | EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO) |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | J42/480 Pipe collars J41/85 Preformed sleeves J41/480 Pipe collars P12/43 Pipe collars J42/65 Roof penetrations J40/370 Preformed collars for pipes, ducts, cables, etc. J31/357 Pipe collars P12/370 Pipe collars |
SKU Code | FR |
Specification data - Polymeric membrane collars
Classification data | |
Material | EPDM. Guidance for specification option: The smooth-flanged EPDM collars and cones are perfectly compatible with prefabricated EPDM synthetic membrane. We recommend thoroughly cleaning the collar and synthetic membrane near the area where the collar will be joined. FLATSEAL™ EPDM BASE. PVC. Guidance for specification option: PVC and TPO collars & cones with a plain flange are perfectly compatible with prefabricated PVC and TPO synthetic membranes. We recommend thoroughly cleaning the collar and synthetic membrane near the area where the collar will be joined TPE. Guidance for specification option: TPE collars and cones with perforated flange are perfectly compatible with APP and SBS refabricated bitumen membranes and coated bitumen. A sandwich installation between the two layers of membrane is recommended to achieve top performance. To improve adhesion, the collars can be pre-coated with a light coat of primer. TPO. Guidance for specification option: PVC and TPO collars and cones with a plain flange are perfectly compatible with prefabricated PVC and TPO synthetic membranes. We recommend thoroughly cleaning the collar and synthetic membrane near the area where the collar will be joined Butyl. Guidance for specification option: FLATSEAL™ BUTYL BASE. |
Product reference | Pipe Collar. Dektite Flatseal™ Rubber Roof Flashing. |
Dimensions | 312 x 10/190 mm. Guidance for specification option: Diameter: 10-80 mm 432 x 90/190 mm. Guidance for specification option: Diameter: 90-200 mm 345 mm. Guidance for specification option: FLATSEAL™ base diameter. Pipe External: 25–175 mm. |
Flange | Perforated. Guidance for specification option: TPE. Ribbed. Guidance for specification option: TPE. Smooth. Guidance for specification option: EPDM, TPE, PVC, TPO, Flatseal. |
Welding | Flame. Guidance for specification option: TPE. Hot air. Guidance for specification option: PVC, TPO. Incorporated. Guidance for specification option: EPDM. Not applicable. |
Colour: | Black. Grey. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Vietnam |
Country of product manufacture | Vietnam |
Manufacturing plant location | |
Material | EPDM PVC Thermoplastic elastomer (TPE) Thermoplastic polyolefin (TPO) |
Expected Life | Ten year |
Literature
Literature type
Flat Roofing
DEKS Flashings
Pipe Collar - EPDM

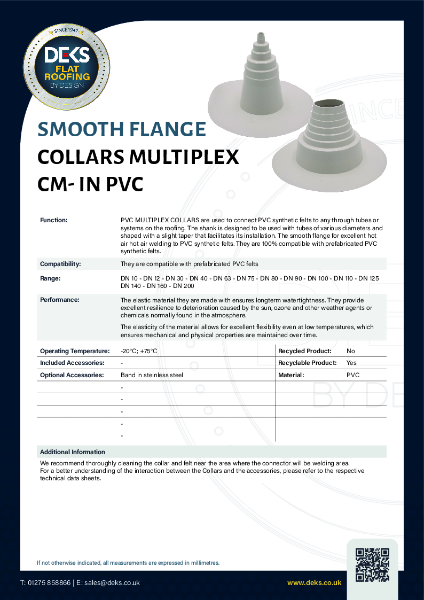

Pipe Collar - PVC

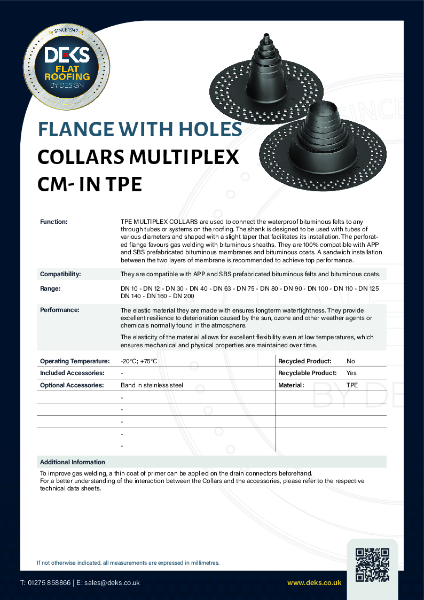

Pipe Collar - TPE

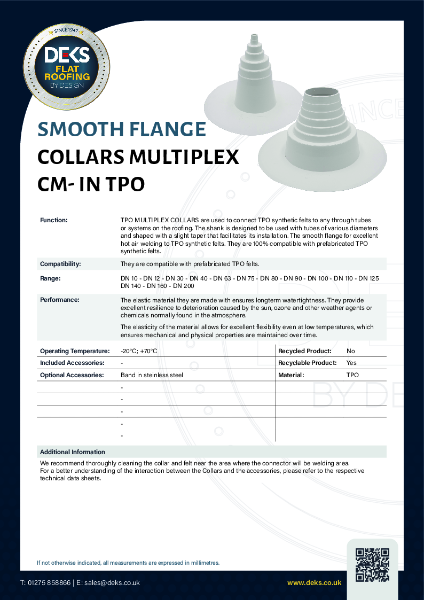

Pipe Collar - TPO
Pipe Collar - TPE / PVC / EPDM / TPO
