Pinnacle Series Glass Door Hinges
Description

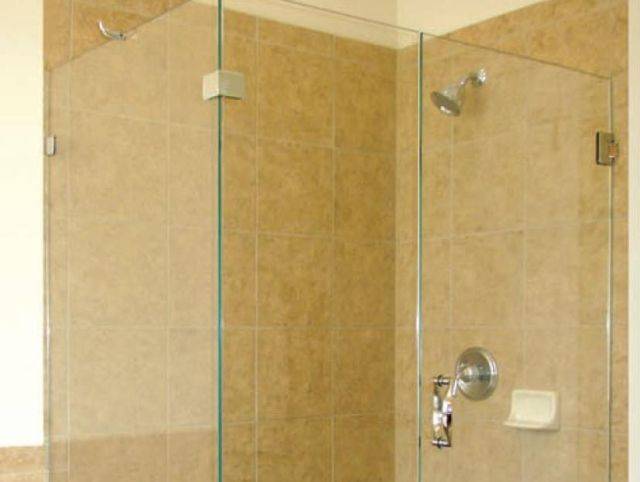

Solid brass shower door hinges for 8–12 mm-thick glass doors.

Features:

  • Designed for use with tempered or toughened safety glass.
  • Self-centring when within 15° of closed position.
  • Hinge swings 90° in and out.
  • Most hinges contain a reversible pivot pin, pre-set for either 90° (standard) or 85° (pre-set). The pin can be rotated to activate the other setting.

Warranty:

Three years.

General information
Finish

Insert requirement from 'Options' below.

Features

Designed for use with tempered or toughened safety glass

Self-centring when within 15° of closed position

Hinge swings 90° in and out

Most hinges contain a reversible pivot pin, pre-set for either 90° (standard) or 85° (pre-set). The pin can be rotated to activate the other setting

Uniclass 2015
Pr_40_20_06_79 Shower enclosuresPrimary
CAWS

N13/375 Shower units

N13/40 Shower units

P21/8 Door hinges

P21/320 Door hinges

Specification data - Shower enclosures
Product Reference

P1N037

Wall mount, full backplate, standard.

P1N044

Wall mount, offset backplate, standard.

P1N045

Glass-to-glass, 135°, standard.

P1N074

Wall mount, short backplate, standard.

P1N092

Glass-to-glass, 180°.

P1N180

Glass-to-glass, 180°, standard.

P1N537

Wall mount, full backplate, pre-set.

P1N544

Wall mount, offset backplate, pre-set.

P1N574

Wall mount, short backplate, pre-set.

P1N580

Glass-to-glass, 5°, pre-set.

Finish

Insert requirement from 'Options' below.

Accessories

None

GENP1N

Angle, insert required angle up to 45°.

P1N13

2.5 mm gaskets when using 8 mm-thick glass.

P1N4GASKCLR

Clear gasket replacement kit.

P1NGASK

Black gasket replacement kit.

Standard product features

Door width (maximum):

  • Two hinges: 711 mm.
  • Three hinges: 813 mm.

Door weight (maximum):

  • Two hinges: 36 kg.
  • Three hinges: 54 kg.

Product Options

Finish:

Available in all black, antique bronze, antique brushed copper, antique brushed nickel, brushed bronze, brushed nickel, brushed satin chrome, chrome, gold-plated, gun metal, matte black, oil-rubbed bronze, polished brass, polished copper, polished nickel, satin brass, satin chrome, satin nickel, ultra-brass and white chrome.
