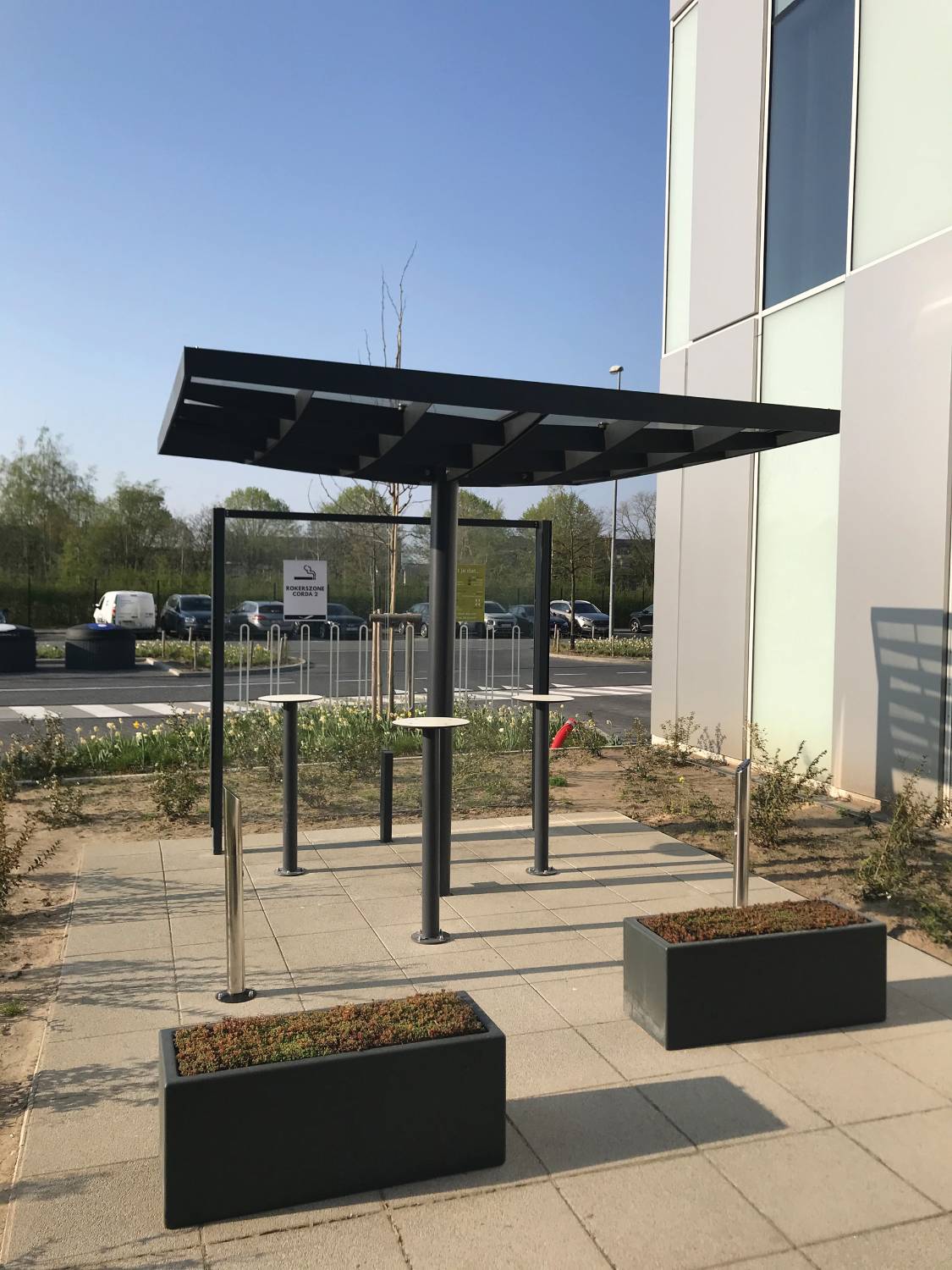

Pin Shelter - Modular Open-sided Shelters
Verified by manufacturer 3 days ago
PIN100 - 2.7 m, square, glass roof
PIN100 - 2.7 m, square, glass roof
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Modular system that allows for the assembly of almost any shelter of all shapes and sizes.
Application
Open-sided shelters suitable for use as a universal gazebo, a bus shelter or a bicycle shelter, as well as covered walkways between buildings.
Description
Modular system that allows for the assembly of almost any shelter of all shapes and sizes.
Features and benefits:
- Designed in two roof shape variants, round and square, each in two different heights, allowing for overlapping designs.
- The square module can be arranged side by side and expand the roofed area in four directions. The resulting assemblies can thus be square, rectangular or any irregular shape, of unlimited width and length.
- The circular module can, in turn, be assembled into groups where the individual modules overlap.
- Galvanized steel structure treated with powder coating.
- Roof made of either frosted or coloured safety glass; solar panels; extensive vegetation (green roof).
- Drainage system is integrated into a column.
- The square network of beams create a space for integrated LED lighting.
The wider Pin range includes wind protection walls; consult manufacturer for details.
General information
Color | Silver Other Guidance for specification option: RAL. Beige Black Blue |
Finish | Galvanized Powder-coated |
Material | Carbon steel Glass Vegetation |
Shape | Circle Square |
Length | 3080 mm 3505 mm |
Width | 3080 mm 3505 mm |
Height | 2685 mm 2740 mm 2760 mm 3050 mm 3100 mm |
Warranty description | Six year Five year One year |
Uniclass | |
CAWS | B91/365 Pavilion/ gazebo B91/420 Waiting shelter B91/390 Smoking shelter B91/385 Shelter B91/340 Cycle shelter B91/320 Bus shelter |
Specification data - Open-sided shelters
Shelter description | Modular. |
Dimensions | |
Plan size | 3080 x 3080 mm. |
Height | 2685 mm. |
Frame | |
Material | Steel. |
Finish | Hot-dip galvanized and powder coated. |
Colour | RAL 1000 green beige.RAL 1012 lemon yellow.RAL 1013 oyster white.RAL 1019 grey beige.RAL 1020 olive yellow.RAL 1021 colza yellow.RAL 2004 pure orange.RAL 2005 fluorescent orange.RAL 2008 bright red orange.RAL 3003 ruby red.RAL 3012 beige red.RAL 3015 light pink.RAL 3016 coral red.RAL 3020 traffic red.RAL 4010 telemagenta.RAL 5002 ultramarine blue.RAL 5011 steel blue.RAL 5015 sky blue.RAL 5019 capri blue.RAL 5024 pastel blue.RAL 6007 bottle green.RAL 6010 grass green.RAL 6018 yellow green.RAL 6019 pastel green.RAL 6027 light green.RAL 7002 olive grey.RAL 7006 beige grey.RAL 7016 anthracite grey.RAL 7021 black grey.RAL 7022 umbra grey.RAL 7024 graphite grey.RAL 7032 pebble grey.RAL 7035 light grey.RAL 7043 traffic grey B.RAL 8019 grey brown.RAL 8024 beige brown.RAL 9005 jet black.RAL 9006 white aluminium.RAL 9007 grey aluminium.RAL 9010 pure white.DB 703 deutsche bahn.AKZO NOBEL Interpon D1036 SW302G.AKZO NOBEL Interpon D1036 SW325i.Corten.Other.Guidance for specification option: Insert requirements (RAL). |
Roof covering | Safety glass panels, frosted.Safety glass panels, coloured.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Rainwater drainage | Lead through the supporting column with the outlet under the paving into the storm drain system. |
Accessories | None.Integrated LED lighting.Guidance for specification option: Via the square network of beams; include cabling. |
Weight | 721 kg. |
Snow load classification | Surface load = 1.5 kN/m² (150 kg/m²) according to ČSN EN 1991-1-3. |
Wind load classification | Guaranteed wind resistance up to speed of 25.1 m/s (90 km/h) according to ČSN EN 1991-1-4. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Czechia |
Material | Carbon steel Glass Vegetation |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001
ISO 9001 Quality Management
ISO 9001
