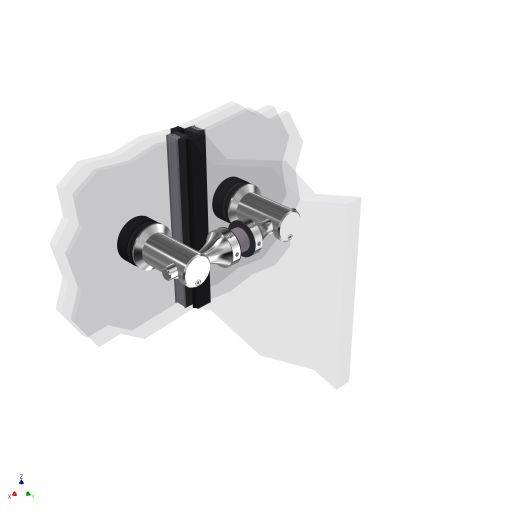

Pilkington Planar 905J Glass Fixing Assembly
Description

This is the most popular Pilkington Planar™ fitting which eliminates the need for spring plates and allows absorption of live loads and thermal expansion by rotation round a steel pin connected to the back-up structure. The fitting can also be articulated to allow use in faceted façades.





General information

Color

Clear

Features

Eliminates the need for spring plates and allows absorption of live loads and thermal expansion by rotation around a stainless steel rod connected, to the back up structure

Material

Stainless steel

Uniclass 2015

Pr_20_29_34_86 Stainless steel point connectorsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
