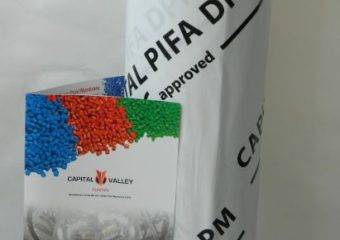

PIFA Approved Damp Proof Membrane

Verified by manufacturer 3 months ago

Capital Valley Plastics Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

LDPE Damp-proof membrane. Certified by PIFA this robust membrane is manufactured from 100% recycled polymers.

Jump to:
+44 (0)1495 772255 Website

Application

For use in solid concrete ground floors and suspended floors not subject to hydrostatic pressure, to protect buildings against moisture from the ground.

Description

PIFA approved LDPE Damp-proof membrane, for use in solid concrete ground floors and suspended floors not subject to hydrostatic pressure, to protect buildings against moisture from the ground. The membranes and the methods of jointing provide an effective barrier to the passage of liquid water and water vapour from the ground and have a high resistance to puncture. On smooth or blinded surfaces they will not be damaged by foot or site traffic, e.g. wheelbarrows. Exposure to ultraviolet light, including sunlight will embrittle the membrane and is therefore not recommended for uses where it is exposed to long periods of outdoor weathering.


Performance:

  • Tear strength: 40 N/mm.
  • Tensile strength: 14.4 mPa
  • Water vapour transmission rate (to BS 3177): 1.0 g/m²/day (250 µm), 0.8 g/m²/day (300 µm), 0.5 g/m²/day (500 µm).

General information

Color

Black

Blue

Finish

Other

Material

Low density polyethylene (LDPE)

Shape

Other

Length

25000 mm

Width

4000 mm

Warranty description

Lifetime

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/120 Loose-laid plastics or rubber sheet damp-proofing

J40/130 Loose-laid plastics or rubber sheet oversite damp-proofing

J40/20 Loose-laid plastics or rubber sheet damp-proofing

J40/30 Loose-laid plastics or rubber sheet oversite damp-proofing

Specification data - Plastics sheets

Material

Extruded low density polyethylene (PE-LD) blown film.

Physical properties

-

Colour

Blue.

Black.

Dimensions

-

Thickness (minimum)

250 µm.

300 µm.

500 µm.

Width (minimum)

2 m.

4 m.

Roll length (minimum)

12.5 m.

25 m.

50 m.

Accessories

None.

Girth Tape.

Guidance for specification option:

75 mm width, single sided.

Mastic Tape.

Guidance for specification option:

50 mm width, double sided.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

QA Certificate

QA Certificate

PIFA Approved

Literature

PIFA Certificate

PIFA Certificate
