PhotonFrame - Breathable Multi Foil Insulation
Verified by manufacturer 2 months ago
CE Marking
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
ISO 9001 Quality Management
Certificate type
Breathable version of PhotonFoil, designed for cold side installation.
Application
Suitable for timber frame construction. Whilst PhotonFrame was developed for timber frame new build housing it is widely used in offsite construction of volumetric modular units where energy and moisture management are critical. It is also suitable for use in many external wall types (metal stud, concrete etc).
Description
PhotonFrame is a highly breathable multi foil insulation designed for installation on the cold side of timber frame structures. It is constructed with a high density glasswool core encased in micro-perforated low emissivity outer layers.
The product can be installed in combination with PhotonFoil to deliver Passivhaus standards of insulation with regular 140 mm glass filled studs.
The product has been independently tested and certified to the latest European Standards by accredited European test houses and has achieved LABC (Local Authority Building Control) Registered Details.
General information
Color | Silver |
Material | Glass mineral wool |
Shape | Rectangle |
Length | 10000 mm |
Width | 1200 mm |
Height | 33 mm Guidance for specification option: Thickness. |
Warranty description | Lifetime Guidance for specification option: For the lifetime of the building element Manufacturer guidanceProduct liability insurance |
Uniclass | |
CAWS | P10/212 Insulation fixed across inner face of stud walling |
Specification data - Multifoil blanket insulation
Reflective facing | Foil. |
Thickness | 33 mm. |
Fire performance | To EN 11925-2: Class E. |
Water vapour resistance | To EN 12572: Sd 0.044; 0.22 MN.s/g.m. |
Emissivity | To EN 16012: 0.05 |
Thermal resistance | To EN 16012: 2.35 m²K/W. |
Class (minimum) | W3. |
Weight (minimum) | 0.95 kg/m². |
Sustainability data
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Third party certifications
CE Marking

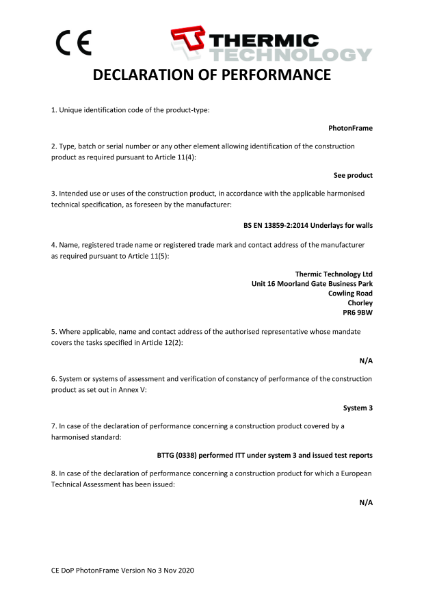

PhotonFrame (standard) CE DoP
UK Conformity Assessed (UKCA)

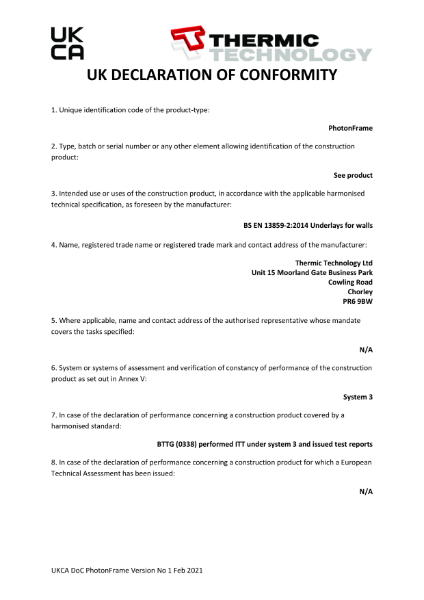

PhotonFrame (standard) UKCA DoC
ISO 9001 Quality Management
Thermic Technology ISO 9001:2015
Literature
PhotonFrame (standard) Installation Instructions
PhotonFrame (standard) Technical Datasheet
