PhotonFrame-A1 - Breathable Multi Foil Insulation

Name: PhotonFrame-A1 - Breathable Multi Foil Insulation
Brand: Thermic Technology Ltd
SKU: w4B9mdJPRBaaFxpHFFEJ5m

Verified by manufacturer 24 days ago

Thermic Technology Ltd

Third party certifications:

BRE Certificate
Certificate type

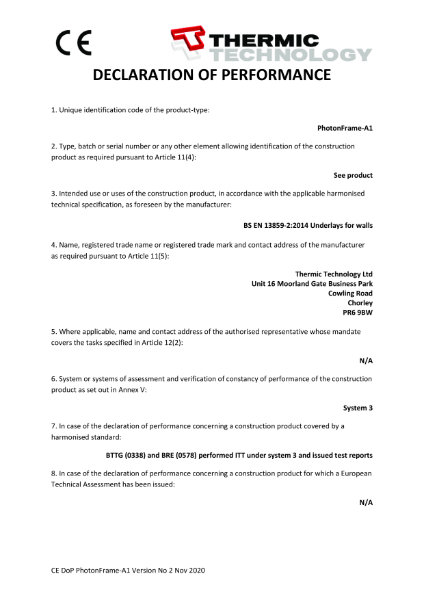

CE Marking
Certificate type

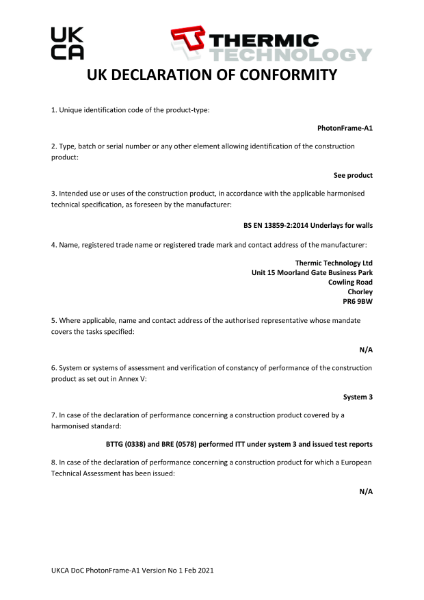

UK Conformity Assessed (UKCA)
Certificate type
ISO 9001 Quality Management
Certificate type

Non combustible and breathable version of PhotonFoil-A1, designed for cold side installation.

Jump to:

+44 (0)1257 241084 Website

Application

Suitable for timber frame construction. Whilst PhotonFrame-A1 was developed for timber frame new build housing it is widely used in offsite construction of volumetric modular units where energy and moisture management are critical. It is also suitable for use in many external wall types (metal stud, concrete etc.).

Description

PhotonFrame-A1 is a highly breathable multi foil insulation designed for installation on the cold side of timber frame structures. It is constructed with a high density glasswool core encased in micro-perforated low emissivity outer layers. PhotonFrame-A1 has been certified as A1 non-combustible in accordance with BS EN13501-1 by BRE Global Ltd (Report Number Q100799-1003).

The product can be installed in combination with PhotonFoil to deliver Passivhaus standards of insulation with regular 140 mm glass filled studs.

The product has been independently tested and certified to the latest European Standards by accredited European test houses and has achieved LABC (Local Authority Building Control) Registered Details.

General information

Color	Silver
Finish	Foil
Material	Glass mineral wool
Shape	Rectangle
Length	10000 mm
Width	1200 mm
Height	33 mm Guidance for specification option: Thickness.
Warranty description	Lifetime Guidance for specification option: For the lifetime of the building element Manufacturer guidance Product liability insurance

Uniclass	Pr_25_57_06_57 Multifoil blanket insulationPrimary
CAWS	P10/212 Insulation fixed across inner face of stud walling

Specification data - Multifoil blanket insulation

Third-party certification	BRE Certificate.
Thermal performance	2.35 m²K/W with two cavities.
Reflective facing	Foil.
Thickness	33 mm.
Fire performance	To EN 13501-1: A1.

Water vapour resistance	To BS EN 13859-2: Sd 0.072 (0.36 MN.s/g.m)
Emissivity	To EN 16012: 0.05
Thermal resistance	To EN 16012: 2.35 m²K/W.
TensileStrength	To EN 12311-1: MD 5730 N/50mm, XD 4390 N/50mm.
Class (minimum)	W2.
Weight (minimum)	1.2 kg/m².

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	Yes Manufacturer guidance Manufactured from fibreglass and aluminium
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
