Phoenix Continuous Hinges
Description

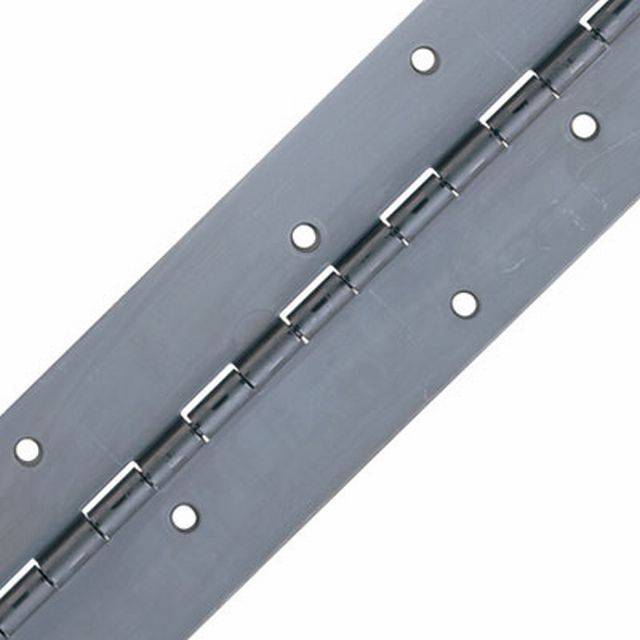

Continuous stainless steel hinges ideal for vandal resistant door applications. The hinges avoid the need for finger guards on the pull side of the door.

General information

Material

Mill finish stainless steel

Uniclass 2015

Pr_30_36_36_17 Cranked hingesPrimary

CAWS

P21/320 Door hinges

P21/8 Door hinges

Specification data - Cranked hinges

Product Reference

Phoenix Continuous Hinges

Type

351.12.000

926.91.170

Standard product features

Material:

Mill finish stainless steel.

Product Options

Type:

– 351.12.000:

  • Length (maximum): 2134 mm.
  • Open width: 101.6 mm.
  • Adjusted door weight (maximum): 120 kg.
  • CP grade 4.
  • 42 holes per hinge.

– 926.91.170:

  • Length (maximum): 2000 mm.
  • Open width: 76 mm.
  • Adjusted door weight (maximum): 120 kg.
  • CP grade 4.
  • 40 holes per hinge.
