PFEIFER DB-Anchor for Bolted Fixings
Verified by manufacturer 3 months ago
Threaded cast-in anchor sockets for making connections to concrete.
Application
Suitable for the connection of many types of components to concrete.
Description

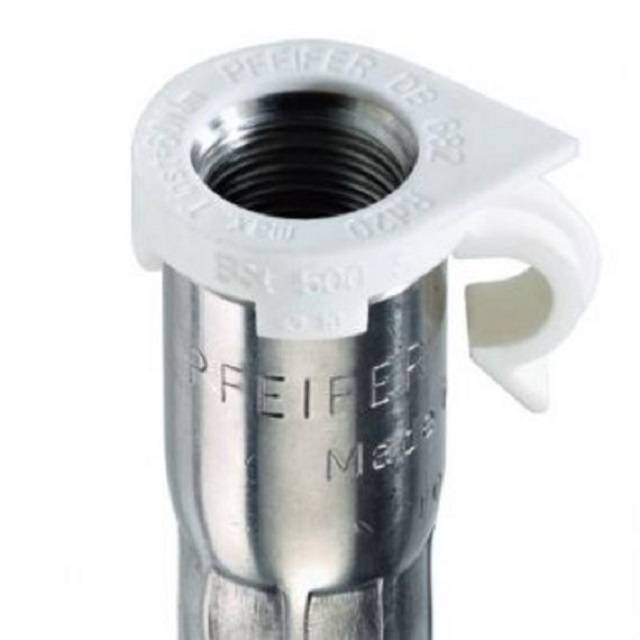

Available in a range of sizes and two anchor configurations, PFEIFER DB Anchors are cast into the surface of concrete structures to enable the anchoring of permanent loads with simple threaded connections.

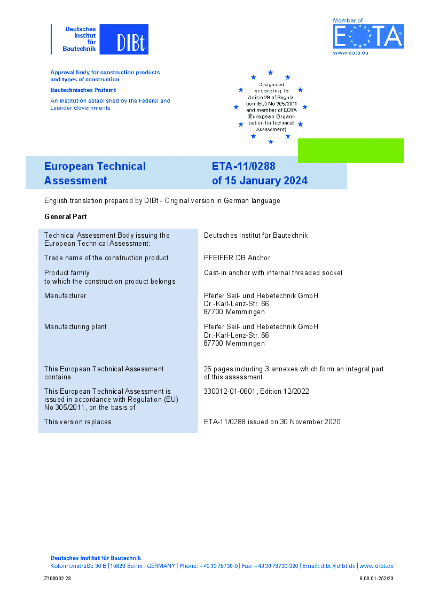

The anchors are attached to the formwork before concreting to hold them in position during the pouring process. Once the concrete is hardened, connections can be made with normal metric bolts. PFEIFER DB Anchors are evaluated by European Technical Assessment (ETA 11/0288).
There are two different anchor styles: the PFEIFER DB Waved Anchor and the PFEIFER DB Foot-Mounted Anchor with shorter anchors for particularly slim elements. Both versions are available in zinc plated steel and stainless steel materials.
Features and benefits:
- Reliable.
- Simple threaded connections.
- ETA assessed performance.
- Versatile range for various applications.
- High load carrying capabilities.
General information
Color | Grey |
Finish | Zinc plated |
Material | Stainless steel Steel |
Shape | Other |
Length | 80 mm 110 mm 120 mm 150 mm 174 mm |
Width | 12 mm 16 mm 20 mm 24 mm 30 mm Manufacturer guidanceDimensions are metric thread diameters |
Height | 80 mm 110 mm 120 mm 150 mm 174 mm |
Uniclass | |
CAWS | E42/330 Anchor bolts |
Specification data - Framing fasteners
Certification | ETA approval. |
Anchor length | 80–302 mm.Guidance for specification option: Dependent on thread diameter and end type. |
Thread diameter | 15 mm.21 mm.27.2 mm.31 mm.39.5 mm. |
End type | Foot mounted anchor DB 682. Waved anchor DB 682. |
Threaded inserts | Data clip. |
Materials | Stainless steel. Zinc plated steel. |
Sustainability data
Country of product manufacture | Germany |
Literature
Pfeifer Threaded DB Anchor Product Catalogue
