PFC Corofil Cavity Fire Stop With DPC

Verified by manufacturer 6 days ago

PFC Corofil Fire Stop Products

Full fill cavity barrier with DPC designed to be installed in external wall cavities and in the reveal around doors and windows.

Jump to:
+44 (0)20 8391 0533 Website

Application

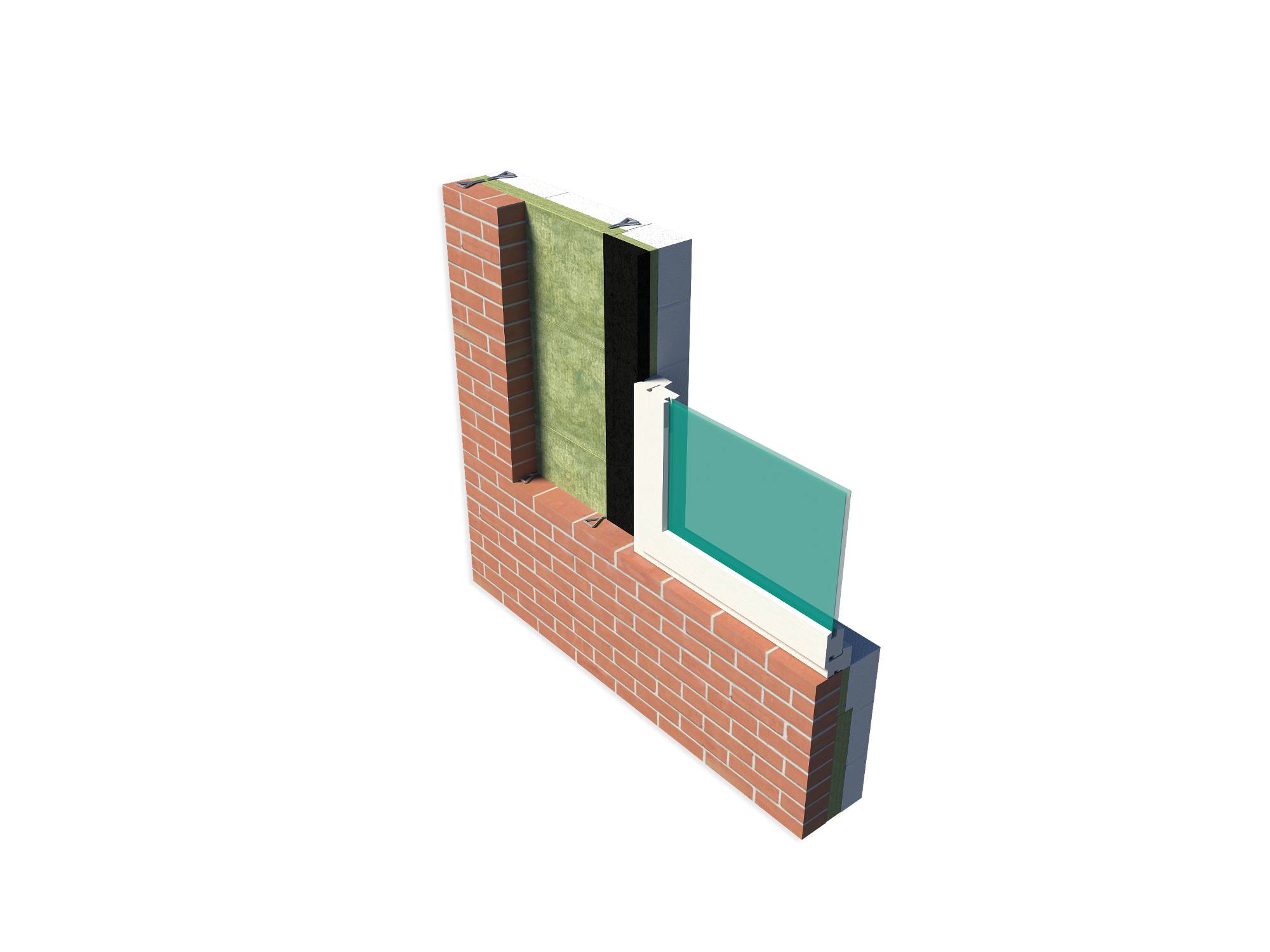

PFC Corofil Cavity Fire Stop with DPC is designed and tested to maintain the fire resistance performance within a cavity where the party wall intersects with the outer face of the building and in the reveal around doors and windows.

Description

PFC Corofil Cavity Fire Stop with DPC is a stonewool product with an integral polythene DPC adhered to its outer face. It has been tested to EN1366-4 in cavity widths up to 200mm and will provide 120 minutes fire integrity and insulation performance.

General information

Material

Rock mineral fibre

Guidance for specification option:

High density rock mineral fibre bonded to a polythene damp proof course (DPC).

Polyethene

Shape

Rectangle

Length

1000 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_80_81_51 Mineral wool fire-stoppingPrimary

CAWS

P12/40 Mineral wool rigid batts

P10/40 Insulation fitted betweenor to the face ofstuds

P12/360 Mineral wool rigid batts

Specification data - Mineral wool fire-stopping

Material

-

Standard

EN 1366-4.

Facing

Polyethylene.

Guidance for specification option:

Damp proof course (DPC).

Fire performance

EI 120.

Orientation

Vertical.

Thickness

100 mm.

Guidance for specification option:

Minimum thickness of cavity fire stop.

Cavity width

200 mm.

Guidance for specification option:

Maximum.

Sustainability data

Country of material origin

United Kingdom

Literature

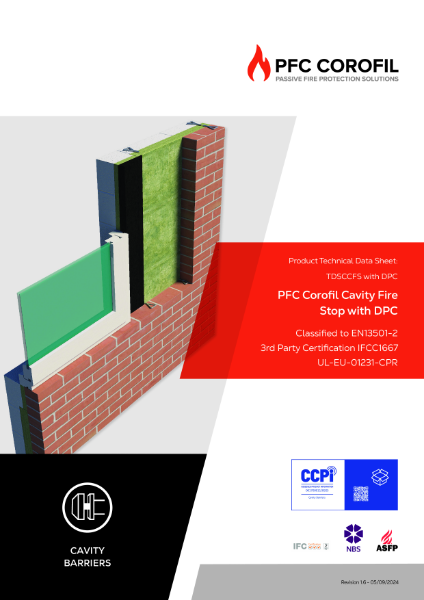

PFC Corofil Cavity Fire Stop with DPC - Datasheet

PFC Corofil Cavity Fire Stop with DPC - Datasheet
