Permavent Safeshield INT Class A2 Air and Vapour Control Layer - Class A2-s1,d0 Fire Safe AVCL

Verified by manufacturer 2 days ago

Permavent Ltd

Fire safe wall air and vapour control layer (AVCL).

Jump to:
+44 (0)1305 766703 Website

Application

Fire safe wall air and vapour control layer (AVCL).

Description

Safeshield INT Reflect AVCL is a high-performance air and vapour control layer that has a class A2-s1,d0 fire classification, with a low emissivity high-purity aluminium reflective surface.

Safeshield INT Reflect AVCL delivers enhanced thermal benefits when installed facing a still air cavity, improving the energy performance of the building.

Features and benefits:

  • Effective condensation control and airtightness within walling construction.
  • Unique patented composition resists the spread of fire, class A2-s1,d0 fire classification.
  • Flexible and easy to install.
  • High-purity aluminium surface, enhanced thermal performance.
  • Provides enhanced thermal benefits when installed facing a still air cavity.
  • Can be installed on any substrate.
  • Available in 1.25 x 50 m rolls.

General information

Color

Grey

Finish

Reflective

Material

Glass Fibre

Guidance for specification option:

Glass fibre aluminium.

Shape

Rectangle

Length

50000 mm

Width

1250 mm

Height

0.1 mm

Warranty description

15 year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

P10/310 Air and vapour control layer

P10/60 Air and vapour control layer

SKU Code

SAFESHIELD INT REFLECT

GTIN/EAN

5060747290978

Specification data - Plastics sheets

Product reference

Permavent Safeshield INT Class A2 Air and Vapour Control Layer.

Material

Glass fibre with aluminium reflective surface.

Purpose

Vapour control layer.

Performance characteristics

-

Tensile strength (minimum)

To BS EN 12311-1 (MD/CD), 1362/ 1349 N/50mm.

Tear resistance

To BS EN 12310-1 (MD/CD), 150/ 150 N.

Water vapour resistance (minimum)

Water vapour resistance (Sd): >2500 m.

Fire performance

Reaction to fire: To BS EN 13501-1, A2-s1, d0.

Environmental performance requirements

-

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100% recyclable content.

Physical properties

-

Colour

Grey.

Weight (minimum)

140 g/m².

Dimensions

-

Thickness (minimum)

0.1 mm.

Width (minimum)

1250 mm.

Roll length (minimum)

50 m.

CoverageArea

62.5 m².

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass Fibre

Guidance for specification option:

Glass fibre aluminium.

Recyclability

100% recyclable content.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

Lifetime

Literature

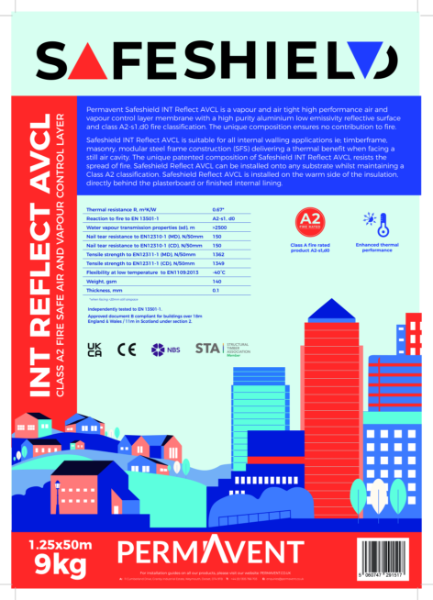

Safeshield INT Reflect AVCL

Safeshield INT Reflect AVCL
