PermaTEC LI Anti-Root Green Roof System

Guidance for specification option:

IKO Permaguard-F is a sand surfaced 180 g/m² polyester based bitumen membrane. It is installed as a protection layer into the final coat of the IKO Permatec whilst it is still hot.

• Product Colour: Black.
• Product Finish: Sand.
• Product Type: Hot Melt.
• Length: 20000 mm.
• Weight: 39 kg.
• Width: 1000 mm.
• Laid on hot Permatec.

Guidance for specification option:

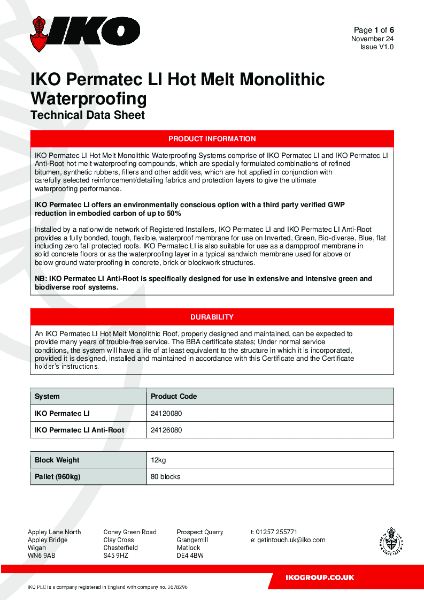

A hot-applied, specially formulated combination of refined bitumen, synthetic rubbers, fillers, other additives and anti-root chemicals. Used for green roof installations.

• Block weight: 12 kg.
• Material: Bituminous.
• Product Colour: Black.
• Product Type: Hot Melt.
• Applied on primed deck with Flash R reinforcement.

Guidance for specification option:

IKO enertherm WCL is used as a Water Flow reducing Layer between enertherm XPS insulation and the roof ballast layer in inverted roofs, including green and blue roof applications.

• Code: 30400001.
• Length: 100 m.
• Width: 1.5 m.
• Area per roll: 120 m².
• Loose laid.

Guidance for specification option:

A rigid and durable 20 mm drainage board multi-functionally designed to act as both a drainage layer and for water retention. EGR DBR20 allows for excess water to drain away therefore preventing the water logging of the substrate. The reservoir properties allow the water storage cells to retain additional water that can be diffused to the plants during prolonged dry periods (more than six weeks without rain). EGR DBR20 performs in line with requirement set forth by German FLL Guidelines and The GRO Green Roof Code.

• Code: EGR DBR20.
• Fire compliance: BS EN 13501-5:2016 and compliant to Broof(t4) classification.
• Dimensions: 2000 x 1000 x 20 mm (L x W x H).

Guidance for specification option:

A blend of water retaining aggregates, crushed brick and organic material mixed to provide an extensive substrate to meet customer specification. EGR EXTSUB performs in line with requirement set forth by German FLL Guidelines The GRO Green Roof Code.

• Code: EGR EXTSUB.
• Standard: Peat-free product and test results are compliant to BS 8616:2019.
• Fire compliance: BS EN 13501-5:2016 and compliant to Broof (t4) classification.

Guidance for specification option:

Retention edging that mitigates contamination of growing medium/substrate and plant species from the cobble border and thereafter drainage. It is perforated to allow water to drain through to outlets and gutters. It also completes the installation with an aesthetically neat finish by keeping the green/biodiverse roof system components in place. EGR TRM100 performs in line with requirement set forth by German FLL Guidelines and The GRO Green Roof Code.

• Code: EGR TRM100.
• Thickness: 1.5 mm.
• Length: 2500 mm.
• Height: 100 mm.
• Base: 80 mm.
• Colour: Mill finish (unpainted).

Guidance for specification option:

River-washed naturally rounded cobbles. EGR COB performs in line with requirement set forth by German FLL Guidelines and The GRO Green Roof Code.

• Code: EGR COB.
• Composition: 20—40 mm rounded stones.
• Fire classification: BS EN 13501-5:2016 and compliant to Broof (t4) classification.
• Packaging: available in bulk bags and 25 L sacks.

Guidance for specification option:

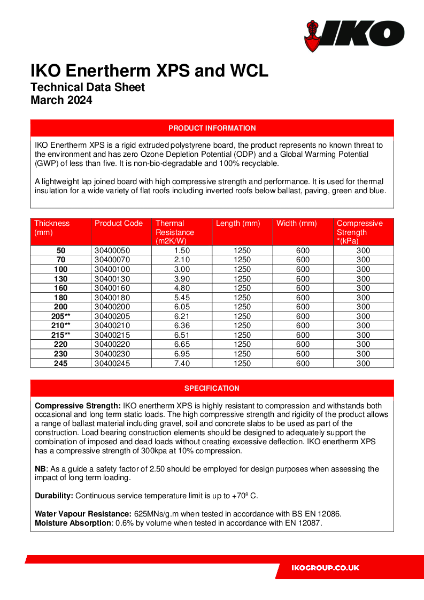

IKO enertherm XPS is a lightweight, lap joined board with high compressive strength and performance.

• Available in thickness 50—245 mm.
• Durability: Continuous service temperature limit is up to +70º C.
• Water Vapour Resistance: 625 MNs/g.m when tested in accordance with BS EN 12086.
• Moisture Absorption: 0.6% by volume when tested in accordance with EN 12087.
• Nominal Density: 32 kg/m³.
• Loose laid.

Guidance for specification option:

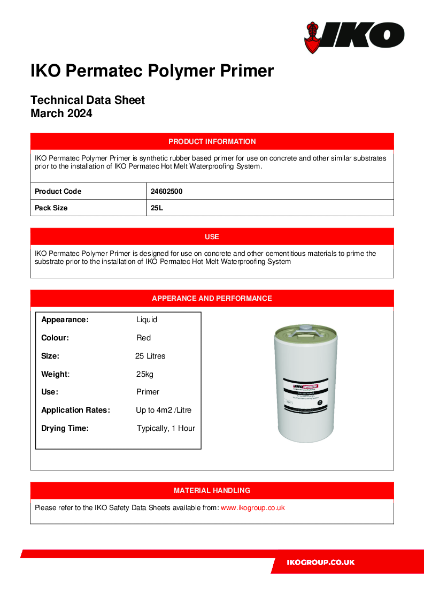

IKO Permatec Polymer Primer is synthetic rubber based primer for use on concrete and other similar substrates prior to the installation of IKO Permatec Hot Melt Waterproofing System.

• Code: 246025000.
• Appearance: Liquid.
• Colour: Red.
• Size: 25 Litres.
• Weight: 25 kg.
• Use: Primer.
• Application Rates: Up to 4 m²/Litre.
• Drying Time: Typically 1 Hour.

Guidance for specification option:

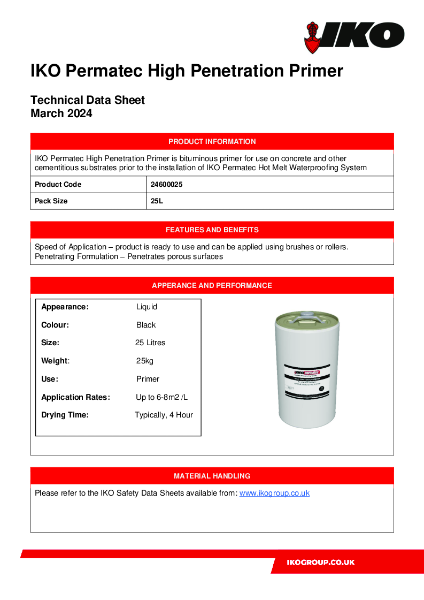

IKO Permatec High Penetration Primer is bituminous primer for use on concrete and other similar substrates prior to the installation of IKO Permatec Hot Melt Waterproofing System.

• Code: 24600025.
• Appearance: Liquid.
• Colour: Black.
• Size: 25 Litres.
• Weight: 25 kg.
• Use: Primer.
• Application Rates: Up to 6—8 m²/Litre.
• Drying Time: Typically 4 Hours.

Guidance for specification option:

Supplied by others.
