PermaTEC Anti-Root Green Roof System

Verified by manufacturer 3 months ago

AccuRoof

Hot melt monolithic waterproofing system.

Jump to:
+44 (0)1509 505714 Website

Application

PermaTEC Anti-Root is specifically designed for use in extensive and intensive green roof and biodiverse roof systems.

Description

PermaTEC Hot Melt Monolithic Waterproofing Systems include PermaTEC Anti-Root hot melt waterproofing compounds, that is specially formulated combinations of refined bitumen, synthetic rubbers, fillers and other additives, which are hot-applied in conjunction with carefully selected reinforcement/detailing fabrics and protection layers to give the ultimate waterproofing performance.


IKO Permatec Anti-Root is a monolithic root resistant hot melt waterproofing system, eliminating the need for a separate anti-root membrane, making the specification and installation process both simpler and more cost-effective. IKO Permatec Anti-Root is extremely tough, resistant to impact damage and supplied in easy to handle 12 kg blocks. It is also environmentally friendly with recycled content and zero wrapped.


Features and benefits:

  • Hot applied system.
  • Suitable for zero fall roof decks.
  • BBA Certified No. 03/4009.
  • Durable – lasts the design life of the building.
  • Nominal membrane thickness of 6 mm.
  • Tough and resistant to impact damage.
  • Excellent low temperature flexibility.
  • High bond strength to substrate - High tensile strength.
  • Homogenous and seamless.
  • Seamless application and rapid setting – resistant to rain, snow and frost immediately after application.
  • Integral root protection. No need for separate anti root barriers.
  • Virtually no packaging to be disposed of (zero wrapper waste).

General information

Color

Black

Finish

Other

Material

Bitumen

Rubber

Polystyrene

Polypropylene

Polymer

Show more

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Ss_45_40_47_28 Extensive green roof systemsPrimary
Ss_45_40_47_40 Intensive green roof systems

CAWS

Q37/110 Intensive green roof

Q37/130 Extensive green roof

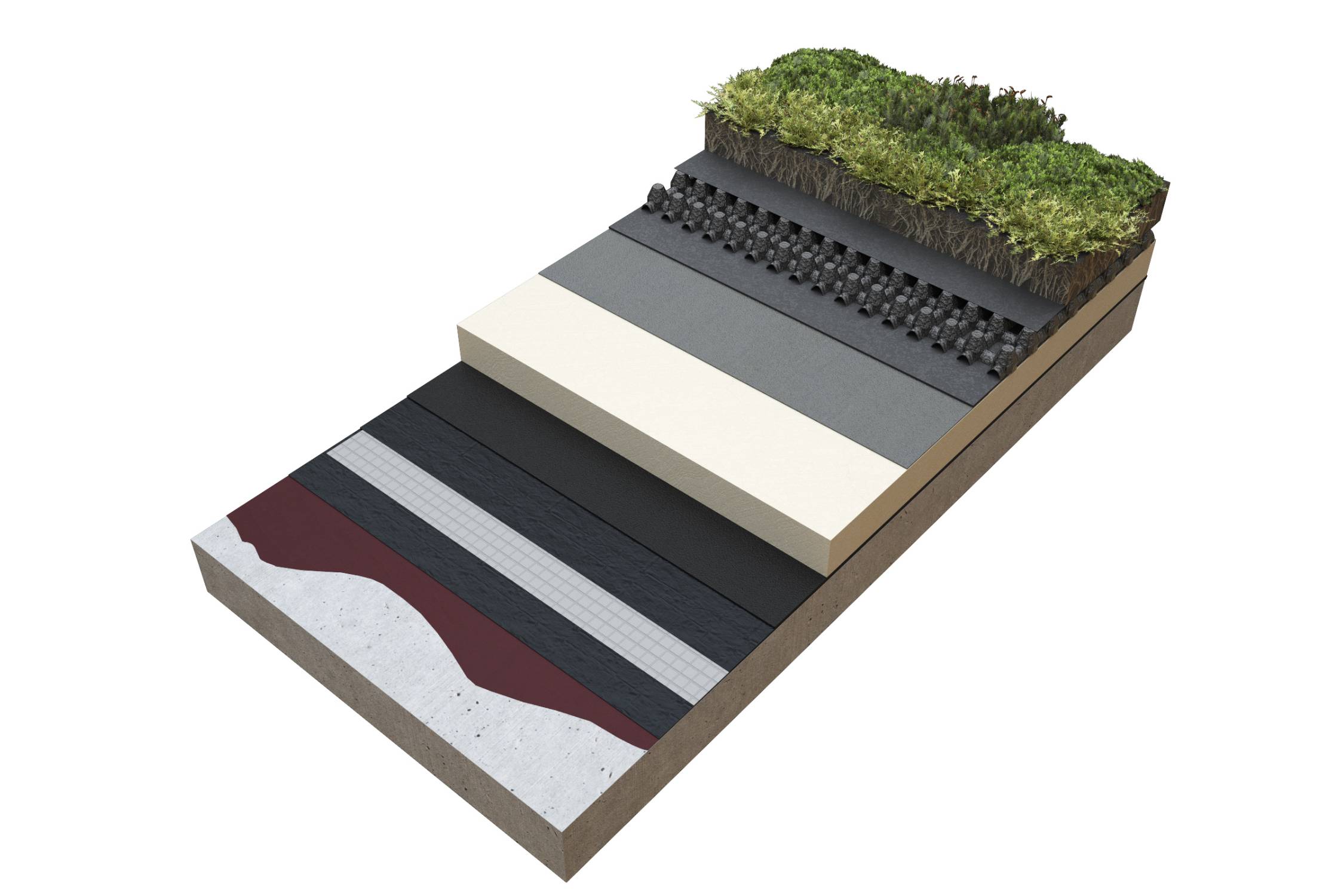

Specification data - Extensive green roof systems

System performance

Waterproofing.

Protection

-

Protection layer

Permaguard F Protection Sheet.

Guidance for specification option:

IKO Permaguard-F is a sand surfaced 180 g/m² polyester based bitumen membrane. It is installed as a protection layer into the final coat of the IKO Permatec whilst it is still hot.

  • Product Colour: Black.
  • Product Finish: Sand.
  • Product Type: Hot Melt.
  • Length: 20000 mm.
  • Weight: 39 kg.
  • Width: 1000 mm.
  • Laid on hot Permatec.


Root barrier

PermaTec Anti-Root.

Guidance for specification option:

A hot applied specially formulated combination of refined bitumen, synthetic rubbers, fillers, other additives and anti-root chemicals. Used for green roof installations.

  • Code: 24116080.
  • Block weight: 12 kg.
  • Material: Bituminous.
  • Product Colour: Black.
  • Product Type: Hot Melt.
  • Applied on primed deck with Flash R reinforment.

Separation layer

IKO enertherm water control layer.

Guidance for specification option:

IKO enertherm WCL is used as a Water Flow reducing Layer between enertherm XPS insulation and the roof ballast layer in inverted roofs, including green and blue roof applications.

  • Code: 30400001.
  • Length: 100 m.
  • Width: 1.5 m.
  • Area per roll: 120 m².
  • Loose laid.

Moisture control

-

Drainage layer

EGR DBR20 drainage board with filter fleece.

Guidance for specification option:

A rigid and durable 20 mm drainage board multi-functionally designed to act as both a drainage layer and for water retention. EGR DBR20 allows for excess water to drain away therefore preventing the water logging of the substrate. The reservoir properties allow the water storage cells to retain additional water that can be diffused to the plants during prolonged dry periods (more than six weeks without rain). EGR DBR20 performs in line with requirement set forth by German FLL Guidelines and The GRO Green Roof Code.

  • Code: EGR DBR20.
  • Fire compliance: BS EN 13501-5:2016 and compliant to Broof(t4) classification.
  • Dimensions: 2000 x 1000 x 20 mm (L x W x H).

Planting systems

-

Planting medium

EGR EXTSUB extensive growing medium.

Guidance for specification option:

A blend of water retaining aggregates, crushed brick and organic material mixed to provide an extensive substrate to meet customer specification. EGR EXTSUB performs in line with requirement set forth by German FLL Guidelines The GRO Green Roof Code.

  • Code: EGR EXTSUB.
  • Standard: Peat-free product and test results are compliant to BS 8616:2019.
  • Fire compliance: BS EN 13501-5:2016 and compliant to Broof (t4) classification.

Edge restraints

EGR TRM100 aluminium trim – 100 mm.

Guidance for specification option:

Retention edging that mitigates contamination of growing medium/substrate and plant species from the cobble border and thereafter drainage. It is perforated to allow water to drain through to outlets and gutters. It also completes the installation with an aesthetically neat finish by keeping the green/biodiverse roof system components in place. EGR TRM100 performs in line with requirement set forth by German FLL Guidelines and The GRO Green Roof Code.

  • Code: EGR TRM100.
  • Thickness: 1.5 mm.
  • Length: 2500 mm.
  • Height: 100 mm.
  • Base: 80 mm.
  • Colour: Mill finish (unpainted).

Ballast

EGR COB River-Washed Cobbles 20—40 mm.

Guidance for specification option:

River-washed naturally rounded cobbles. EGR COB performs in line with requirement set forth by German FLL Guidelines and The GRO Green Roof Code.

  • Code: EGR COB.
  • Composition: 20—40 mm rounded stones.
  • Fire classification: BS EN 13501-5:2016 and compliant to Broof (t4) classification.
  • Packaging: available in bulk bags and 25 L sacks.

Insulation

IKO enertherm XPS rigid extruded polystyrene (XPS) insulation.

Guidance for specification option:

IKO enertherm XPS is a lightweight, lap joined board with high compressive strength and performance.

  • Available in thickness 50—245 mm.
  • Durability: Continuous service temperature limit is up to +70º C.
  • Water Vapour Resistance: 625 MNs/g.m when tested in accordance with BS EN 12086.
  • Moisture Absorption: 0.6% by volume when tested in accordance with EN 12087.
  • Nominal Density: 32 kg/m³.
  • Loose laid.

Primer

IKO Permatec primer.

Guidance for specification option:

IKO Permatec Polymer Primer is synthetic rubber based primer for use on concrete and other similar substrates prior to the installation of IKO Permatec Hot Melt Waterproofing System.

  • Code: 246025000.
  • Appearance: Liquid.
  • Colour: Red.
  • Size: 25 Litres.
  • Weight: 25 kg.
  • Use: Primer.
  • Application Rates: Up to 4 m²/Litre.
  • Drying Time: Typically 1 Hour.

IKO Permatec high penetration primer.

Guidance for specification option:

IKO Permatec High Penetration Primer is bituminous primer for use on concrete and other similar substrates prior to the installation of IKO Permatec Hot Melt Waterproofing System.

  • Code: 24600025.
  • Appearance: Liquid.
  • Colour: Black.
  • Size: 25 Litres.
  • Weight: 25 kg.
  • Use: Primer.
  • Application Rates: Up to 6—8 m²/Litre.
  • Drying Time: Typically 4 Hours.

Base layer

Deck.

Guidance for specification option:

Supplied by others.
