PenoPatch
Verified by manufacturer 22 days ago
PP60FP – 60 mm Diameter
PP60FP – 60 mm Diameter
UL-EU Certified
Certificate type

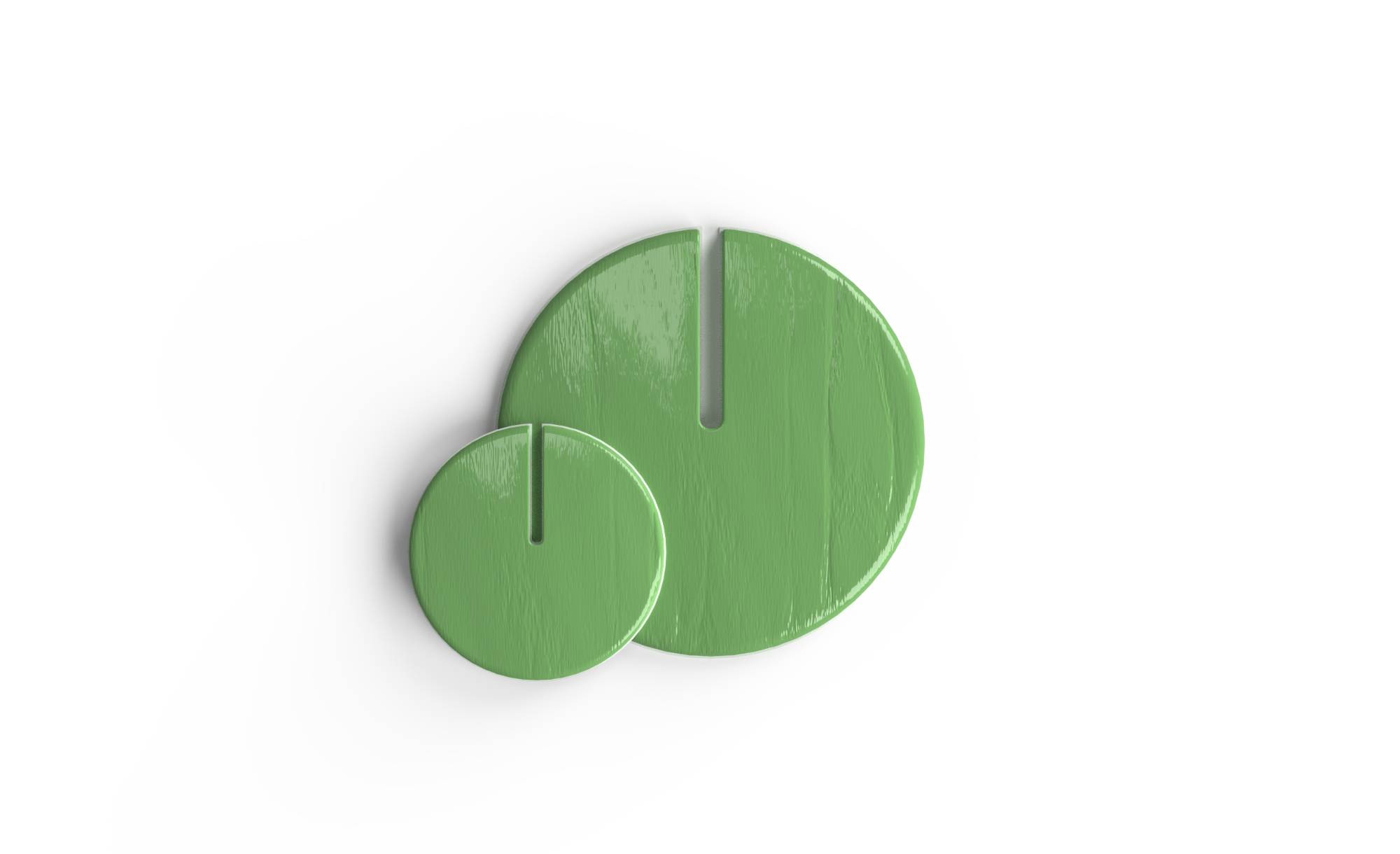

Fire resistance putty disc.
Application
Application/ use:
- To reinstate fire resistance through rigid and flexible walls.
- Single small plastic and metallic service penetrations.
- Small cable bunch service penetrations.
- Blank openings.
Description
PenoPatch Fire Resistant Sealing System is a putty-based system used to reinstate the fire resistance of wall constructions where small apertures are formed for the penetration of single or multiple services.
General information
Color | Green |
Material | Guidance for specification option: Fire resistant putty. |
Shape | Circle |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 60 mm.Guidance for specification option: Diameter. For penetrations seals, annular space and depth as per requirements of UL-EU-01129-CPR. |
Fire performance | To BS EN 1366-3:2009.Guidance for specification option: Fire resistance tests for service installations. Penetration seals, See UL-EU-01129-CPR for fire resistance performance. |
Sound insulation rating | To EN 10140, 67 dB. |
Density | ~2.1 g/cm³. |
Thickness | ~4 mm. |
Shelf life | 12 months. Guidance for specification option: If stored in accordance with storage conditions. |
Third-party certification | CE mark ETA-21/0051, UL-EU-01129-CPR, UAE CoC ENCG.R38118 UL-EU-01129-CPR; ISO 9001: 11378. |
Application temperature | +5°C to +35°C. Guidance for specification option: For unopened material, store in a well-ventilated, dry, cool environment. Recommended temp ranges +5°C to +35°C. Protect against exposure to direct sunlight. Always ensure that safe manual handling procedures are followed at all times. |
Colour | Green. |
Materials | Fire resistant putty. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Guidance for specification option: Fire resistant putty. |
Recyclability | Guidance for specification option: The product cannot currently be recycled or incinerated for energy capture. |
Third party certifications
UL-EU Certified
UL-EU-01129-EN - PenoPatch
