PipeBloc® EL
Verified by manufacturer 2 months ago
UL-EU Certified
Certificate type

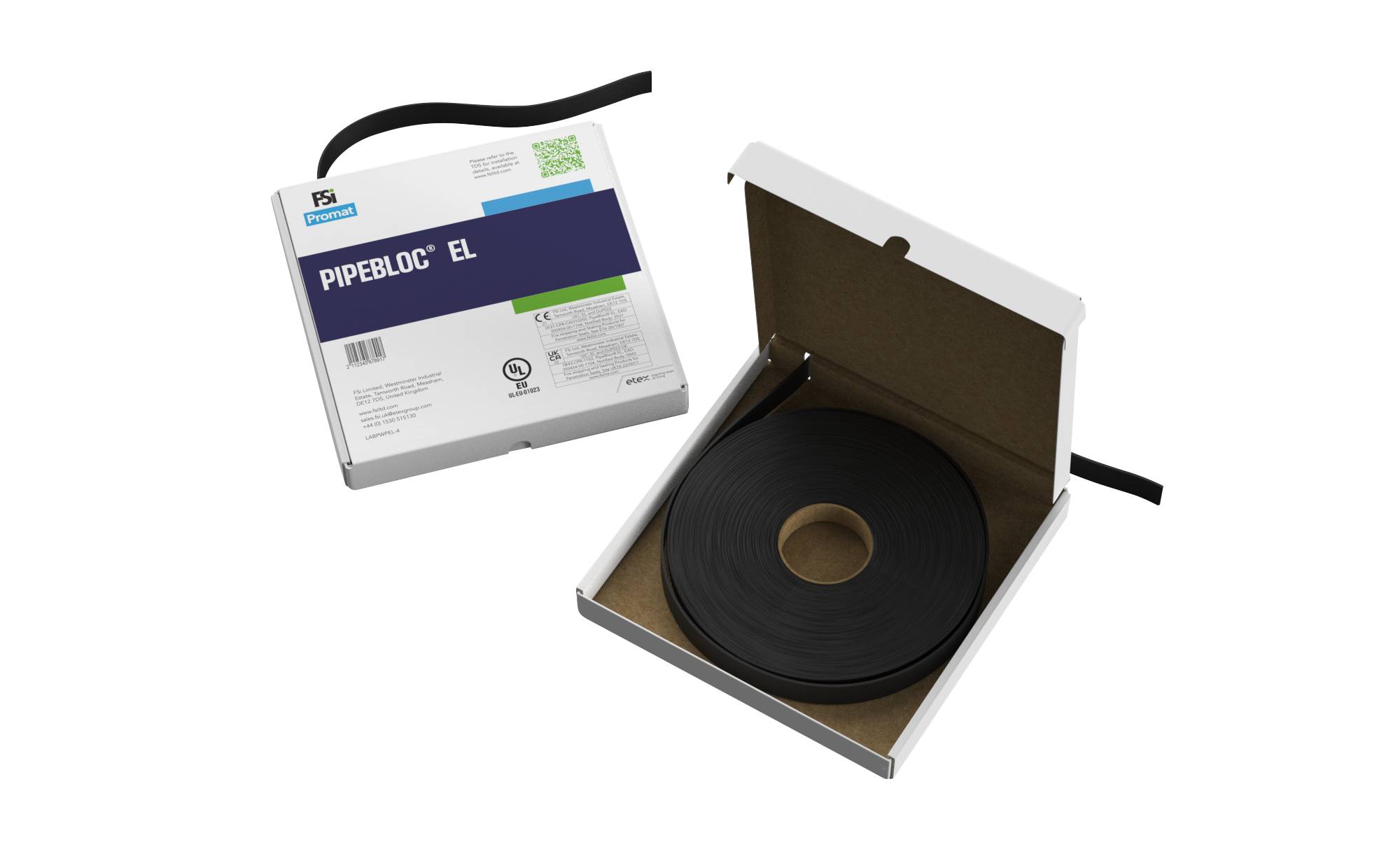

Pipebloc EL is a fire resistant wrap on a roll consisting of 25 m.
Application
Application / Use:
- To reinstate fire resistance through walls and floors where combustible services penetrate the substrate.
- Used in conjunction with FSi products such as Stopseal Batt, Silverseal Compound and Pyrocoustic Sealant.
Description
Pipebloc EL is a fire resistant wrap on a roll consisting of 25m
of self adhesive intumescent for interior penetration sealing
applications. Pipebloc EL is designed to provide a high
volume expansion and pressure seal during a fire to
combustible pipes that pass through floor and wall service
openings. Pipebloc EL is useful when the pipe diameter is
unknown.
General information
Color | Black Grey |
Material | Intumescent Guidance for specification option: Self-adhesive intumescent. |
Shape | Other Guidance for specification option: Roll |
Length | 25000 mm |
Width | 40 mm |
Uniclass | |
CAWS | P12/44 Pipe collar - insulated wrap |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 25 000 x 40 mm.Guidance for specification option: Roll size. |
Fire performance | To BS EN 1366-3:2009 and BS EN 13501-2:2016.Guidance for specification option:
|
Weight | ~2.5 kg. |
Application temperature | +5°C to +35°C. Guidance for specification option: Recommended temp ranges +5°C to +35°C, however can be -20°C min to +70°C max. |
Shelf life | Five year. Guidance for specification option: (from date of production). |
Colours | Black. Grey. |
Third-party certification | CE Mark ETA-20-1007, UL-EU-01023-CPR, UAE CoC; ISO 9001: 11378. |
Sustainability data
Material | Intumescent Guidance for specification option: Self-adhesive intumescent. |
Third party certifications
UL-EU Certified
UL-EU-01023-CPR - PipeBloc EL
Literature
TDS022 - V1.3 - PipeBloc EL - July 2024
SDS033 - V3.0 - Article - PipeBloc EL
PipeBloc EL - DoP
