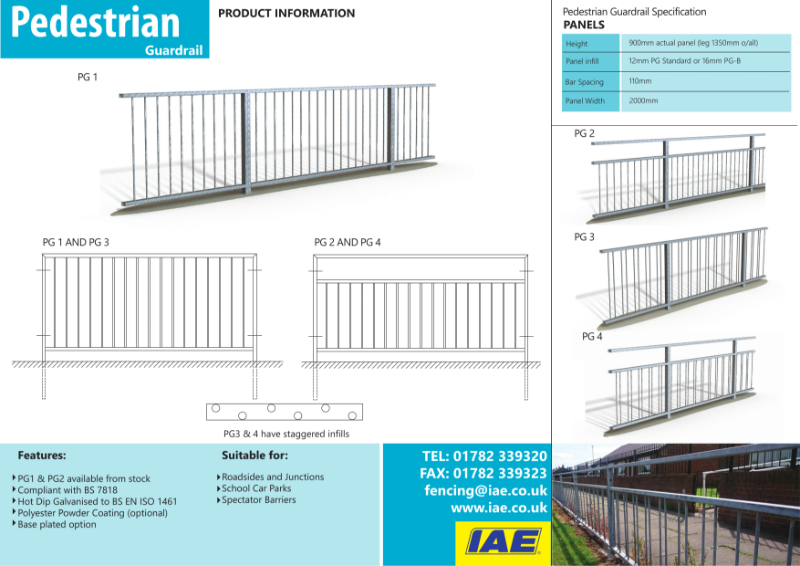

Pedestrian Guardrail PG1, PG2, School and Crossing
Verified by manufacturer 6 months ago
Pedestrian guardrails.
Application
Suitable for:
- Pavements.
- Ground control areas.
- Sporting facilities.
- Schools.
Description
Pedestrian guardrails designed to protect adults and children at road junctions and crossings. Pedestrian guardrails are also suitable as perimeter fences to running tracks and play areas.
Standard panels are 2000 mm long and manufactured from 50 x 30 mm rectangular hollow section (RHS) frame, with either a 12 mm or 16 mm diameter infill set at 110 mm centres.
Features and benefits:
- Suitable for multiple applications.
- Hot dip galvanized to BS EN ISO 1461.
- Alternative railing types available - PG1 and PG2.
- Low security level.
- Laser cut and robotically welded using modern folding and bending machines.
General information
Color | Green Silver Other |
Finish | Galvanized Powder-coated |
Material | Metal |
Shape | Rectangle |
Length | Bespoke |
Width | 2000 mm |
Height | 900 mm Guidance for specification option: Panel height. 1350 mm Guidance for specification option: Overall height. |
Warranty description | Ten year |
Uniclass | |
CAWS | Q40/340 Steel vertical bar fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Metal vertical bar pedestrian guard rail systems
Standard | To BS 7818. |
Posts | 50 x 30 mm RHS posts. |
Panels | Steel framed vertical bar and rail panels - PG1.Steel framed vertical bar and rail panels - PG2. |
Site applied finishes | Hot dip galvanized.Guidance for specification option: To BS EN ISO 1461. Polyester powder-coated.Guidance for specification option: Insert colour requirement. |
System accessories | Not required.Base plated. |
Spacing | 110 mm. Manufacturer guidanceBar spacing. |
Panel infill | 12 mm PG. Guidance for specification option: As standard. 16 mm PG-B. Manufacturer guidanceDiameter of the infill. |
Dimensions | 900 x 2000 mm (panel height). Manufacturer guidanceH x W. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/unit Self declared |
Recyclability | 100 |
