Pecavoid CB Substructure Formwork

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

MAX FRANK Ltd

Polystyrene permanent formwork primarily to prevent the effects of ground movement on foundations and slabs.

Jump to:
+44 (0)1782 598041 www.maxfrank.com
Description

Foundations can be affected by ground movement caused by volumetric changes in the swelling expandable soils, which is generally caused by the variations and fluctuations in moisture levels of the soil. Changes in weather and the removal of vegetation also often affect ground moisture levels of the soil.

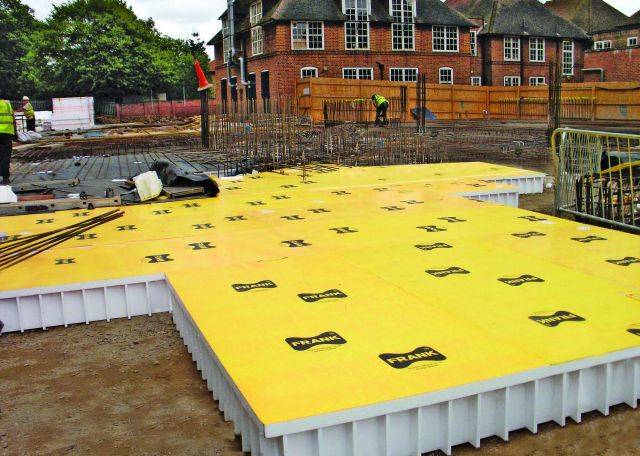

Pecavoid is a BBA approved cellular void former, designed to combat the effects of ground heave on suspended piled foundations and suspended slabs. Widely used in the construction of industrial, commercial and residential buildings, Pecavoid is independently tested, meets NHBC and other major warranty schemes for residential housing developments with their technical requirements and is certified by the British Board of Agrément.

Pecavoid significantly reduces uplift pressure caused by the expanding clay on suspended structural elements (suspended rafts, pile caps, ground beams and slabs). It is designed to compress when ground heave takes place and is manufactured from interlocking sections of light weight expanded polystyrene and is easy to install.

Benefits:

  • Reduces uplift pressure, protecting buildings and foundations.
  • Easy to install and achieves the required void.
  • Fully compatible with Pecafil® permanent formwork.
  • Does not degrade or contain CFCs or HCFCs.
  • Pecavoid® materials are produced in an ISO 9001: 2008 approved factory.
  • Pecavoid can also be supplied with a topping that increases the thermal performance of the building.

General information
Color

White

Material

Expanded Polystyrene

WarrantyDescription

1 Year Warranty

Uniclass 2015 Collapsible board substructure formwork (Pr_25_71_29_15)
Specification data
Product Reference

Pecavoid CB

4.5 mm thick twin wall polypropylene top, for use under reinforced concrete ground beams.

Pecavoid CL

10 mm thick twin wall polypropylene top, for use under suspended, reinforced concrete slabs.

Pecavoid CS

2 mm thick polypropylene top sheet plus 50 mm EPS panel for use under suspended, reinforced concrete slabs,

Pecavoid RD+

Reduced depth range, 2 mm thick polypropylene top sheet plus 50 mm EPS panel for use under suspended, reinforced concrete slabs.

Pecavoid RDB

Reduced depth range, 4.5 mm thick twin wall polypropylene top, for use under reinforced concrete ground beams.

Pecavoid RDS

Reduced depth range, 10 mm thick twin wall polypropylene top, for use under suspended, reinforced concrete slabs.

Width

Insert requirement from 'Options' below.

Depth

85 mm

For RBD only.

90 mm

For RDS only.

100 mm

For CB only.

105 mm

For CL only.

130 mm

For RD+ only.

150 mm

For CS only.

155 mm

For RBD only.

160 mm

For RDS only.

175 mm

For CB only.

180 mm

For CL only.

200 mm

For RD+ only.

220 mm

For RBD only.

225 mm

For RDS and CS only.

250 mm

For CB only.

255 mm

For CL only.

265 mm

For RD+ only.

300 mm

For CB and CS only.

305 mm

For CL only.

350 mm

For CS only.

Grade

8/12

For CB, CL and CS only.

9/13

For RD+, RBD and RDS only.

10/15

For CB, CL and CS only.

13/19

For RD+, RBD and RDS only.

15/22

For CB, CL and CS only.

18/24

For RD+, RBD and RDS only.

20/30

For CB, CL and CS only.

24/32

For RD+, RBD and RDS only.

Standard product features

Base:

Cellular EPS.

Length:

2400 mm.

Product Options

Width:

  • Pecavoid CB and RDB: Available 350–1200 mm.
  • Pecavoid CL, CS, RD and RDS: 1200 mm.

Depth:

In relation to NHBC Clear Void Requirements:

- 50 mm:

  • CB: 100 mm.
  • CL: 105 mm.
  • CS: 150 mm.
  • RD+: 130 mm.
  • RDB: 85 mm.
  • RDS: 90 mm.

- 100 mm:

  • CB: 175 mm.
  • CL: 180 mm.
  • CS: 225 mm.
  • RD+: 200 mm.
  • RDB: 155 mm.
  • RDS: 160 mm.

- 150 mm:

  • CB: 250 mm.
  • CL: 255 mm.
  • CS: 300 mm.
  • RD+: 265 mm.
  • RDB: 220 mm.
  • RDS: 225 mm.

- 200 mm:

  • CB: 300 mm.
  • CL: 305 mm.
  • CS: 350 mm.

Grade:

  • 8/12: Safe load: 8 kN/m²; fail load: 12 kN/m².
  • 9/13: Safe load: 9 kN/m²; fail load: 13 kN/m².
  • 10/15: Safe load: 10 kN/m²; fail load: 15 kN/m².
  • 13/29: Safe load: 13 kN/m²; fail load: 19 kN/m².
  • 15/22: Safe load: 15 kN/m²; fail load: 22 kN/m².
  • 18/24: Safe load: 18 kN/m²; fail load: 24 kN/m².
  • 20/30: Safe load: 20 kN/m²; fail load: 30 kN/m².
  • 24/32: Safe load: 24 kN/m²; fail load: 32 kN/m².

Permissible slab/ beam thicknesses (maximum):

  • 8/12: 260 mm.
  • 9/13: 300 mm.
  • 10/15: 340 mm.
  • 13/19: 460 mm.
  • 15/22: 540 mm.
  • 18/24: 660 mm.
  • 20/30: 740 mm.
  • 24/32: 900 mm.

Thermal resistance:

Consult manufacturer's literature for thermal details when using EPS insulation above Pecavoid®.
