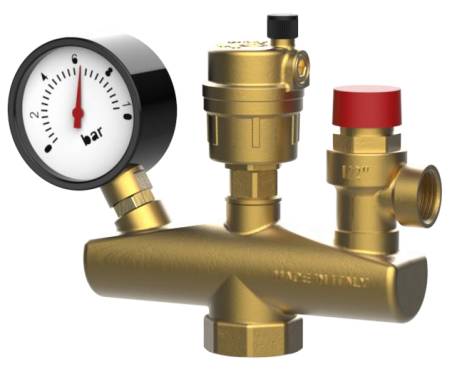

PE135.33.G Instrument Holder
Verified by manufacturer 22 days ago
Instrument Holder for Heat Pump Systems with Pressure gauge, safety valve and automatic air vent with check valve for easy service.
Application
For use in Heat pump systems allowing for the easy reading of system static pressure, pressure safety valve and an automatic air vent.
Description
Pressure gauge and automatic air vent with check valve for easy service.
Features and benefits:
- Automatic air vent.
- Pressure gauge/manometer.
- Safety valve.
- Insulation shell.
General information
Color | Gold |
Finish | Brass |
Material | Brass |
Shape | Other |
Width | 184 mm |
Height | 136 mm |
Warranty description | Five year |
Uniclass | |
CAWS | S90/620 Valves generally S90/630 Double-check valve assemblies |
Specification data - Automatic air vents
Arrangement | Vertical inlet with integral pressure gauge and check valve. |
Material | Brass CW617N to UNI EN 12165. |
Connections | Threaded. |
Connection sizes | 1" BSP female. |
Pressure | PN10 (maximum). |
Operating temperature | Maximum working temperature: 100°C. |
Accessories | Not required. PE135.GUS - Instrument holder manifold insulation jacket. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Material | Brass |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
