PCM-DS Cycle Store
Application

Suitable for residential developments both new build or refurbishment schemes.

Description

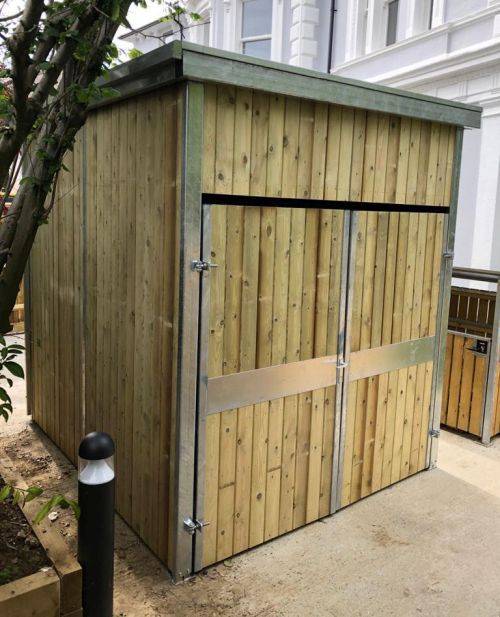

Modular cycle store unit, designed for maximum storage within the available footprint with an increased height and depth to accommodate double-stacking cycle racks.

Provides a neat, secure cycle storage solution that helps to prevent opportunistic crime and assists in decluttering communal areas. Continuous double doors along the front elevation provides access to the double stacked cycle racking system.

Features and benefits:

  • Durable construction, with a fully welded, heavy-duty steel frame manufactured in accordance with BS EN 1090, and galvanized to BS EN 1461.
  • Compact unit, fitted with double stack racks to achieve a balance between footprint and maximum storage capacity.
  • WILD® greenroof system option available.
  • A range of cladding and finish options are available (including vandal resistant steel, HDPE and hardwood slatted panels) to suit project requirements. PCM panel module cladding can be specified from a wide range of standard options.
  • Compatibility: Consistent design themes can be achieved along with other metroSTOR products.
  • Manufactured with heavy-duty components.
  • Highly configurable lock case accommodates lock only and deadlock with key management options and also mechanical or powered keypad access.
  • CE marked.

Fire performance:

  • Fire retardant options for tongue and groove v-jointed (TGV) and sheet type cladding have a fireboard MgO internal liner with either treated timber or coated steel panel outer to provide Euro-class A1, UK class 0 reaction to fire. The panels are manufactured from materials of limited combustibility throughout to provide 30 minutes' fire resistance to BS 476.
  • Where fire retardant properties are required for an open-spaced cladding type, SE timber plank can be specified with a treatment process providing a Euro-class B, UK class 0 Reaction to Fire classification.

Applications:

Suitable for residential developments both new build or refurbishment schemes.

General information
Uniclass 2015
Pr_40_30_21_11 Carbon steel cycle lockersPrimary
CAWS

B91/395 Storage unit

Specification data - Carbon steel cycle lockers
Product Reference

PCM-DS Cycle Store

Type

PCM-DS 1

10 cycles. Width: 2712 mm.

PCM-DS 2

20 cycles. Width: 5110 mm.

PCM-DS 3

30 cycles. Width: 7508 mm.

PCM-DS 4

40 cycles. Width: 9903 mm.

Cladding/ Finish

See 'Options' below and insert requirements.

Roof

Standard

WILD® greenroof system

Consult manufacturer for details and insert requirements.

Locking

Latch and code secure lock

Mechanical code lock with code secured entrance.

Latch and eurocylinder lock

Self-latching daybolt. Eurocylinder key-operated self-latching bolt lock.

Latch and FB2 key lock

Self-latching daybolt. FB2 lever key-operated self-latching bolt lock.

Latch and triangle key lock

Self-latching daybolt. Triangle key-operated self-latching bolt lock.

Latch only

Self-latching daybolt. No bolt lock.

Slide bolt and padlock

Self-latching daybolt. Integral slide bolt/ handle with padlock provision.

Standard product features

Size (h x d):

3052 x 3264 mm.

Door configuration:

Double door per unit.

Cycle rack:

Double stacked rack, 10 cycles per rack.

Product Options

Cladding/ Finish:

- Timber (ForestPanel™):

  • ForestPanel™ TG: FSC European redwood with a light green finish and 125 mm TGV planks.
  • ForestPanel™ TG Colour: FSC European redwood in a choice of coloured woodstains (Classic collection), and 125 mm TGV planks. Consult manufacturer and insert requirements.
  • ForestPanel™ TG FR: FSC European redwood with a light green external finish, fire-retardant coating and 125 mm TGV planks.

- SSAB steel panels (Firenze™):

  • Firenze™ Anthracite: Plastisol P200® coating, finished in anthracite grey.
  • Firenze™ Anthracite FR: Plastisol P200® coating, finished in anthracite grey. Includes fireboard MgO core internal liner.
  • Firenze™ Black: Plastisol P200® coating, finished in black.
  • Firenze™ Black FR: Plastisol P200® coating, finished in black. Includes fireboard MgO core internal liner.
  • Firenze™ Blue FR: Plastisol P200® coating, finished in cornflower blue. Includes fireboard MgO core internal liner.
  • Firenze™ Green FR: Plastisol P200® coating, finished in juniper green. Includes fireboard MgO core internal liner.
  • Firenze™ Grey: Plastisol P200® coating, finished in goosewing grey.
  • Firenze™ Grey FR: Plastisol P200® coating, finished in goosewing grey. Includes fireboard MgO core internal liner.
  • Firenze™ Mushroom FR: Plastisol P200® coating, finished in mushroom. Includes fireboard MgO core internal liner.

- Galvanized steel panels (Firenze™):

  • Firenze™ Design Wrap: SAV graphic design finish. Custom design. Consult manufacturer and insert requirements.
  • Firenze™ Design Wrap FR: SAV graphic design finish. Custom design. Includes fireboard MgO core internal liner. Consult manufacturer and insert requirements.
  • Firenze™ Freestyle: R5-T8 perforated pattern and powder-coated finish. Custom design. Consult manufacturer and insert requirements.

- High density polyethylene (HDPE - Tuffplas™):

  • Tuffplas™ Black: HDPE, 100% recycled. Black woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Brown: HDPE, 100% recycled. Brown woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Green: HDPE, 100% recycled. Green woodgrain finish. 100 mm SE plank.
  • Tuffplas™ Grey: HDPE, 100% recycled. Grey woodgrain finish. 100 mm SE plank.
  • Tuffplas™ TG Black: HDPE, 100% recycled. Black woodgrain finish. 140 mm TGV plank.
  • Tuffplas™ TG Brown: HDPE, 100% recycled. Brown woodgrain finish. 140 mm TGV plank.
  • Tuffplas™ TG Grey: HDPE, 100% recycled. Grey woodgrain finish. 140 mm TGV plank.

Locking:

  • 100% stainless steel mechanism.
  • Aluminium handles (latch mechanisms).
