This product is no longer available

Application

Terraces, podiums, roof decks and gardens.

Description

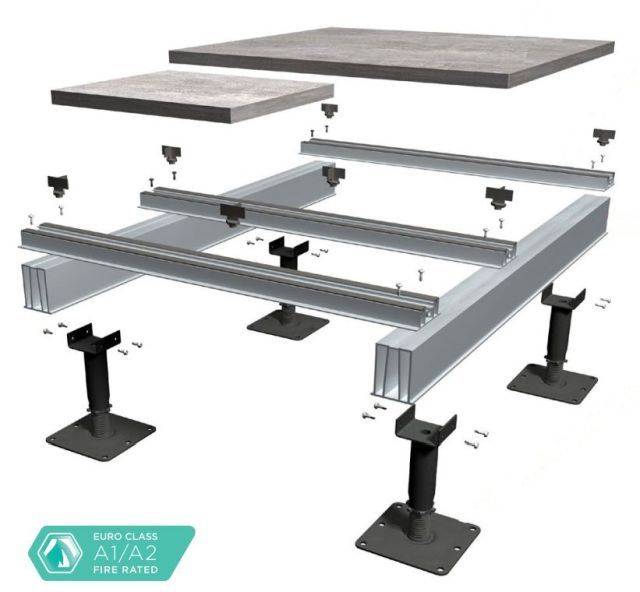

Class A fire-rated non-combustible paving support rail system. The strong aluminium joists overlap to create a lattice framework which provides a completely rigid platform with the maximum possible level of support for porcelain tiles.

Features and benefits:

  • Achieves A1 fire rating to British Standard EN 13501-1.
  • Lattice framework allows for more intricate paving formats.
  • High compressive strength.
  • Allows for water drainage through the paving.
  • Spacers are provided which are inserted into the top rail, secured by a twist-lock function which prevents the movement of slabs.
  • Resistant to moulds, algae, alkali, bitumen and ultraviolet (UV).

Applications:

Terraces, podiums, roof decks and gardens.

General information
Material

Top rail and lower joist: Aluminium Alloy 6063, T6

Supporting pedestals: Carbon steel with zinc nickel corrosion-resistant finish

Spacers: Glass-filled nylon

Uniclass 2015 Decking and paving pedestals (Pr_20_85_47_22)
Specification data
Product Reference

PaveRail™ Non-Combustible Paving System

Lower joist depth

25 mm

60 mm

Finish (top rail and lower joist)

Mill finish

Standard.

Powder coated, RAL

Any standard RAL colour available, insert requirements.

Spacer tab width

2 mm

4 mm

Supporting pedestals

RD-FR-1

25–35 mm adjustable pedestal.

RD-FR-2

35–50 mm adjustable pedestal.

RD-FR-3

50–70 mm adjustable pedestal.

RD-FR-4

70–115 mm adjustable pedestal.

RD-FR-5

115–205 mm adjustable pedestal.

RD-FR-6

205–305 mm adjustable pedestal.

RD-FR-7

305–405 mm adjustable pedestal.

RD-FR-8

405–505 mm adjustable pedestal.

Standard product features

System height (overall):

117–612 mm (depending on lower joist and supporting pedestal height). Consult manufacturer’s literature for further details.

Supplied lengths (top rail and lower joist):

3600 mm.

Material:

  • Top rail and lower joist: Aluminium Alloy 6063, T6.
  • Supporting pedestals: Carbon steel with zinc nickel corrosion-resistant finish.
  • Spacers: Glass-filled nylon.

Allowable load:

  • Uniformly distributed: 4.0 kN/m².
  • Concentrated: 1.4 kN.

Product Options

Spacer tabs:

For equal spacing between slabs.

Allowable span:

- Top rail:

600 mm.

- Lower joist:

  • 25 mm depth: 600 mm.
  • 60 mm depth: 1200 mm.
