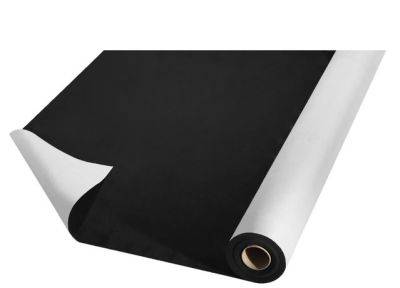

Pavatex FBA
Verified by manufacturer 5 months ago
Facade membrane with high UV resistance.
Application
For open rear-ventilated facades with a maximum joint size of 30 mm.
Description
Facade membrane which is both vapour-permeable and highly UV-resistant. The membrane protects the construction reliably from precipitation and serves as windproofing whilst meeting visual requirements for open cladding. The black coating is resistant to direct and indirect UV radiation and makes the product very durable. As a result, the membrane meets the high requirements of SIA 232/2 and BS EN 13859-2, withstanding the 5000 hour UV test. If mechanically secured, it can be left exposed to the weather for three months. Bonding of the longitudinal joints can be done with Pavafix or Pavabond.
Features and benefits:
- Breather membrane with proven long-term moisture protection for clad walls with up to 30 mm open jointed cladding.
- The highly UV-resistant membrane withstands the 5000 hour UV test (providing durable and discreet protection for the building).
- Matching system accessories including Pavatex system guarantee.
- CE marked.
General information
Color | Black |
Material | Polyester Guidance for specification option: Coated polyester. |
Size | 1.5 x 50 m |
Uniclass | |
CAWS | P10/310 Air and vapour control layer |
Product range |
Specification data - Plastics sheets
Material | Polyester. |
Standard | To BS EN 13859-2. |
Performance characteristics | |
Tensile strength (minimum) | Longitudinal, 270 N/50 mm / Transversal, 230 N/50 mm. |
Tear resistance | 110 N. |
Elongation to break | 35%. |
Fire performance | To BS EN 13501–1, E. |
UV stabilization | To BS EN 13859-2, 5000 hours. |
Physical properties | |
Colour | Black. |
Weight (minimum) | 200 g/m². |
Dimensions | |
Thickness (minimum) | 0.35 mm. |
Width (minimum) | 1.5 m. |
Roll length (minimum) | 50 m. |
Sd value | 0.02 m. |
Resistance to water penetration | W1. |
Temperature resistance | -40 to +80°C. |
Dimensional stability | Longitudinal:, 0.1% / Transversal, 0.2%. |
