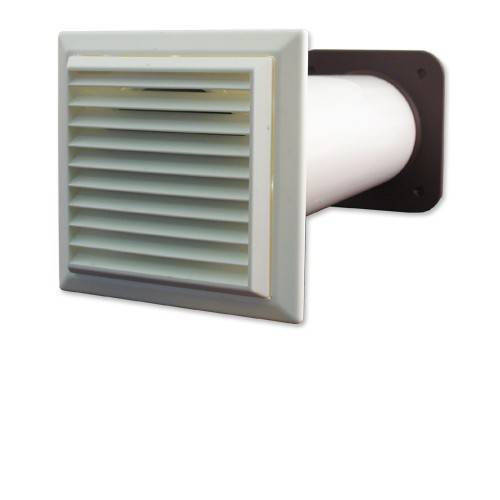

Passive Vapour Vent MK2
Verified by manufacturer 8 months ago
Extendable Type
Extendable Type
Passive dehumidifier to increase room ventilation, helps prevent black mould.
Application
For increasing room ventilation. Suitable for most wall thicknesses.
Description
The Passive Vapour Vent MK2 contains a permeable membrane within the main plastic circular tube. This encourages moisture migration due the differences between external and internal temperature and air pressure. The membrane acts as a molecular sieve, allowing water vapour to pass to the outside whilst resisting rapid air movement and therefore heat loss. The vent is also fitted with a specially designed cowl which counteracts the detrimental effects of external wind on performance.
Features and benefits:
- No moving parts.
- Works passively 24 hours a day (a passive dehumidifier).
- Quiet operation (generates no noise).
- Low installation cost.
- Available in standard, extendable or high rise version.
- Reduces draughty air flow and heat loss.
- Works at peak condensation times.
- No night time disturbances from compressors or fans.
General information
Color | White |
Uniclass | |
CAWS | U90/340 Through wall ventilator ducts U90/340 Through wall ventilator ducts |
Specification data - External wall grilles
Size | 102 mm diameter. |
Tube diameter | 102 mm. 152 mm. |
Tube length | 350–600 mm. Guidance for specification option: Extendable only. |

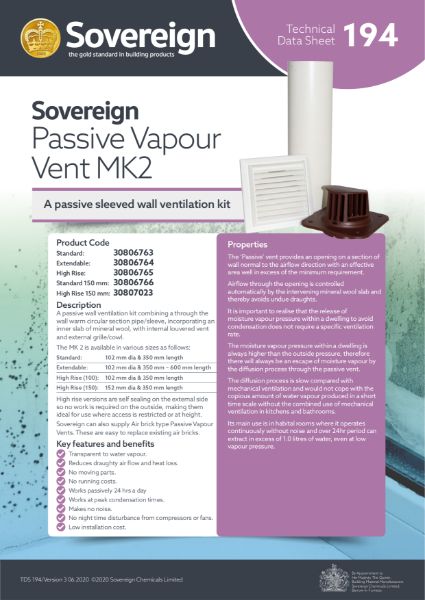

Literature
Passive Vapour Vent MK2
