Bi-Folding Trackless Speed Gate

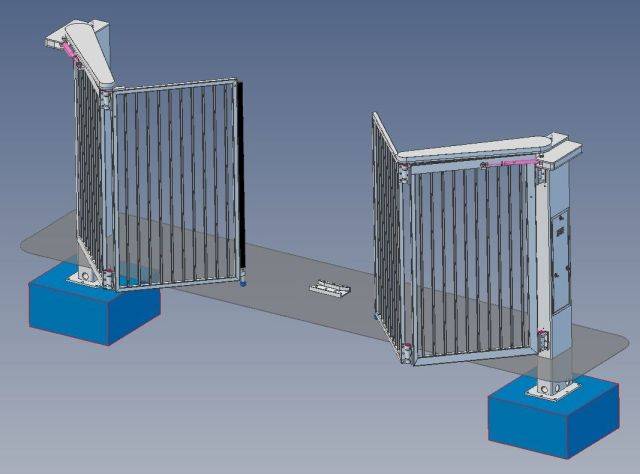

The Eagle trackless bi-folding speed gate comprises a unique drive mechanism to control the opening and closing of a bi folding set of gates. This mechanism converts and controls both leaves producing a smooth but fast action. This unique design allows the gate to operate without the use of a bottom or top track, thus eliminating any height restrictions and large tracks in the road.


On entrance activation, the gates open in a quick but safe folding action. On approaching the gates from the inside, a vehicle will drive over an internal safety/exit loop. Traffic lights, if installed, indicate the gates are about to move and go green when safe to enter or exit. The gates stay open and then close after all the safety devices are clear and/or after a set time. An anti-tail gate function can be enabled to control traffic flow.


  • Galvanized and powder coated finish.
  • Heavy duty hydraulic ram with PLC controlled slowdown in both opening and closing movement.
  • Hydraulic design, low maintenance with minimal moving parts.
  • Smooth and quiet operation.
  • Trackless design, no height restrictions and lower maintenance.
  • Very secure with opening and closing in approximately 7 seconds.

General information


[Size, Typically, the height of the gate is 2400 mm but can be designed to unique requirements with the manufacturer's in house design team]



Pr_30_59_59_79 Sliding vehicular barriersPrimary


Q40/45 Gates

Q40/560 Steel

Q40/570 Gates

Q41/190 Vehicle access point barriers

Q50/120 Steel gate

Q50/130 Gate

Q50/15 Steel gate

Q50/20 Gate

Specification data - Sliding vehicular barriers

Product Reference




Insert colour requirement.

Access control

Automatic Number Plate Recognition (ANPR)

Card reader

Digital keypad

Radio control system

Push button control

Gate infill

Not required

Acoustic solid


Bar and Weldmesh



Perforated steel sheet


Special order

Insert requirements.

Top protection

Not required

55 mm serrated edge

Barbed tape

Barbed wire

Long blunted spikes

Palisade struts

Rotating serrated edge on a revolving tube

Rotating spikes




Traffic lights

Standard product features


Manufactured from 50 x 50 mm carbon steel box section with 25 mm bars spaced at approximately 100 mm intervals.


400 x 200 mm square posts.

Drive and controls:

  • 100% duty cycle rated.
  • 240 V 16 A supply.
  • Anti-tail gate option.
  • Controls housed in the posts with secure steel door.
  • High quality heavy duty hinges incorporating sealed bearings for smooth and long life operation.
  • Hydraulic power pack.
  • Network capability for remote monitoring.
  • PLC design with frequency invertor speed control.


  • Complies with gate safety standard BS EN 13241-1.
  • Hi/Lo safety photocells.
  • Manual release in the event of power failure.
  • Protected with CAT3 safety edges.
  • Safety loops.

Product Options


Typically, the height of the gate is 2400 mm but can be designed to unique requirements with the manufacturer's in house design team.
