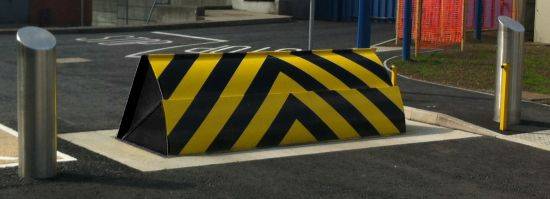

PAS 68 HVM Terra Blocker – 7.5t at 30 mph - HVM Crash Terra Blocker

Verified by manufacturer 1 month ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

PAS 68 HVM Terra Blocker – 7.5t at 30 mph.

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for high security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.

Description

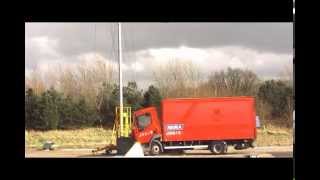

The Terra Blocker has been impact tested to BSi PAS 68 Specification, stopping a 7.5 tonne vehicle travelling at 30 mph. Hydraulically driven hostile vehicle mitigation (HVM) blocker. Classification code: 7.5 t at 30 mph. V/7500[N2]/48/90:0.0/0.0.

The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the road blocker system. Operational speed of 4–6 seconds. Extra fast operation available, contact manufacturer for more information. Blocker foundations are dependent on length requirements, contact manufacturer for more information.


Features and benefits:

  • All made to order with size and safety system options available depending on individual site risk assessments.
  • Compliant with BS EN 13849.
  • Secured by Design and a PSSA verified product.
  • Listed on the CPNI List of IWA 14 and PAS 68 products.

General information

Color

Black

Yellow

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Shape

Other

Guidance for specification option:

Wedge.

Length

Bespoke

Width

Bespoke

Manufacturer guidance

up to 5000mm

Height

810 mm

Warranty description

One year

Uniclass

Pr_25_30_86_72 Rising kerbsPrimary

CAWS

Q41/210 Vehicle flow plates

Q41/212 Vehicle stops

Product range

Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Rising kerbs

Standard

In accordance with PAS68 and PAS69.

Mounting type

Recessed.

Guidance for specification option:

Deep.

Method of operation

Hydraulic.

Dimensions

-

Height

5000 x 810 mm

Guidance for specification option:

Lift height 810 mm.

Span

-

Manufacturer guidance

Insert requirement. 5000 mm maximum.

Material

Steel.

Finish

-

Applied finish

Polyurethane painted.

Guidance for specification option:

Hot zinc sprayed, primed and finished with a final coat of polyurethane paint. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Colour

Black and yellow.

Electrical supply

400 V a.c.

Manufacturer guidance

Three phase.

Accessories

None.

100 mm-diameter red/ green LED traffic light head with monitored safety circuit.

Anti-tamper alarms.

Extra fast operation.

Guidance for specification option:

Contact manufacturer for details.

High Security Cabinet.

Warning sign.

Safety

Not required.

Audible alarms.

Flashing beacons.

Induction loop/ vehicle detector loop system.

Laser.

Show more

Power fail operation

Accumulator.

Guidance for specification option:

Allows a number of operations in power failure mode.

Manual hand pump.

Guidance for specification option:

Standard.

Access control

ANPR – Automatic number plate recognition.

Audio intercom.

Biodegradable oil.

Card reader.

GSM intercom.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Secured By Design

Secured By Design

Secured by Design accredited

Literature

IWA 14 & PAS 68 HVM Terra Blockers

IWA 14 & PAS 68 HVM Terra Blockers
