Park Bearers System

Name: Park Bearers System
Brand: CMS Danskin Acoustics
SKU: gNe5EBBnrcF5uAUrXSZS9E

Verified by manufacturer over a year ago

CMS Danskin Acoustics

Softwood battens, with a 9 mm resilient foam strip adhered to the underside.

Jump to:

+44 (0)1925 577711 Website

Description

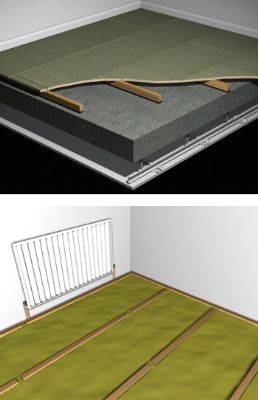

Softwood battens, with a 9 mm resilient foam strip adhered to the underside. They provide an effective method of reducing impact and airborne sound transmission through concrete party floors as part of a dry floating floor construction.

System components:

Park bearers, flanking strips and acoustic quilt.

General information

Size	47 mm nominal wide x 1800 mm long

Uniclass	Pr_20_85_47_04 Acoustic batten cradlesPrimary

Specification data - Acoustic batten cradles

Product Reference	Park Bearers System
Overall height	31 mm 45 mm 49 mm 54 mm 61 mm 70 mm
Flanking strip	Not required Required, height ___ mm

Standard product features	Size: 47 mm nominal wide x 1800 mm long.
Product Options	Flanking Strip: 5 mm thick acoustic foam supplied in rolls 75 m long. Designed for placing around the floor perimeter to prevent airborne sound leakage. Standard height is 100 mm, but increases for high floor elevations.
