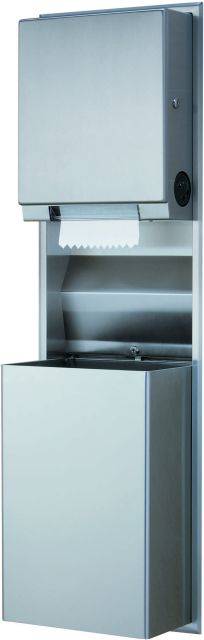

Paper Towel Dispenser and Waste Bin- B-3961, B-39617 and B-39619
Description

Recessed or surface mounted combined dispenser and waste bins. Unit includes touch-free towel module and waste bin module which can be interchanged with an automatic or folded towel module. All-welded construction, seamless, bevelled flange. Removable leak-proof plastic waste container is locked into cabinet.

General information

Uniclass 2015

Pr_40_70_22_62 Paper towel dispensersPrimary

CAWS

N13/442 Paper towel dispensers

Specification data - Paper towel dispensers

Product Reference

B-3961 Recessed Paper Towel Dispenser and Waste Bin

B-39617 Recessed Paper Towel Dispenser and Waste Bin

B-39619 Paper Towel Dispenser and Waste Bin with stainless steel skirt

Accessories:

None

3944-134 LinerMate

For units B-3961 and B-39619 only.

Standard product features

B-3961:

  • Capacity: Core rolls up to 205 mm diameter, 205 mm wide and 244 m long; 45.5 litre waste container.
  • Material: Satin finish stainless steel.
  • Operation: Dispenses one 300 mm length of towel per pull. Door with a full-length stainless steel piano-hinge and keyed tumbler lock.
  • Dimensions: 437 mm wide x 1422 mm high x 230 mm deep (100 mm recess and 130 mm projection).

- B-39617:

  • Capacity: Core rolls up to 205 mm diameter, 205 mm wide and 244 m long; 68.1 litre waste container.
  • Material: Satin finish stainless steel.
  • Operation: Dispenses one 300 mm length of towel per pull. Door with a full-length stainless steel piano-hinge and keyed tumbler lock.
  • Dimensions: 437 mm wide x 1422 mm high x 306 mm deep (100 mm recess and 206 mm projection).

- B-39619:

  • Capacity: Core rolls up to 205 mm diameter, 205 mm wide and 244 m long; 45.5 litre waste container.
  • Material: Satin finish stainless steel.
  • Operation: Dispenses one 300 mm length of towel per pull. Door with a full-length stainless steel piano-hinge and keyed tumbler lock.
  • Dimensions: 445 mm wide x 1430 mm high x 210 mm deep.
