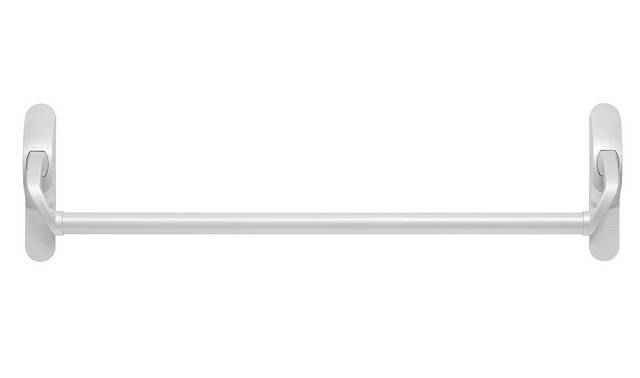

Panic Bar (PBE011-EL520)
Verified by manufacturer 11 months ago
EN 1125 approved panic bar.
Application
Suitable for solid and narrow stile doors, both single- and double leaf versions.
Description
DIN Panic bar for Abloy mechanical and electromechanical lock cases where the bar always opens the door in case of an emergency.
Features and benefits:
- Durability tested at above 1 million cycles, according to EN 1125.
- Compatible design with Abloy new long plates.
- Several finishes available for the fittings.
General information
Color | Silver |
Finish | Chrome Satin Guidance for specification option: Chrome. Brushed Guidance for specification option: Nickel. Antimicrobial Guidance for specification option: Coating - ACTIVE Val/ Mus/ Har/ Gra. |
Material | Steel |

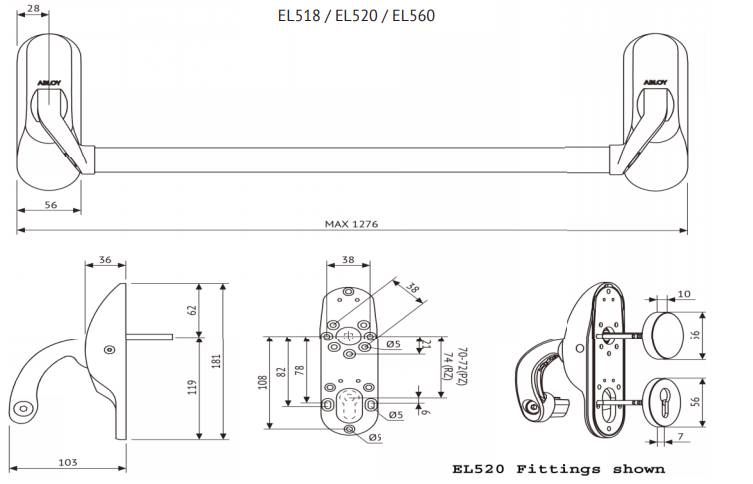

Size | Guidance for specification option: Max length. |
Length | 103 mm |
Width | 1276 mm |
Height | 225 mm |
Uniclass | |
CAWS | P21/32 Panic exit devices P21/577 Panic exit devices |
Specification data - Panic exit devices
Standard | To BS EN 1125. |
Classification grades (minimum) | |
Suitability for use on fire and smoke doors | To BS EN 1125, grade 1. |
Material and finish | Bright chrome plated steel.Satin chrome plated steel.Brushed nickel plated steel.Antimicrobial coating, steel.Guidance for specification option: ACTIVE - Val/ Mus/ Har/ Gra. |
Colour | Self-coloured. |
Execution | Fasteners for hardware. |
Product Reference | Panic Bar (PBE011-EL520) |
Literature
Exit Hardware
