Padel Court - CT101 - Padel Court Fencing

Verified by manufacturer 23 days ago

Fastline Steel Services UK Ltd

The Padel-CT101 '" system complies with LTA guidance in the performance and requirement for Padel Tennis.

Jump to:
+44 (0)1922 623 222 Website

Application

Suitable for use in padel, tennis and other ball sports court applications.

Description

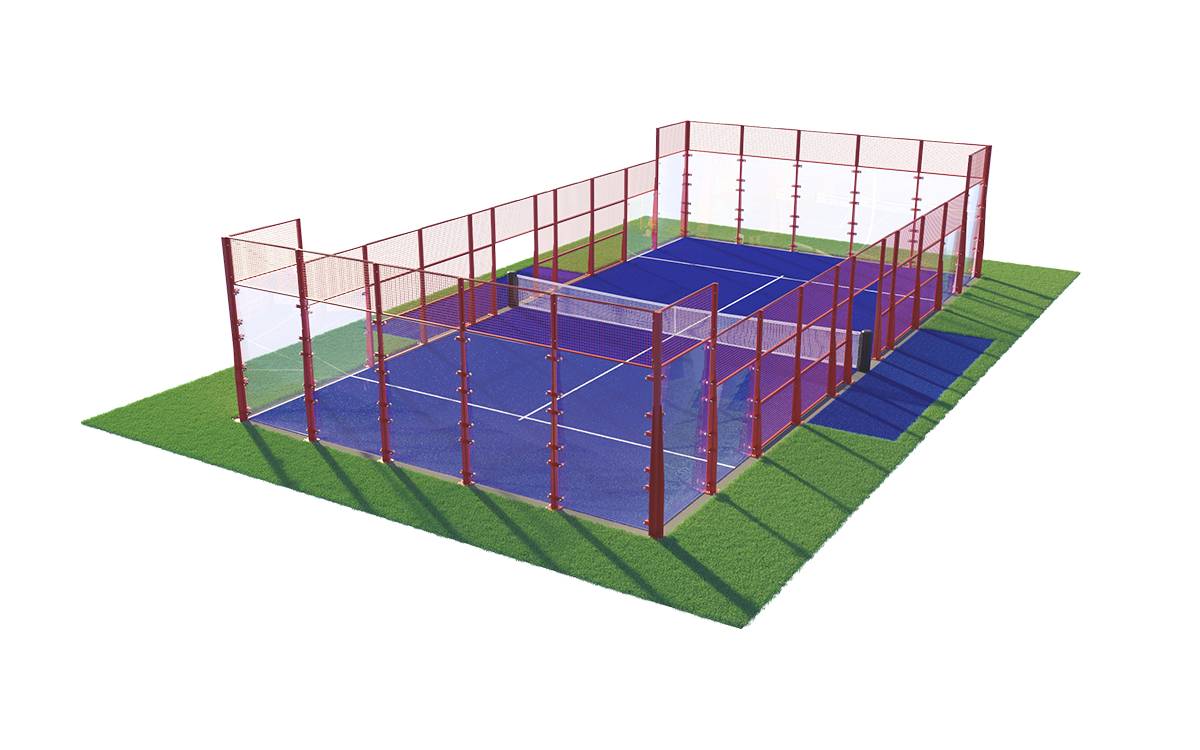

A padel court is defined as area 20 x 10 m enclosed above ground with a combination of glass and weld mesh rebound wall and fence panels supported of steel posts fixed to a concrete foundation with a synthetic turf play surface.

The system incorporates a 50 x 50 mm steel mesh aperture panel system, specially designed to ensure the mesh does not protrude past the structural frame or the posts and the fixing system means that the enclosure can be erected efficiently and quickly.

Glass panels are supplied in line with requirements to the court ends and again, our fixings utilise multi-story glazing technology to ensure the safety and wearing nature of the Padel-CT101 is high standard. Laser cut posts offer a very robust yet aesthetically pleasing structure. Options are available for etching or high grade vinyl logos to the glazing.

Features and benefits:

  • Hot-dip galvanised to B5 EN 10346:2015 and polyester powder coated to B5 EN 13438:2013.
  • The finish colour to your choice with an option for contrasting panel/ post colours to assist with ODA compliance.
  • All items undergo rigorous multi-stage inspections to ensure conformity to standards.
  • Optional vinyl logos.
  • Glazing and mesh surround.
  • All panels in-line.
  • Lawn tennis association (LTA) compliant.
  • Wheelchair accessible.
  • Robust design.

General information

Color

Finish

Powder-coated

Material

Steel

Glass

Other

Shape

Rectangle

Length

20000 mm

Width

10000 mm

Height

4000 mm

Warranty description

Ten year

Uniclass

Ss_25_15_85_55 Multi-use games fencing systemsPrimary

CAWS

Q40/410 Purpose-made fencing

Q52/590 Multi-use games equipment

Q40/125 Open mesh steel panel general-purpose fencing

Q40/27 Open mesh steel panel general-purpose fencing

SKU Code

Padel-CT101

Specification data - Multi-use games fencing systems

Classification data

Posts

Steel posts.

Post foundations

Concrete foundation.

End walls

-

Materials

10 mm Silicate thermally toughened safety glass panels and 50 x 50 steel mesh top panels.

Accessories

Not required.
Vinyl logo.

Guidance for specification option:

Consult manufacturer and insert requirements.

Side panels

-

Materials

50 x 50 mm steel mesh panels.

Guidance for specification option:

World padel tour exists either side of net.

  • Wheelchair accessible.
  • 2.2 m height.

Post finish

Hot-dip galvanized to BS EN 10346 and polyester powder coated to BS EN 13438.

Panel finish

Hot-dip galvanized to BS EN 10346 and polyester powder coated to BS EN 13438.

Metal frame colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Steel post colour.

Cover panel colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Mesh panel colour.

Floor surface

Synthetic turf play surface, colour.

Guidance for specification option:

Most colours can be supplied - consult manufacturer for options and insert requirements.

Other.

Guidance for specification option:

Consult manufacturer and insert requirements.

Integral accessories

Padel net.

Guidance for specification option:

Professional padel net of 45 mm high-leniency polypropylene mesh and 100 mm canvas upper.

Dimensions

20 x 10 x 4 m.

Guidance for specification option:

Length x width x maximum height.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Steel
Glass
Other

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

96 %

Expected Life

20 year

Literature

DATA - fastline_padel-court-CT101

DATA - fastline_padel-court-CT101

Case studies

Phase 1 Complete: Bespoke Fencing Solution for The Padel Club, Manchester

Phase 1 Complete: Bespoke Fencing Solution for The Padel Club, Manchester
