P32AR LT 32 zone PROFILE Lite AC Repeater - Fire Alarm Panel
Verified by manufacturer 4 months ago
Certificate of Approval
Certificate type
AC powered repeater with 32 zonal LEDs.
Application
Suitable for small to mid-size systems, including hotels, commercial offices and healthcare environments in addition to industrial and manufacturing facilities.
Description
AC powered repeater with a colour LCD display and 32-LED zonal display.
Features and benefits:
- AC powered.
- Colour LCD display.
- 32 zonal LEDs.
- Simple to operate user interface.
- Easy-mount frame.
General information
Color | Grey |
Finish | Matt |
Material | Steel |
Shape | Rectangle |
Length | 140 mm Manufacturer guidanceDepth. |
Width | 410 mm |
Height | 480 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Specification data - Fire alarm panels
Standby power supply | |
Capacity | 230 V a.c., 47/63 Hz, 0.9 A. |
Main display | Colour LCD display. |
Zone indication | Individual LED status indicators, 32 zonal LEDs. |
Printer | Not required. |
Outputs | Output to fire alarm devices. |
Enclosure | |
Ingress protection (minimum) | IP 30. |
Colour | Grey.Guidance for specification option:
|
Mounting | Surface. |
Battery capacity | 17 Ah. |
Operating temperature | -5°C to +40°C. |
Minimum storage temperature | -20°C to +70°C. |
RelativeHumidity | 95% RH, continuous (non-condensing). |
Dimensions | 480 x 410 x 140 mm. |
Weight | 8.5 kg. Manufacturer guidance(Excluding batteries). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Material | Steel |
Manufacturing plant location | |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications

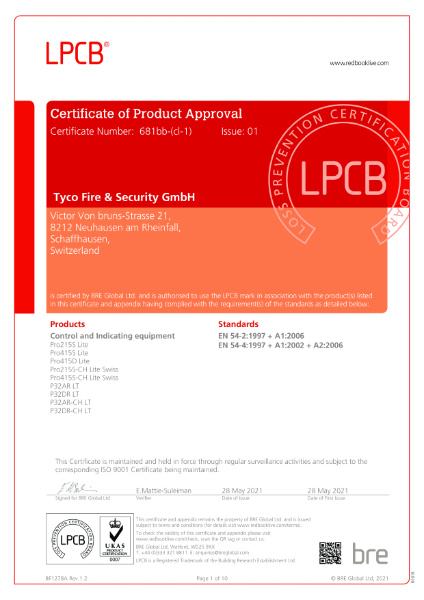

Certificate of Approval
P32AR LT Certificate
Literature
Profile Flexible & Lite Range
