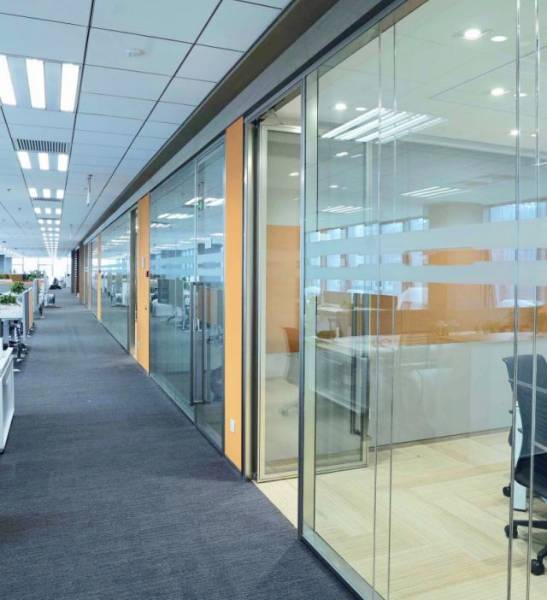

P100 System
Demountable partition system with 100 mm aluminium framework.
Suitable for use in office spaces and other large communal areas.
Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.
Demountable partition system with 100 mm aluminium framework.
Features and benefits:
- Flush, frameless system.
- Available both single and double glazed; and glass thicknesses of 10–12.8 mm can be specified.
- Supplied with a 100 mm aluminium framework.
- Various door options are available.
- Supplied with an engineered transom.
Applications:
Suitable for use in office spaces and other large communal areas.
Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.
| Uniclass 2015 | |
| CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
| Product Reference | P100 SystemP100 Brooklyn System |
| Module size | Standard module size: 200–1200 mm. Maximum height: 3000 mm. Consult manufacturer and insert requirements. |
| Glazing | - |
| Type | Double glazedSingle glazed |
| Thickness/ Material | 10 mm clear float toughened10 mm low iron toughened10.8 mm acoustic laminated12 mm clear float toughened12 mm low iron toughened12.8 mm acoustic laminated |
| Head channel | - |
| Deflection | ±15 mm |
| Finish | Aluminium anodized |
| Base channel | - |
| Finish | Aluminium anodized |
| Door | 44 mm timber doorFor double glazed partitions only. Supplied with offset pivot hinge and lever handle. 54 mm timber doorFor double glazed partitions only. Supplied with offset pivot hinge and lever handle. Double glazed pivot doorDouble glazed sliding doorFor double glazed partitions only. Double glazed with internal blindSingle glazed frameless doorFor double glazed partitions only. Supplied with 12 mm toughened glass and offset pivot. Single glazed pivot doorSupplied with 12 mm toughened glass and lever handle. Available centred or offset; insert requirements. Solid panelFor double glazed partitions only. Vacuum sealed door, standard panelFor double glazed partitions only. Sealed unit with offset pivot and lever handle. Achieves Rw 36 dB acoustic performance. Vacuum sealed door, technical panelFor double glazed partitions only. Sealed unit with offset pivot and lever handle. Achieves Rw 36 dB acoustic performance. |
| Dry joints | Consult manufacturer and insert requirements. |
| Wall abutment | Consult manufacturer and insert requirements. |
| Standard product features | Head/ Base channel: 100 x 78 mm. Thickness: 100 mm. Acoustic performance: - Double glazed:
|
| Product Options | Module size: Other glass sizes are available, consult manufacturer for details. Head/ Base channel: - Finish: Different finishes are available on request, consult manufacturer for details. |
