Application

Suitable for use in office spaces and other large communal areas.

Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.

Description

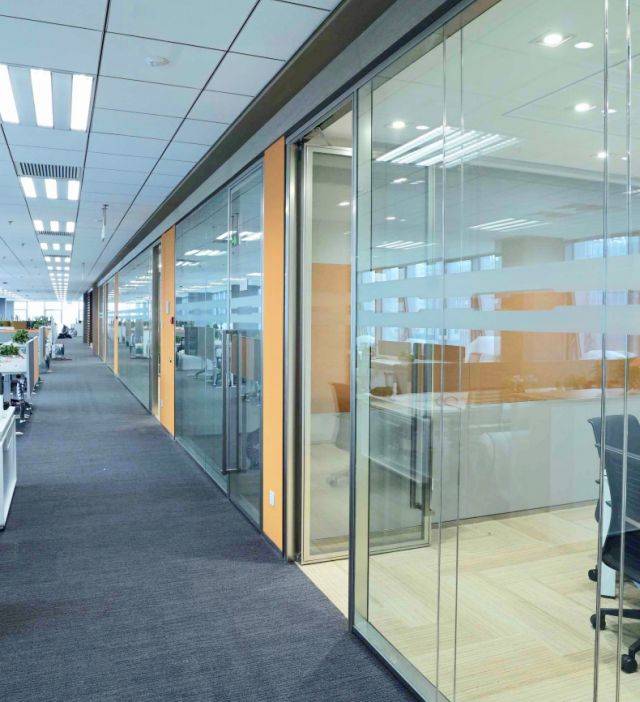

Demountable partition system with 100 mm aluminium framework.

Features and benefits:

  • Flush, frameless system.
  • Available both single and double glazed; and glass thicknesses of 10–12.8 mm can be specified.
  • Supplied with a 100 mm aluminium framework.
  • Various door options are available.
  • Supplied with an engineered transom.

Applications:

Suitable for use in office spaces and other large communal areas.

Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.

General information
Specification data - Plasterboard panel partition systems
Product Reference

P100 System

P100 Brooklyn System

Module size

Standard module size: 200–1200 mm. Maximum height: 3000 mm. Consult manufacturer and insert requirements.

Glazing -
Type

Double glazed

Single glazed

Thickness/ Material

10 mm clear float toughened

10 mm low iron toughened

10.8 mm acoustic laminated

12 mm clear float toughened

12 mm low iron toughened

12.8 mm acoustic laminated

Head channel -
Deflection

±15 mm

Finish

Aluminium anodized

Base channel -
Finish

Aluminium anodized

Door

44 mm timber door

For double glazed partitions only. Supplied with offset pivot hinge and lever handle.

54 mm timber door

For double glazed partitions only. Supplied with offset pivot hinge and lever handle.

Double glazed pivot door

Double glazed sliding door

For double glazed partitions only.

Double glazed with internal blind

Single glazed frameless door

For double glazed partitions only. Supplied with 12 mm toughened glass and offset pivot.

Single glazed pivot door

Supplied with 12 mm toughened glass and lever handle. Available centred or offset; insert requirements.

Solid panel

For double glazed partitions only.

Vacuum sealed door, standard panel

For double glazed partitions only. Sealed unit with offset pivot and lever handle. Achieves Rw 36 dB acoustic performance.

Vacuum sealed door, technical panel

For double glazed partitions only. Sealed unit with offset pivot and lever handle. Achieves Rw 36 dB acoustic performance.

Dry joints

Consult manufacturer and insert requirements.

Wall abutment

Consult manufacturer and insert requirements.

Standard product features

Head/ Base channel:

100 x 78 mm.

Thickness:

100 mm.

Acoustic performance:

- Double glazed:

  • 10 + 12 mm toughened glass: Rw 45 dB.
  • 12.8 mm acoustic laminated: Rw 50 dB.

Product Options

Module size:

Other glass sizes are available, consult manufacturer for details.

Head/ Base channel:

- Finish:

Different finishes are available on request, consult manufacturer for details.
