P-Gate

Verified by manufacturer 2 months ago

Polybar Group

Designed to provide a safe entry/ exit point for protected pedestrian walkways.

Jump to:
+353892546217 Website

Application

For dividing vehicle and pedestrian traffic zones.

Description

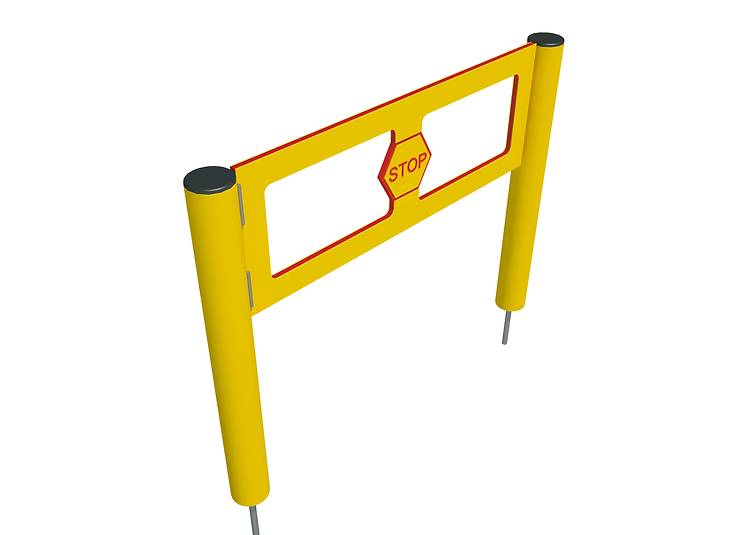

The P-Gate is designed to divide vehicle and pedestrian traffic zones to provide a safe entry/ exit point. It can be supplied with a P-Bollard or two P-Bollards as a system to provide a fully enclosed walkway. The gate hinge is designed to swing in both directions however, a stop-piece can be installed to enable opening in a single direction.


Features and benefits:

  • High-performance synthetic polymer designed to deflect and safely absorb impacts.
  • An added piece of visual and physical protection at a critical workplace interface.
  • Available in yellow (RAL 1021) as standard, and black (RAL 9004) with other non-standard colours available on request.
  • Bespoke branding capability.
  • Single 'hidden' steel threaded rod anchoring system.
  • Hygienic and easy to clean and maintain
  • Zero exposed steel or risk of exposed corrosion.
  • High resistance against acids, alkali, and solvents.
  • Typically 40% recycled polymer content.
  • 100% recyclable at end-of-life.
  • Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
  • Compliments Polybar’s range of rail systems.

General information

Color

Yellow

Black

Other

Finish

Smooth

Material

Polymer

Steel

Shape

Circle

Length

1100 mm

Width

20 mm

Height

400 mm

Uniclass

Ss_25_32_35_37 Hinged gate systemsPrimary

CAWS

Q40/45 Gates

Q40/570 Gates

Specification data - Hinged gate systems

System performance

Accessibility.

Method of operation

Manual.

Gate assembly

High-performance synthetic polymer gate.

Post foundations

-

Manufacturer guidance

Insert requirements.

System accessories

Not required.

One P-bollard.

Two P-bollards.

Stop-piece.

Steel reinforcement

Robust steel rod anchoring system.

Length

1100 mm.

Height

400 mm.

Thickness

20 mm.

Colour

Black, RAL 9004.

Yellow, RAL 1021.

Other.

Guidance for specification option:

Other colours are available subject to minimum order size.

Consult manufacturer for details and insert requirements.

Density

0.95 g/cm³.

YieldStress

28 N/mm².

Manufacturer guidance

Yield stress to DIN EN ISO 527.

Elongation at break

300%.

Tensile Modulus

850 MPa.

Manufacturer guidance

Tensile E modulus to DIN EN ISO 527.

Shore Hardness - D

66 N/mm².

Thermal conductivity (maximum)

0.38 W/m.K.

Application temperature range

-100 to +80℃.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Polymer

Steel

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Typically 40% recycled polymer content.

Expected Life

40 year
