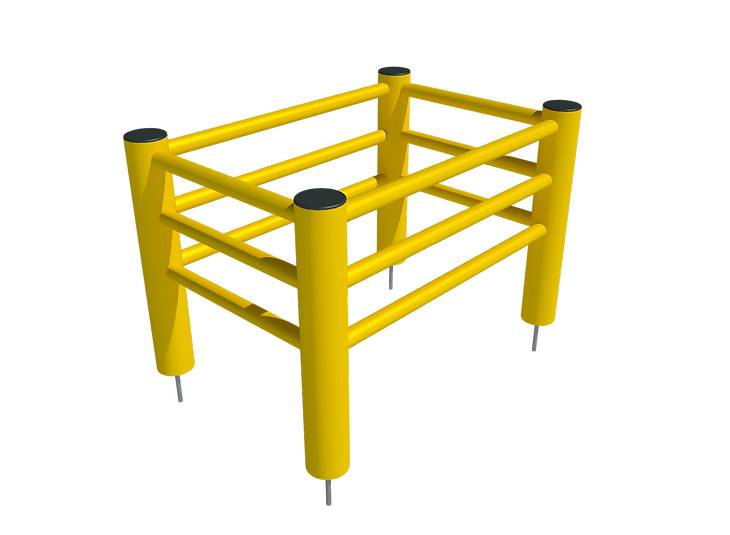

P-FLEX Column Protection - Perimeter Protection System
Verified by manufacturer 3 months ago
High-performance flexible synthetic polymer column protection for structural columns in industrial and commercial buildings.
Application
Suitable to protect structural steel / concrete columns in industrial and commercial buildings.
Description
The P-FLEX Column Protection is an integrated system designed and manufactured to suit different types of columns or vertical structural elements. It’s typically 1100 mm high and is not attached to the column therefore offering a deflection zone without applying any force to a structural column upon impact.
Features and benefits:
- P-FLEX High-Performance flexible protection technology designed to deflect, and safety absorb impacts.
- Available in various heights and thicknesses.
- Available in yellow (RAL 1021) as standard, and black (RAL 9004) with other non-standard colours available on request.
- Bespoke branding available upon request.
- Single 'hidden' steel threaded rod anchoring system.
- Hygienic and easy to clean and maintain
- Zero exposed steel or risk of exposed corrosion.
- High resistance against acids, alkali, and solvents.
- Typically 40% recycled polymer content.
- 100% recyclable at end-of-life.
- Tested to BS EN 1186-2:2002 and BS EN 1186-3:2002 for food contact.
- Tested to BS EN ISO 4892-2:2014 for UV Resistance – Zero Discoloration.
General information
Color | Yellow Black Other |
Finish | Smooth |
Material | Polymer Steel |
Shape | Circle Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | 1100 mm |
Uniclass | |
CAWS | Q41/130 Protective barriers Q41/130 Protective barriers |
Specification data - Column guards
Material | High performance synthetic polymer. |
Column protector width | To suit columns.Guidance for specification option: Consult manufacturer and insert requirements. |
Column protector height | 1100 mm. |
Colour | Black, RAL 9004.Yellow, RAL 1021.Other.Guidance for specification option: Other colours are available subject to minimum order size. Consult manufacturer for details and insert requirements. |
Fixings | Anchor nut. |
Accessories | Neoprene seal and PVC sleeve. |
Steel reinforcement | Robust steel threaded rod anchoring system. |
Impact resistance | 26 900 joules. Guidance for specification option: Tested on the core used to anchor the vertical sections. Manufacturer guidanceDynamic Impact Test. Tested Impact Energy @ 90°. |
Density | 0.95 g/cm³. |
YieldStress | 28 N/mm². Manufacturer guidanceYield stress to DIN EN ISO 527. |
Elongation at break | 300%. |
Tensile Modulus | 850 MPa. Manufacturer guidanceTensile E modulus to DIN EN ISO 527. |
Shore Hardness - D | 66 N/mm². |
Thermal conductivity (maximum) | 0.38 W/m.K. |
Application temperature range | -100 to +80℃. |
Integral accessories | Built-in reinforcement arms. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Polymer Steel |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Typically 40% recycled polymer content. |
Expected Life | 40 year |
Literature
Polybar P-FLEX Column Protection Technical Data Sheet
