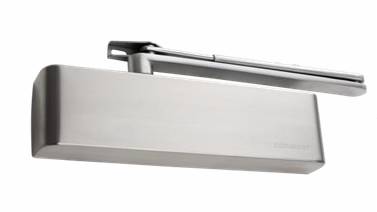

Overhead Door Closer (CDC750) - Door Closers
Verified by manufacturer 3 days ago
EPD
Certificate type
Certificate of constancy of performance
Certificate type
Certifire Certificate
Certificate type
A single-action overhead door closer for right and left closing doors, allowing opening up to 180°.
Application
Suitable for timber and metal doors and frames.
Description
An overhead door closer with adjustable closing speed and latching action, capable of opening up to 180°, suitable for timber and metal door and frame applications.
Features and benefits:
- Power size of 2–5.
- Suitable for door leaves up to 110 kg in weight and 1250 mm width.
- Adjustable closing speed and latching action.
- Opening angle up to 180°.
- Available in various options and finishes.
- Tested to BS EN 1154.
- Fire tested to BS EN 1634-1.
General information
Color | Black Grey Bronze Silver Gold |
Finish | Satin Polished Matt Chrome |
Material | Stainless steel Nickel |
Shape | Rectangle |
Length | 40.5 mm |
Width | 268.6 mm |
Height | 70.1 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | L20/420 Wood doorsets P21/410 Controlled door closers P21/12 Controlled door closers |
SKU Code | CDC750 |
Specification data - Controlled door closers
Classification data | |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 8. |
Door closer power size | Adjustable 2–5. |
Suitability for use on fire and smoke doors | 1. Manufacturer guidanceTimber door and frame: FD120. Metal door and frame: FD120. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face-fixed. |
Closer functions | Controlled closing and latching. |
Materials and finishes | |
Bodies | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Arms | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Casings | SSS - Satin stainless steel. PSS - Polished stainless steel. PGD - Polished gold. SNP - Satin nickel plate. PC - Polished chrome. BLK - Matt black. BRZ - Bronze. Other. Guidance for specification option: Other finishes available upon request. Consult manufacturer for details and insert requirements. |
Colour | As casings. |
Fasteners for hardware | As supplied. |
Options | Not required. Adjustable backcheck. Delayed action. Guide rail arm. Hold open arm (non-fire rated). |
Fire resistance | To BS EN 1634-1. Guidance for specification option: Timber door and frame: FD120. Metal door and frame: FD240. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Nickel |
